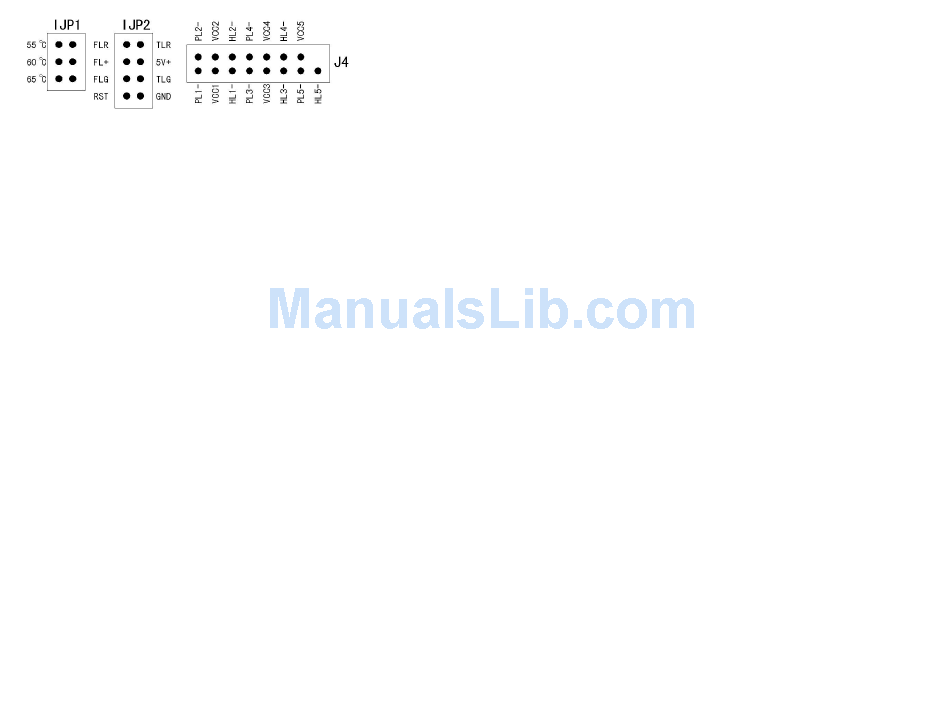

lJP1: Temperature setting jumper
lJP2 & J4: Extension function jumper
FLR: Fan failure detection (red)
FL+: Fan failure detection (+)
FLG: Fan failure detection (green)
RST: Reset Switch for buzzer alarm and Overheating LED
TLR: Temperature detection (red)
5V+: 5V Power
TLG: Temperature detection (green)
GND: Grounded
PL1- • PL5-:
Ext Power LED detection (-)
HL1- • HL5-:
Ext HDD LED detection (-)
VCC1- • VCC5-: Ext 5V Power (+)
