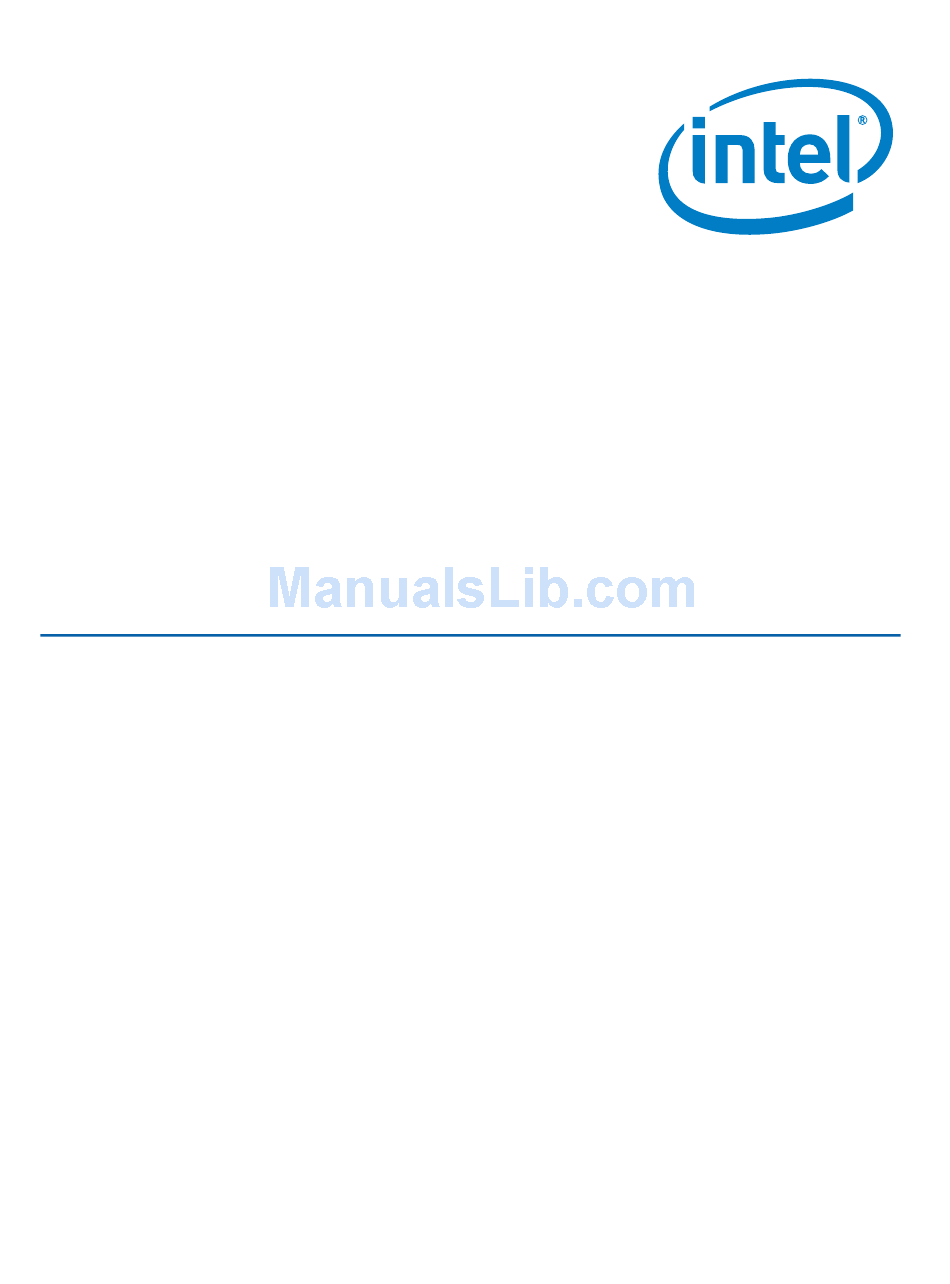

Intel® 600SM PCI Phone Adapter
User's Guide
Order Number: D61185-001US

Advertisement

Table of Contents
loading

Related Manuals for Intel 600SM

Summary of Contents for Intel 600SM

  • Page 1 Intel® 600SM PCI Phone Adapter User’s Guide Order Number: D61185-001US...

  • Page 2: Revision History

    • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to the equipment not expressly approved by Intel Corporation could void the user’s authority to operate the equipment. Tested to comply with FCC standards for home or office use.
  • Page 3 600SM PCI Phone Adapter may be provided by third parties other than Intel (“Third Party Software”). Your rights to use the Third Party Software are governed by the license agreements that accompany such components. Intel does not warrant such Third Party Software in any way and assumes no liability for your use of the Third Party Software.
  • Page 4 Intel 600SM PCI Phone Adapter User’s Guide...

  • Page 5: Document Organization

    600SM PCI Phone Adapter. ® Document Organization The chapters in this User’s Guide are arranged as follows: Installing the Intel® 600SM PCI Phone Adapter Card: instructions on how to install the PCI phone adapter card Setup: Intel 600SM PCI Phone...

  • Page 6: System Requirements

    Intel 600SM PCI Phone Adapter User’s Guide System Requirements ® • One of the following Intel Desktop Boards: D945GNT/D945GCZ/D945GTP/D945GPM/D945GBO/D945PLNM/D915PDT/D101GGC/ D102GGC2/D865GSA • One of the following operating systems: ⎯ Microsoft Windows* XP Professional ⎯ Microsoft Windows XP Home Box Contents •...

  • Page 7: Table Of Contents

    Phone Adapter Handling Precautions................9 Installing the Phone Adapter Hardware ..............10 Connecting the Phone Adapter to the Telephone ............. 11 2 Setup: Intel 600SM PCI Phone Adapter Installing the Phone Adapter Drivers in Microsoft Windows XP........13 Phone Adapter Country/Region Settings..............14 Uninstalling the Phone Adapter in Windows* XP ............
  • Page 8 Intel 600SM PCI Phone Adapter User’s Guide viii...

  • Page 9: Installing The Intel 600Sm Pci Phone Adapter Card

    1 Installing the Intel 600SM PCI Phone ® Adapter Card CAUTION Electrostatic discharge (ESD) can damage the PCI Phone Adapter Card components. Install the PCI card at an ESD-controlled workstation. If such a workstation is not available, wear an antistatic wrist strap or touch the surface of the antistatic package before handling the card.

  • Page 10: Installing The Phone Adapter Hardware

    Intel 600SM PCI Phone Adapter User’s Guide Installing the Phone Adapter Hardware To install the PCI Phone Adapter card: 1. Turn off the computer and unplug the AC power cord. Remove the cover. 2. Locate an unused PCI slot. 3. If necessary, remove the coverplate from the open slot. Save the screw.

  • Page 11: Connecting The Phone Adapter To The Telephone

    Connecting the Phone Adapter to the Telephone CAUTION Do not directly connect the Intel 600SM Phone Adapter card to a telephone wall jack. The phone adapter will not function properly until it is disconnected from the telephone wall jack and the computer is rebooted.
  • Page 12 Intel 600SM PCI Phone Adapter User’s Guide...

  • Page 13: Setup: Intel 600Sm Pci Phone Adapter Installing The Phone Adapter Drivers In Microsoft Windows Xp

    2. When the New Hardware Wizard appears, click Cancel. 3. Place the Intel Express Installer CD into your computer’s CD-ROM drive. 4. When the Intel Express Installer window appears, accept the default settings and click Install Now. 5. Follow the installation messages that appear.

  • Page 14: Phone Adapter Country/Region Settings

    Phone Adapter Country/Region Settings To change the country/region settings for your phone adapter, do the following: 1. Open Windows Device Manager, double-click Sound, video and game controllers, and then right-click Intel(R) 600SM PCI Phone Adapter to access the Properties dialog box.
  • Page 15 Setup: Intel 600SM PCI Phone Adapter 2. From the Properties dialog box, click the Country/region tab. This tab provides access to a menu of selectable country names, which will indicate to the driver to use a country-specific signaling profile. Select the appropriate country/region and click OK.

  • Page 16: Uninstalling The Phone Adapter In Windows* Xp

    To uninstall the modem in Windows XP: 1. Open Windows Device Manager, double-click Sound, video and game controllers, right- click Intel(R) 600SM PCI Phone Adapter, and then select Uninstall. 2. Follow the uninstall instructions that appear. For help with using Windows Device Manager, refer to your Windows help system.

  • Page 17: Making A Call Using The Pci Phone Adapter

    3 Making a Call Using the PCI Phone Adapter To make a call using the PCI phone adapter: • Refer to the instructions provided by your softphone service. Instructions for making calls using the phone adapter may vary depending on your softphone service. •...
  • Page 18 Intel 600SM PCI Phone Adapter User’s Guide The SoftPhone Agent Pop-up Menu Once you have installed the phone adapter software, the system tray will display the following icon for the SoftPhone Agent. Right-click the softphone agent icon to view a popup menu which displays the status of Skype, allows you to request whether the SoftPhone Agent will run at startup, and allows you to exit the SoftPhone Agent.

  • Page 19: Advanced Features

    4 Advanced Features ® The Intel 600M PCI Phone Adapter supports a number of advanced features including Caller ID (Type I and Type II), Call Waiting, and Conference Calling. Caller ID Features Type I Caller ID allows you to view the phone number of an incoming call on the Caller ID screen.
  • Page 20 Intel 600SM PCI Phone Adapter User’s Guide When using these features, you must wait for a dial tone after performing a hook flash. Once you hear a dial tone, you may press the appropriate call control number on your phone keypad.

  • Page 21: Troubleshooting

    5 Troubleshooting The phone adapter was plugged into a telephone wall jack by mistake If you connected the phone adapter to a telephone wall jack, do the following: 1. Turn off the computer. 2. Disconnect the phone adapter from the telephone wall jack and connect it to a standard telephone (for detailed instructions, see page 11).

  • Page 22: Skype-Related Issues

    Intel 600SM PCI Phone Adapter User’s Guide Skype-related Issues Skype does not allow the SoftPhone Agent to use Skype If you see the following popup message, “Request to access Skype was denied. Please check Skype Options and restart the SoftPhone Agent” then the SoftPhone Agent has been blocked by Skype.
  • Page 23 Troubleshooting 3. Select IADAPT32.EXE (as shown below), click Change, and then click OK. 4. When the following window appears, select Allow this program to use Skype, and then click OK. You will now be able to use Skype with your phone adapter.
  • Page 24 Intel 600SM PCI Phone Adapter User’s Guide...

  • Page 25: A Regulatory Compliance

    Product certifications European Union Declaration of Conformity Statement We, Intel Corporation, declare under our sole responsibility that the product Intel 600SM PCI Phone Adapter is in conformity with all applicable essential requirements necessary for CE marking, following the provisions of the European Council Directive 89/336/EEC (EMC Directive) and Council Directive 73/23/EEC (Safety/Low Voltage Directive).

  • Page 26: Product Ecology Statement

    Intel 600SM PCI Phone Adapter User’s Guide Portuguese Este produto cumpre com as normas da Diretiva Européia 89/336/EEC & 73/23/EEC. Español Este producto cumple con las normas del Directivo Europeo 89/336/EEC & 73/23/EEC. Slovensky Tento produkt je v súlade s ustanoveniami európskych direktív 89/336/EEC a 73/23/EEC.

  • Page 27: Electromagnetic Compatibility (Emc) Regulations

    Regulatory Compliance Electromagnetic Compatibility (EMC) Regulations Intel 600SM PCI Phone Adapter complies with the EMC regulations stated in Table 2 when correctly installed in a compatible host system. Table 2. EMC Regulations Regulation Title FCC Class B Title 47 of the Code of Federal Regulations, Parts 2 and 15, Subpart B, Radio Frequency Devices.

  • Page 28: Product Certifications

    Intel 600SM PCI Phone Adapter User’s Guide Product Certifications Board-Level Certification Markings Intel 600SM PCI Phone Adapter has the following product certification markings: Table 3. Product Certification Markings Description Mark UL joint US/Canada Recognized Component mark. Includes adjacent UL file number for Intel desktop boards: E210882.
