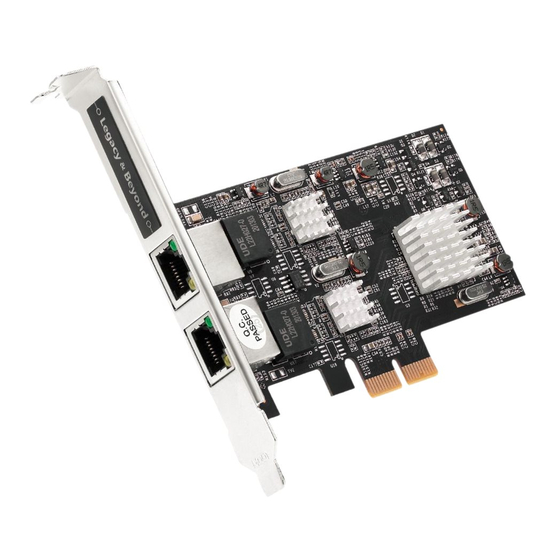

Intel PCIe 2-Port 2.5G 4-Speed
Multi-Gigabit Network Adapter
User Manual
Ver. 1.00
All brand names and trademarks are properties of their
respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCIe 2-Port 2.5G 4-Speed and is the answer not in the manual?

Questions and answers

Summary of Contents for Intel PCIe 2-Port 2.5G 4-Speed

  • Page 1 Intel PCIe 2-Port 2.5G 4-Speed Multi-Gigabit Network Adapter User Manual Ver. 1.00 All brand names and trademarks are properties of their respective owners.
  • Page 2 Contents: Chapter 1: Introduction ............3 1.1 Features ................ 3 1.2 Systems Requirements ..........3 1.3 Package Contents ............3 Chapter 2: Getting Started ..........4 2.1 Hardware Layout ............4 2.2 Hardware Installation ..........5 2.3 Driver Installation ............6 2.3.1 Getting software driver .........
  • Page 3 ⚫ Supports WOL 1.2 Systems Requirements ⚫ Windows 10 RS5 or later (64-bit) ⚫ Linux kernel 5.8 later 1.3 Package Contents ⚫ 1 x Intel PCIe 2-Port 2.5G 4-Speed Multi-Gigabit Network Adapter ⚫ 1 x User Manual MN5000000087 Page 3...
  • Page 4 Chapter 2: Getting Started 2.1 Hardware Layout Link/Activity Indicator: ⚫ When the LED is off, there is no link between the Intel PCIe 2-Port 2.5G 4-Speed Multi-Gigabit Network Adapter and the network. ⚫ When the LED is on, a link is established, but there is no traffic on the network.
  • Page 5 Link Speed Indicator: ⚫ Orange: The LED indicators lights orange when a 2.5 Gbps device is connected to the adapter. ⚫ Green: The LED indicator lights green when a 1Gbps device is connected to the adapter ⚫ Off: The LED indicator turns off when a 100Mbps/ 10Mbps device is connected to the adapter 2.2 Hardware Installation Turn off the power to your computer.
  • Page 6 2.3 Driver Installation 2.3.1 Getting software driver Navigate to www.sunrichtech.com.hk and enter ordering code (N-700) in the search field. Click the "Manual & Download" tab. Click "Download Drivers". Extract the content of the downloaded file into a folder for driver installation.
  • Page 7 2.4.1 Verifying for Windows Click on the “Device Manager” tab in the Windows Control Panel. Start > Windows> Control Panel > Device Manager Expand "Network adapters", you can read “Intel(R) Ethernet Controller I255-V” in the Device Manager. MN5000000087 Page 7...
