User-Defined Profile; Establishing A Connection; Ending A Connection - D-Link DWM-152 User Manual

Section 3 - Basic Functions

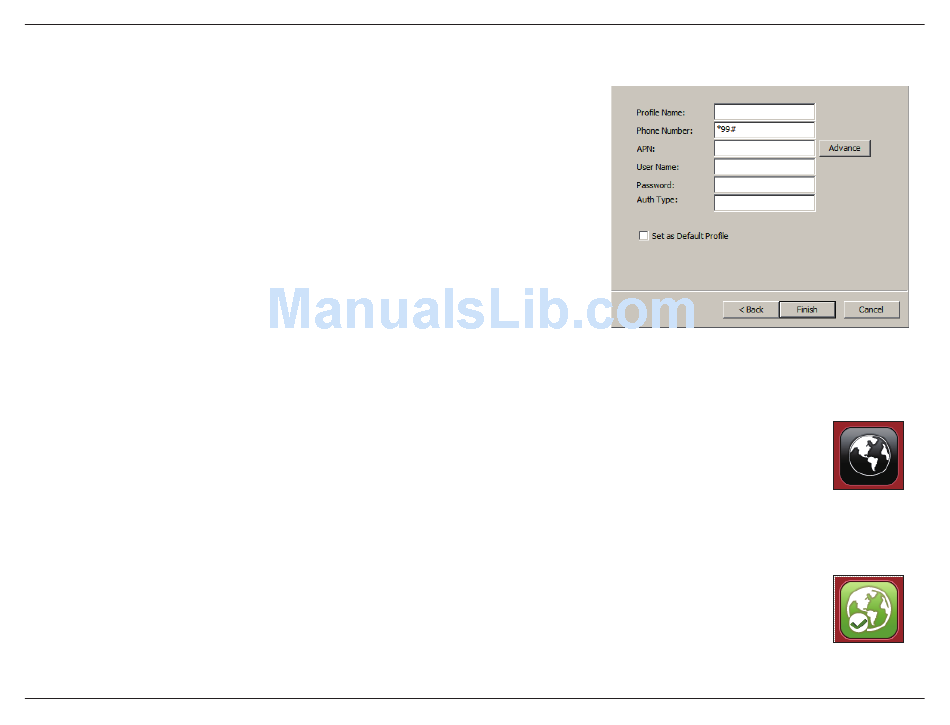

1. Fill in the Profile Name, Phone Number, APN, User Name,
Password, and Authorization Type.
Finish to complete.
2. Click
Advanced button to display APN details.
3. Click the
4. Highlight an APN and click
5. Click Next to continue.
The Connect/Disconnect button will be black when you are offline. You can click the Connect button
to connect to the network via the default profile. After you are connected, the button will turn green
with a checkmark. Once connected, you can use the mobile service network to browse the Internet,
send e-mail, send text messages, and perform other tasks online.
If you wish to disconnect, click the button again, and the button will turn black to indicate you have
successfully disconnected and are offline.
D-Link DWM-152 User Manual

User-Defined Profile

OK.

Establishing a Connection

Ending a Connection

Connect
Disconnect
14
