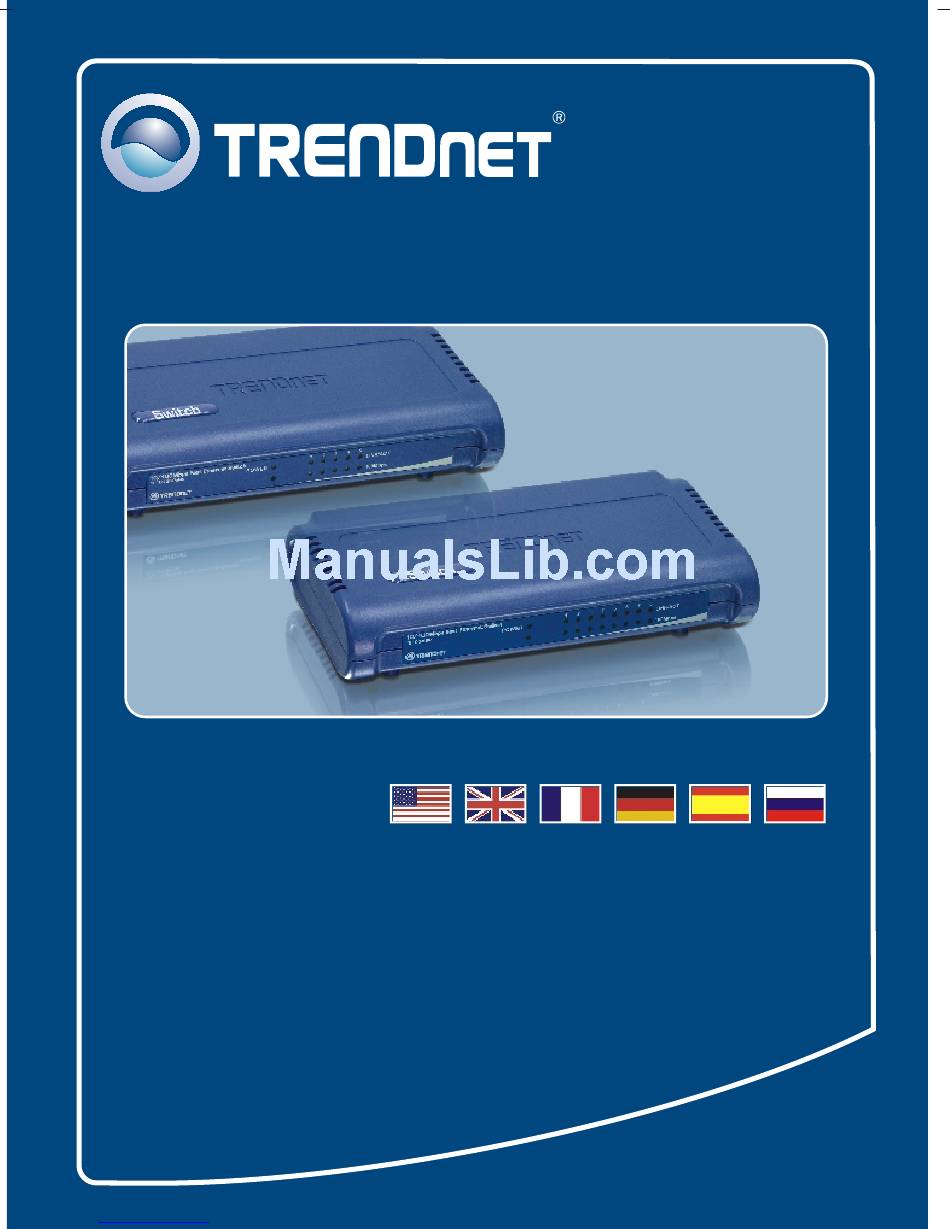

- Page 1 Quick Installation Guide TE100-S5Pplus TE100-S8P Downloaded from www.Manualslib.com manuals search engine...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Español ....................... 1. Antes de iniciar ................... 2. Instalación del Hardware ..............Technical Specifications ................Troubleshooting ..................Version 07.26.2006 Downloaded from www.Manualslib.com manuals search engine... -
Page 3: Español
1. Antes de iniciar Contenidos del paquete TE100-S5Pplus/TE100-S8P Guía de instalación rápida Adaptador de alimentación AC Requisitos del sistema Un PC con adaptador de red instalado correctamente. La superficie debe soportar al menos 0.5 Kg para el conmutador. La toma de corriente debe estar a 1.82 metros (6 pies) del conmutador. Inspeccione visualmente el jack de corriente DC para comprobar que está... -
Page 4: Instalación Del Hardware
2. Instalación del Hardware 1. Conecte el adaptador de alimentación AC al TE100-S5Pplus/TE100-S8P y luego a una toma de corriente. 2. Conecte un cable de red RJ-45 CAT-5 del PC a un puerto Ethernet disponible en el TE100-S5Pplus/TE100-S8P. La instalación ha sido completada Español Downloaded from www.Manualslib.com... -
Page 5: Technical Specifications
Technical Specifications General IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet Standards ANSI/IEEE 802.3 NWay Auto-negotiation IEEE 802.3x Full-Duplex Flow Control Protocol CSMA/CD Ethernet: 10Mbps (Half-Duplex), Data Transfer Rates 20Mbps (Full-Duplex) Fast Ethernet: 100Mbps (Half-Duplex), 200Mbps (Full-Duplex) Topology Star Ethernet: UTP/STP CAT-3, 4, 5 Network Cables Fast Ethernet: UTP/STP CAT-5, 5e , 6... - Page 6 Physical and Environmental DC inputs DC 7.5V 1A TE100-S5Pplus: 2.5W (Max.) Power Consumption TE100-S8P: 2.8W (Max.) Temperature Operating: 0 ~ 40 C, Storage: -10 ~ 70 C ° ° ° ° Humidity Operating: 10% ~ 90%, Storage:5% ~ 90% TE100-S5Pplus: 165 x 73 x 33 mm Dimensions (L x W x H) TE100-S8P: 165 x 73 x 33 mm TE100-S5Pplus: 145g...
-
Page 7: Troubleshooting
The Switch was not designed to share Internet between multiple computers. You need to get an Internet router. If you still encounter problems or have any questions regarding the TE100-S5Pplus/TE100-S8P please contact Trendnet's Technical Support Department. Downloaded from www.Manualslib.com manuals search engine... - Page 8 Return Material Authorization (RMA) number, accompanied by a copy of the dated proof of the purchase. Products returned to TRENDnet must be pre- authorized by TRENDnet with RMA number marked on the outside of the package, and sent prepaid, insured and packaged appropriately for safe shipment.
- Page 9 ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF TRENDNET’S PRODUCTS. TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S...
- Page 10 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 11 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 20675 Manhattan Place Torrance, CA 90501 Copyright ©2006. All Rights Reserved. TRENDnet.
