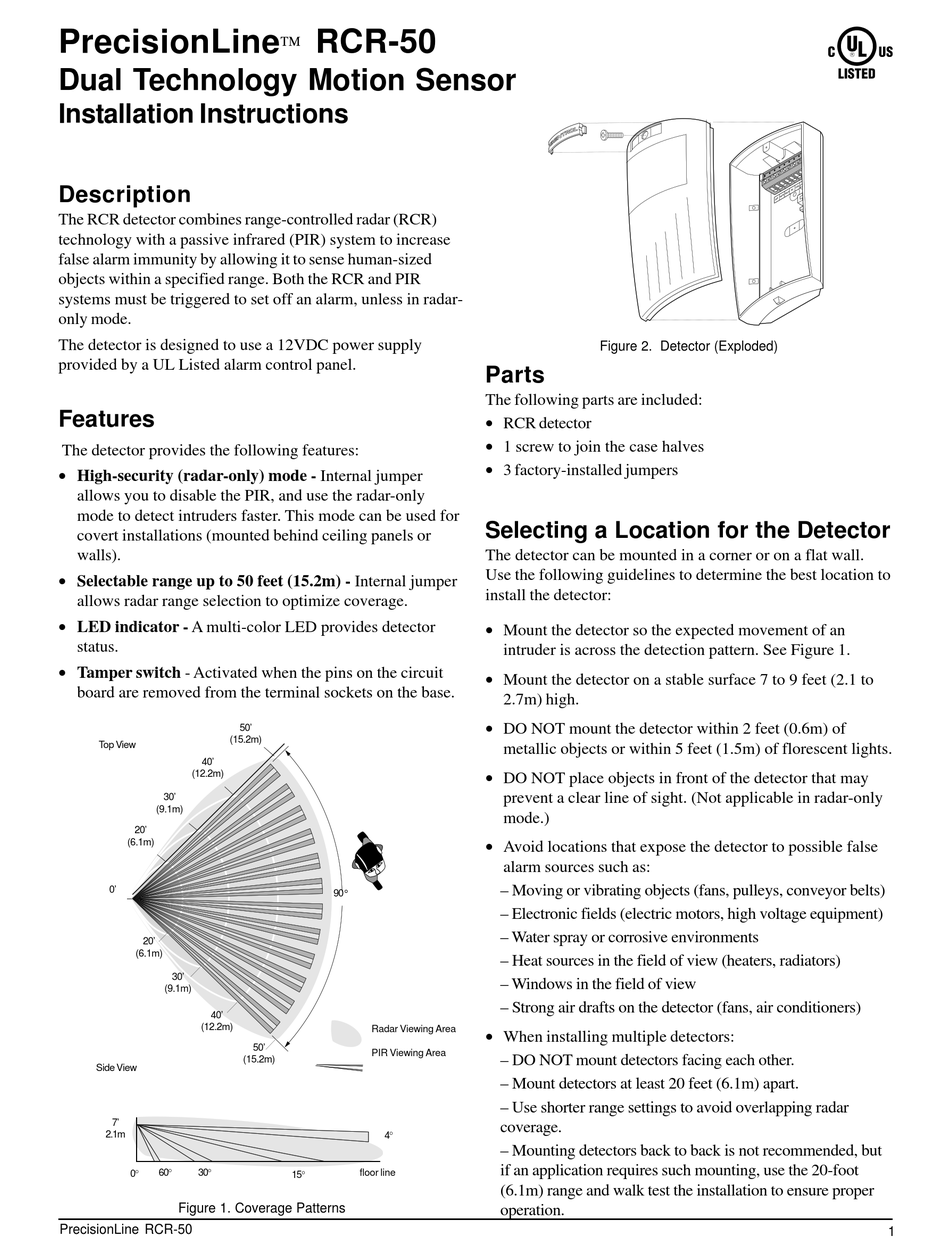

PrecisionLine
Dual Technology Motion Sensor
Installation Instructions
Description
The RCR detector combines range-controlled radar (RCR)
technology with a passive infrared (PIR) system to increase
false alarm immunity by allowing it to sense human-sized
objects within a specified range. Both the RCR and PIR
systems must be triggered to set off an alarm, unless in radar-
only mode.
The detector is designed to use a 12VDC power supply
provided by a UL Listed alarm control panel.
Features
The detector provides the following features:
• High-security (radar-only) mode - Internal jumper
allows you to disable the PIR, and use the radar-only
mode to detect intruders faster. This mode can be used for
covert installations (mounted behind ceiling panels or
walls).
• Selectable range up to 50 feet (15.2m) - Internal jumper
allows radar range selection to optimize coverage.
• LED indicator - A multi-color LED provides detector
status.
• Tamper switch - Activated when the pins on the circuit
board are removed from the terminal sockets on the base.
(15.2m)
Top View
40'
(12.2m)
30'
(9.1m)
20'
(6.1m)
0'
20'
(6.1m)
30'
(9.1m)
40'
(12.2m)
Side View
7'
2.1m
60° 30°
0°
Figure 1. Coverage Patterns
PrecisionLine RCR-50
RCR-50

50'
90°
Radar Viewing Area
50'
PIR Viewing Area
(15.2m)
4°
floor line
15°
Figure 2. Detector (Exploded)
Parts
The following parts are included:
• RCR detector
• 1 screw to join the case halves
• 3 factory-installed jumpers
Selecting a Location for the Detector
The detector can be mounted in a corner or on a flat wall.
Use the following guidelines to determine the best location to
install the detector:
• Mount the detector so the expected movement of an
intruder is across the detection pattern. See Figure 1.
• Mount the detector on a stable surface 7 to 9 feet (2.1 to
2.7m) high.
• DO NOT mount the detector within 2 feet (0.6m) of
metallic objects or within 5 feet (1.5m) of florescent lights.
• DO NOT place objects in front of the detector that may
prevent a clear line of sight. (Not applicable in radar-only
mode.)
• Avoid locations that expose the detector to possible false
alarm sources such as:
– Moving or vibrating objects (fans, pulleys, conveyor belts)
– Electronic fields (electric motors, high voltage equipment)
– Water spray or corrosive environments
– Heat sources in the field of view (heaters, radiators)
– Windows in the field of view
– Strong air drafts on the detector (fans, air conditioners)
• When installing multiple detectors:
– DO NOT mount detectors facing each other.
– Mount detectors at least 20 feet (6.1m) apart.
– Use shorter range settings to avoid overlapping radar
coverage.
– Mounting detectors back to back is not recommended, but
if an application requires such mounting, use the 20-foot
(6.1m) range and walk test the installation to ensure proper
operation.
1
