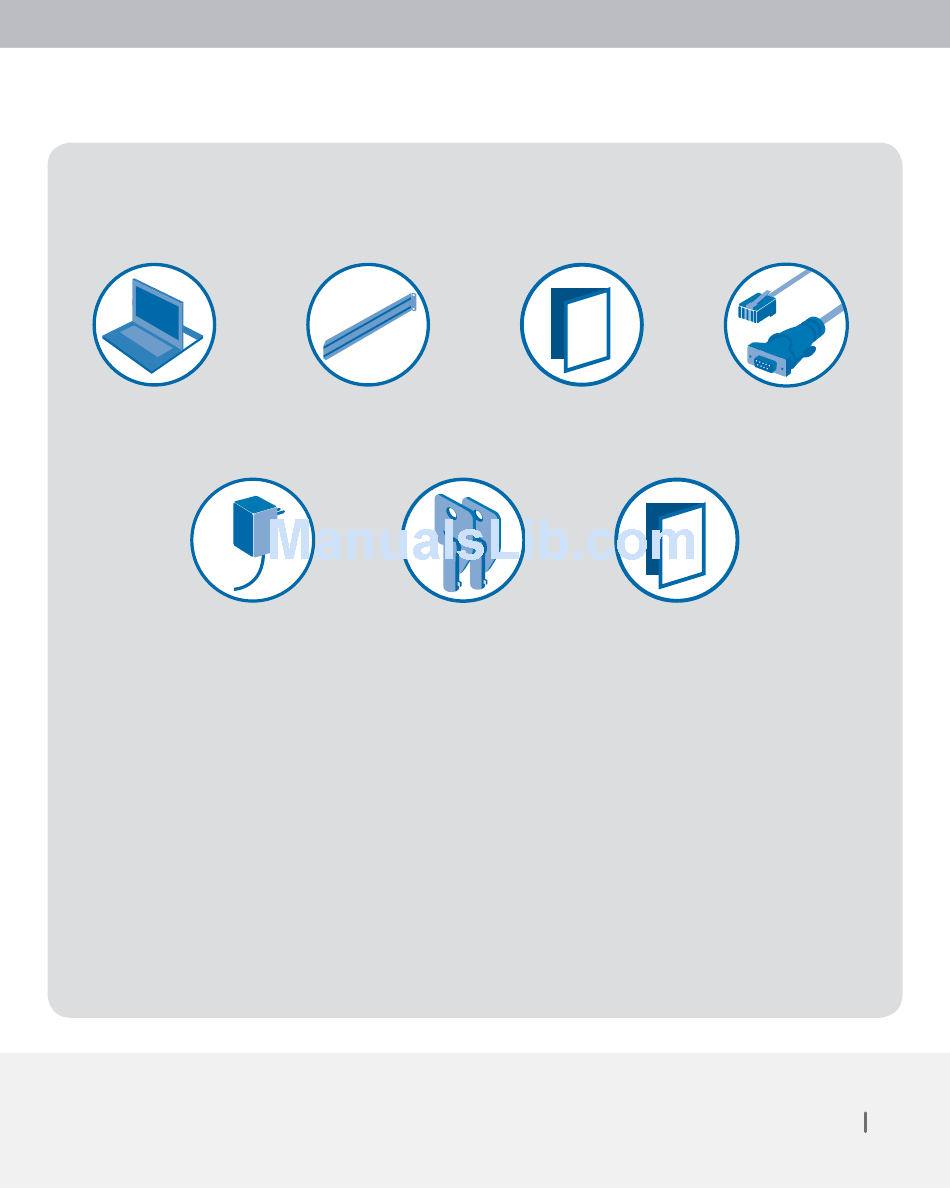

Package Contents:

LCD Rack Console
Side-Rail Kit
Quick Installation
DB9-to-RJ11
Guide
Serial Flash Cable
User Manual
12V DC,
Keys
6A Power Supply
Introduction
This booklet will guide you through the basic steps needed to install the LCD
Rack Console with Built-In PRO3 KVM Switch – Dual-Rail Technology.
Introduction
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F1DC108B-DR and is the answer not in the manual?

Questions and answers

Related Manuals for Belkin F1DC108B-DR

Summary of Contents for Belkin F1DC108B-DR

  • Page 1: Package Contents

    Package Contents: LCD Rack Console Side-Rail Kit Quick Installation DB9-to-RJ11 Guide Serial Flash Cable User Manual 12V DC, Keys 6A Power Supply Introduction This booklet will guide you through the basic steps needed to install the LCD Rack Console with Built-In PRO3 KVM Switch – Dual-Rail Technology. Introduction...

  • Page 2: Installation

    Installation Step 1: Place the Console inside the rack. Step 2: Mount the front brackets to the rack. Step 3: Slide the side rails onto the mounting studs. Installation...
  • Page 3 Step 4: Mount the side rails to the rear of the rack. Step 5: Connect the IEC power cable to an active power outlet and power up the Console. Installation...

  • Page 4: Troubleshooting

    Troubleshooting My Console doesn’t appear to be on. Make sure that the power switch located at the front of the keyboard drawer is “on” and that the power cable is connected properly. What is the maximum video resolution that the LCD panel supports? The LCD panel supports a resolution of up to 1280x1024.
  • Page 5 Express Business Park, Shipton Way Rushden, NN10 6GL, United Kingdom +44 (0) 1933 35 2000 +44 (0) 1933 31 2000 fax © 2008 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. OmniView LCD Rack Console ®...

  • Page 6: Start Here

    Start Here Quick Installation Guide OmniView LCD Rack Console ® with Built-In PRO3 KVM Switch – Dual-Rail Technology F1DC108B-DR F1DC116B-DR...
