Electrolux EHD 72100-X Installation And Operating Instructions Manual

Electrolux ceramic glass induction hob.
Hide thumbs

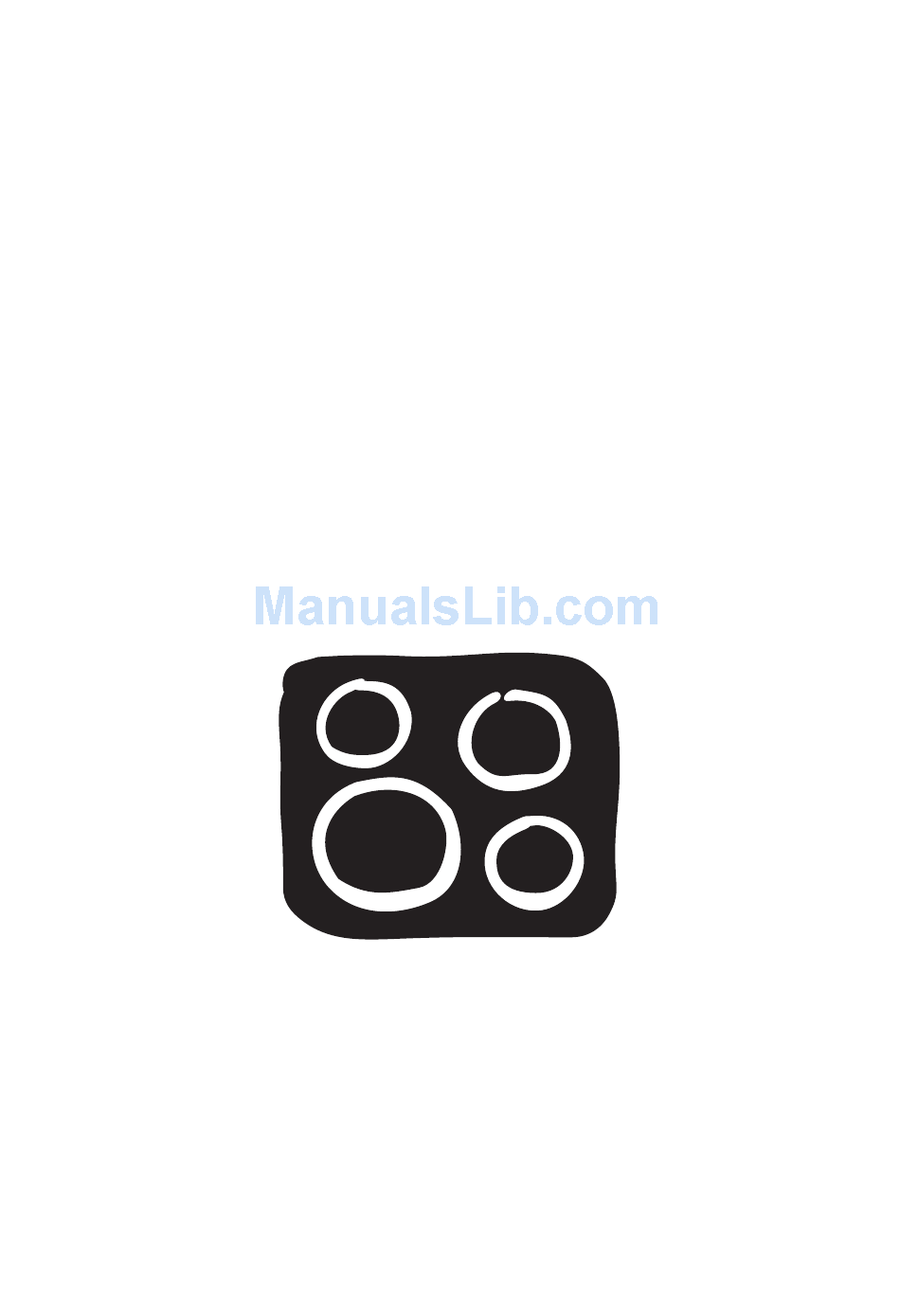

C e r a m i c
G l a s s
I n d u c t i o n
H o b
Installation and Operating
Instructions
EHD 72100-X
g
374 461 703-A-100406-01

   Related Manuals for Electrolux EHD 72100-X

   Summary of Contents for Electrolux EHD 72100-X

  • Page 1

    C e r a m i c G l a s s I n d u c t i o n H o b Installation and Operating Instructions EHD 72100-X 374 461 703-A-100406-01...

  • Page 2: Dear Customer

    Dear customer, Please read these operating instructions carefully. Pay particular attention to the section “Safety information” on the first few pages. Please retain these operating instructions for later reference. Pass them on to possible new owners of the appliance. The following symbols are used in the text: Safety instructions Warning: Information concerning your personal safety.

  • Page 3: Table Of Contents

    Contents Operating Instructions Safety instructions ..........Description of the Appliance .

  • Page 4: Operating Instructions, Safety Instructions

    Operating Instructions Safety instructions Please comply with these instructions. If you do not, any damage resulting is not covered by the warranty. This appliance conforms with the following EU Directives: – 73/23/EEC dated 19.02.1973 Low Voltage Directive – 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Di- rective 92/31/EEC –...

  • Page 5: Safety During Use, Safety When Cleaning

    Safety during use • Overheated fats and oils can ignite quickly. When cooking with fat or oil (e.g. chips) do not leave the appliance unattended. • There is the risk of burns from the appliance if used carelessly. • Remove stickers and film from the glass ceramic. •...

  • Page 6: Description Of The Appliance, Cooking Surface Layout

    Description of the Appliance Cooking surface layout Induction cooking zone 1850 W Induction cooking zone 1400 W with power function 2500 W with power function 1800 W Control panel Induction cooking zone 1400 W Induction cooking zone 2300 W with power function 1800 W with power function 3700 W...

  • Page 7: Control Panel Layout

    Control panel layout Left-hand side Warm up pilot Child lock pilot light Heat setting indicator Heat setting selection Child lock Automatic warm-up function/ Power function Right-hand side Warm up pilot Heat setting indicator Heat setting selection Automatic warm-up function/ Power function Timer indicator light Timer...

  • Page 8: Touch Control Sensor Fields, Displays

    Touch Control sensor fields The appliance is operated using Touch Control sensor fields. Functions are controlled by touching sensor fields and confirmed by displays and acoustic signals. Touch the sensor fields from above, without covering other sensor fields. Sensor field On / Off Increase settings Reduce settings...

  • Page 9: Residual Heat Indicator, Transparent Glass Ceramic

    Residual heat indicator Warning! Risk of burns from residual heat. After being switched off, the cooking zones need some time to cool down. Look at the residual heat indi- cator Residual heat can be used for melting and keeping food warm. The induction cooking zones create the heat required for cooking directly in the base of the cookware.

  • Page 10: Operating The Appliance, Switching The Appliance On And Off, Setting The Heat Setting

    Operating the appliance Use the induction cooking zones with suitable cookware. Switching the appliance on and off Control panel Switch on Touch Switch off Touch After switching on, within approx. 10 seconds a heat setting or a function must be set, otherwise the appliance automatically switches itself off. Switching off also works by touching for all individual functions, for example, ”Switching off the Timer”.

  • Page 11: Using The Automatic Warm-up Function

    Using the automatic warm-up function All cooking zones are equipped with an automatic warm-up function. The automatic warm-up function sets the cooking zone to the highest setting for a certain period of time and then automatically switches back to the cook- ing setting that was originally set.

  • Page 12: Switching The Power Function On And Off

    Switching the power function on and off The power function ing zones, e.g. to bring a large quantity of water to the boil quickly. The power function is activated for 10 minutes. After that the induction cooking zone automatically switches back to heat setting 9. To switch on To switch off If the power function has ended, the cooking zones automatically switch...

  • Page 13: Using The Child Safety Device

    Using the child safety device The child safety device prevents unintentional use of the appliance. The child safety device can only be switched on and off, if the appliance is switched on, but no cooking zone has a heat setting set. Activating the child safety device Step Switch on the appliance...

  • Page 14: Using The Timer

    Using the timer All cooking zones can use each use one of the two timer functions at the same time. Function Safety cut-out Countdown timer If a heat setting is set on this cooking zone in addition to a countdown timer, the cooking zone is switched off after the time set has elapsed.

  • Page 15: Setting The Time

    Setting the time Step Control panel Select cooking zone Touch After a few seconds the pilot light flashes more slowly. The time is set. The time counts down. If other Timer functions are set, after a few seconds the shortest remaining time for the right-hand or left-hand timer is displayed.

  • Page 16

    Changing the time Step Control panel Select zone Touch After a few seconds, the pilot light flashes more slowly. The time is set. The time counts down. Displaying the time remaining for a cooking zone Step Control panel field Select cooking zone After a few seconds the pilot light flashes more slowly.

  • Page 17: Safety Cut-out

    Safety cut-out Cooking surface • If after switching on the cooking surface, a heat setting is not set for a cooking zone within approx. 10 seconds, the cooking surface automati- cally switches itself off. • If one or more sensor fields are covered for longer than approx. 10 sec- onds, e.g.

  • Page 18: Tips On Cooking And Frying, Cookware For Induction Cooking Zones

    Tips on Cooking and Frying Information on acrylamides According to the latest scientific knowledge, intensive browning of food, es- pecially in products containing starch, can constitute a health risk due to acrylamides. Therefore we recommend cooking at the lowest possible tem- peratures and not browning foods too much.

  • Page 19: Tips On Energy Saving

    Pan size Induction cooking zones adapt automatically to the size of the bottom of the cookware up to a certain limit. However the magnetic part of the bottom of the cookware must have a minimum diameter depending upon the size of the cooking zone.

  • Page 20: Examples Of Cooking Applications

    Examples of cooking applications The information given in the following table is for guidance only. Heat Cooking- set- process ting Keeping food warm Melting Solidi- fying Simmer- ing on low heat Steaming Braising Boiling Gentle Frying Heavy Frying Boiling Searing Deep frying The power function is suitable for heating large quantities of liquid.

  • Page 21: Cleaning And Care

    Cleaning and Care Take care! Risk of burns from residual heat. Warning! Sharp objects and abrasive cleaning materials will damage the appliance. Clean with water and washing up liquid. Warning! Residues from cleaning agents will damage the appliance. Re- move residues with water and washing up liquid. Cleaning the appliance after each use 1.

  • Page 22: What To Do If

    What to do if … Problem The cooking zones will not switch on or are not function- The residual heat indicator is not displaying anything Power function cannot be switched on Display changes between two heat settings lights up is lit Possible cause More than 10 seconds have passed since the appliance...

  • Page 23: Transparent Glass Ceramic

    Problem and number are displayed Electronics fault If you are unable to remedy the problem by following the above sug- gestions, please contact your dealer or the Customer Care Depart- ment. Warning! Repairs to the appliance are only to be carried out by qualified service engineers.

  • Page 24: Disposal

    Disposal Packaging material The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities. Old appliance The symbol on the product or on its packaging indicates that this prod-...

  • Page 25: Installation Instructions

    Installation Instructions Safety instructions The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.) Installation may only be carried out by a qualified electrician. The minimum distances to other appliances and units are to be observed.

  • Page 26

    A device must be provided in the electrical installation which allows the ap- pliance to be disconnected from the mains at all poles with a contact open- ing width of at least 3 mm. Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contac- tors.

  • Page 27: Assembly

    Assembly...

  • Page 30: Rating Plate

    Rating Plate 941 177 622 ELECTROLUX 7,4 kW 230 V 50 Hz Induction 7,4 kW EHD72100X 55GDD86AG...

  • Page 31: Service

    Service In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instructions (section “What to do if…”). If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners.

  • Page 32

    Subject to change without notice The Electrolux Group. The world´s No.1 choice. The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
