Compaq ProLiant DL380 G2 Service Update

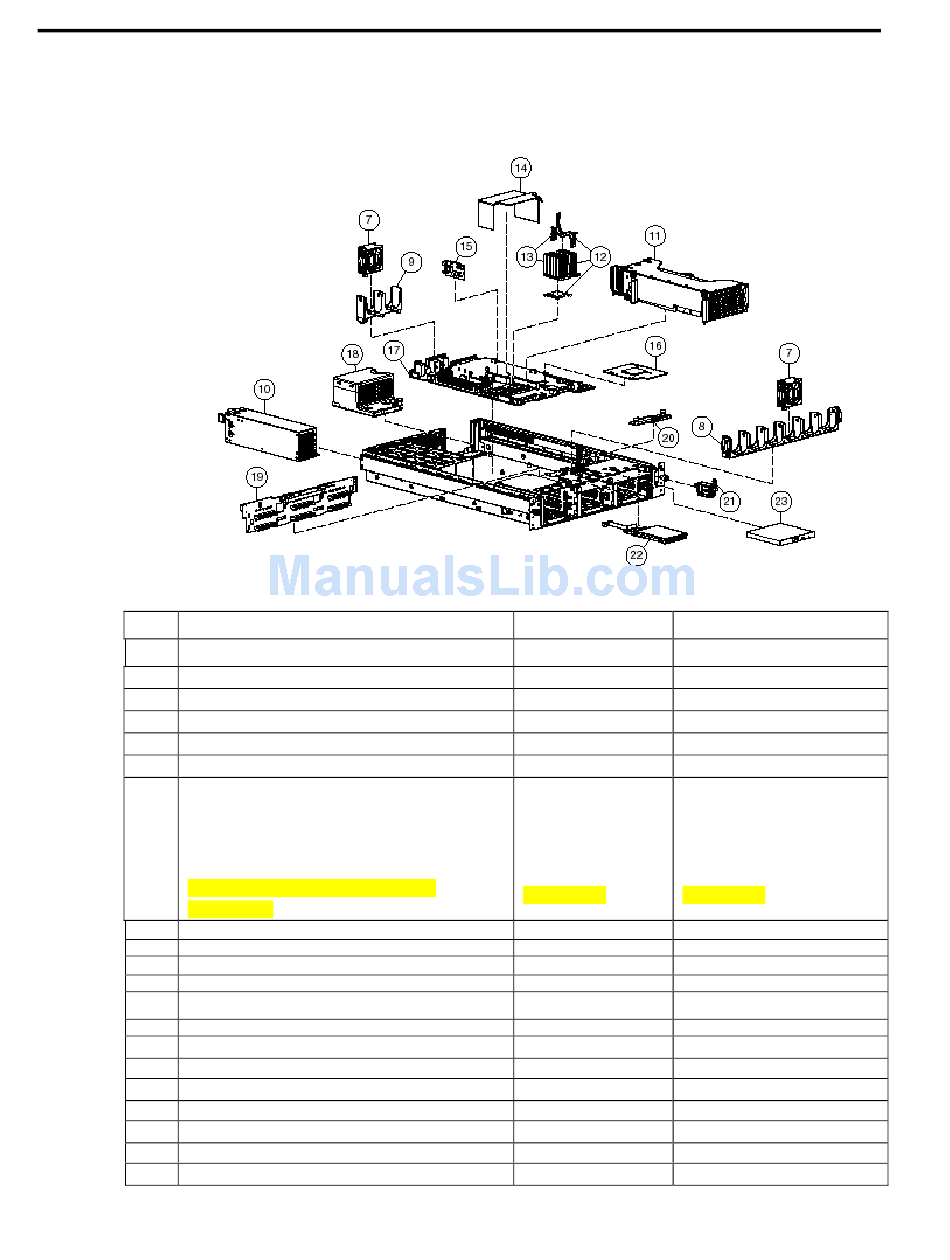

Figure 2. System components exploded view
Table 2 System Components Spare Parts List
Item Description
System Components
7 Hot-plug fan 60-mm
8 Front fan bracket 6-bay
9 Rear fan bracket 2-bay
10 Hot-plug power supply 400-W
11 PCI riser cage, with boards
12 Intel Pentium III processors
a) 1.13-GHz processor, heatsink, and
heatsink clip
b) 1.26-GHz processor, heatsink, and
heatsink clip
c) 1.4-GHz processor, heatsink, and
heatsink clip
13 Heatsink and heatsink clip
14 Air baffle
Boards
15 Processor power module (PPM), 12-V, 28.5-A
16 Smart Array 5i Controller
17 System board, with heatsink
18 Power converter module
Rev. 1.0
Part Number Spare Part Number
218382-001 228513-001
218383-001 228514-001
218667-001 228493-001
194989-001 228509-001
227238-001 228495-001
235384-003 228524-001
235384-002 228496-001
235384-004 259593-001
228075-001 228497-001
228073-001 228525-001
217336-001 228506-001
011003-003 228510-001
010933-001 228494-001
207066-001 228505-001
