Brother KE-436C Specifications

Electronic lockstitch pattern tacker with stepping foot and programming function.
Hide thumbs


Advertisement

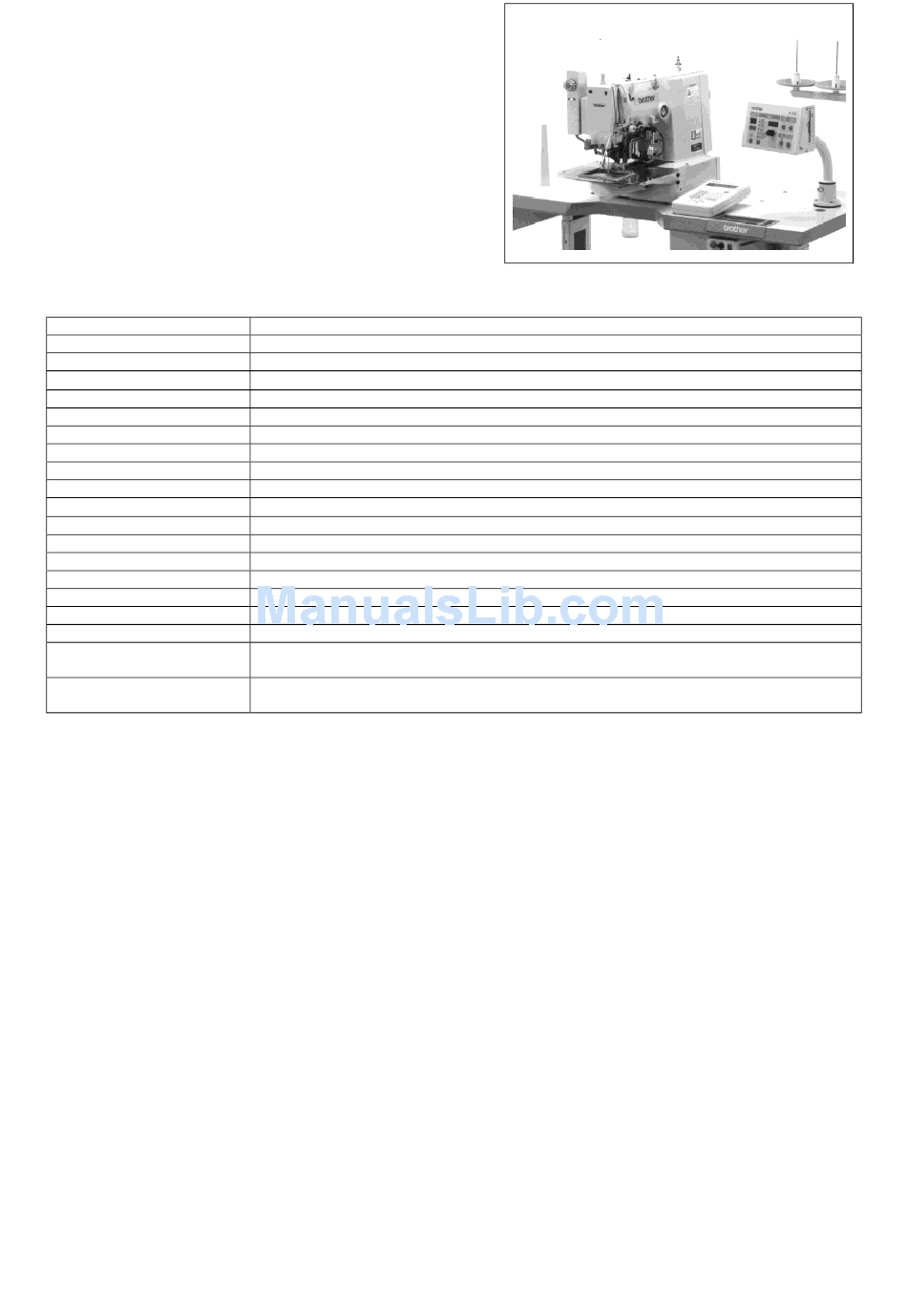

KE-436C
Electronic Lockstitch Pattern Tacker
with Stepping Foot and Programming function

Specifications

Stitch formation
Maximum sewing speed
Maximum pattern size (X x Y)
Feed mechanism
Stitch length
No. of stitches
Maximum number of stitches
Work clamp lifter
Work clamp height
Rotary hook
Wiper device
Thread trimmer device
Thread take-up device
Stepping foot lift amount
Stepping foot stroke
Safety device
Data storage method
Motor
Weights
Power source
Main use
*Patterns up to a maximum size of 100 mm x 60 mm can be sewn.
For plain stitching of small articles, curtain darts, etc.
*Two-stage work clamp, light work clamp and inner clamping device (optional) can be used.
For attaching items, sewing labels, etc.
Single needle lock stitch
2,500 rpm (Pitch 3 mm)
100 x 60 mm max.
R-θIntermittent feed mechanism (pulse-motor driven mechanism)
0.1 – 10.0 mm
20,000 stitches (One pattern)
Pneumatic type
Shuttle hook (Shuttle hook 2, optional)
Standard equipment
Standard equipment
Standard equipment
0 mm, 3 – 8 mm
Built-in stopping mechanism
3.5 floppy disk 2HD / 1.44MB, 2DD
Three-phase 400 W induction motor
Machine head: 56 kg, Operation panel: 2.8 kg,
Control box: 9 – 19 kg (depending on destination)
Single-phase 110V, 220 – 230, 240V 3-phase 220 - 230, 380, 400 V
Maximum electric power consumption; 600 VA
2003.1
Variable
25 mm max.
18 mm
KE-436C 1/8
