9. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel
audio I/O module cable to this connector.

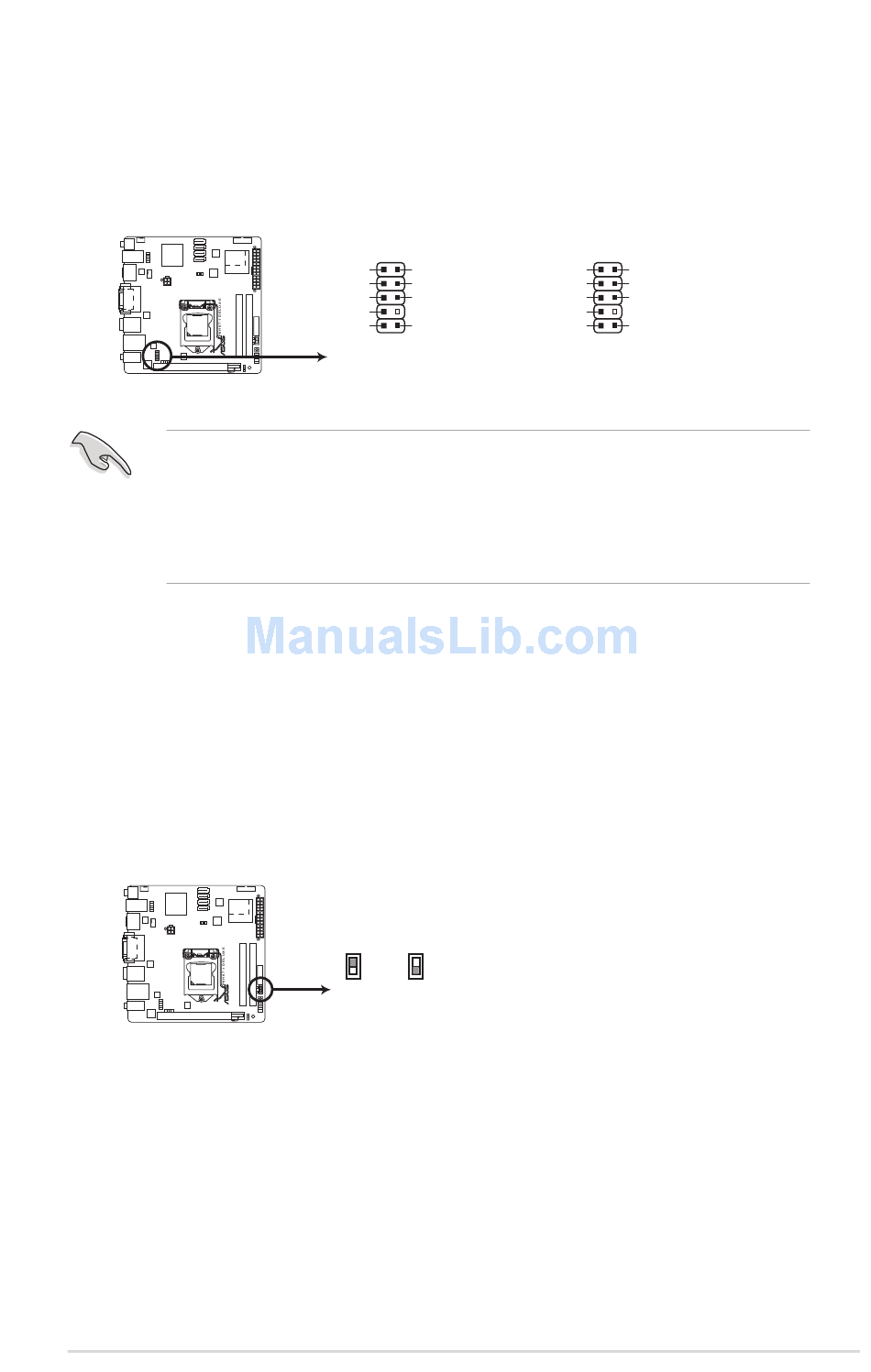

P8H67-I DELUXE Front panel audio connector
• We recommend that you connect a high-definition front panel audio module to this
connector to avail of the motherboard's high-definition audio capability.
• If you want to connect a high-definition front panel audio module to this connector, set
the Front Panel Type item in the BIOS setup to [HD]. If you want to connect an AC'97
front panel audio module to this connector, set the item to [AC97]. By default, this
connector is set to [HD]. See section 2.5.6 Onboard Devices Configuration for details.
1.8

Onboard switches

Onboard switches allow you to fine-tune performance when working on a bare or open-case
system. This is ideal for overclockers and gamers who continually change settings to
enhance system performance.
1. GPU Boost switch
This switch allows you to enable or disable the GPU Boost function.
P8H67-I DELUXE GPU Boost switch
1-15
PIN 1
PORT1 L GND
PORT1 R PRESENCE#
PORT2 R SENSE1_RETUR
SENSE_SEND
PORT2 L SENSE2_RETUR
HD-audio-compliant
pin definition
GPU Boost
Enable Disable
(Default)
AAFP
PIN 1
MIC2 AGND
MICPWR NC
Line out_R NC
NC
Line out_L NC
Legacy AC'97
compliant definition
Chapter 1: Product introduction
