12. eSATA port. This port connects to an external Serial ATA hard disk drive.
13. DVI-D port. This port is for any DVI-D compatible device. DVI-D can't be converted to
output RGB Signal to CRT and isn't compatible with DVI-I.
14. HDMI port. This port is for a High-Definition Multimedia Interface (HDMI) connector,
and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected
content.
15. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0/1.1 devices.
1.7.2

Internal connectors

1. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)
These connectors are for ATX power supply plugs. The power supply plugs are
designed to fit these connectors in only one orientation. Find the proper orientation and
push down firmly until the connectors completely fit.

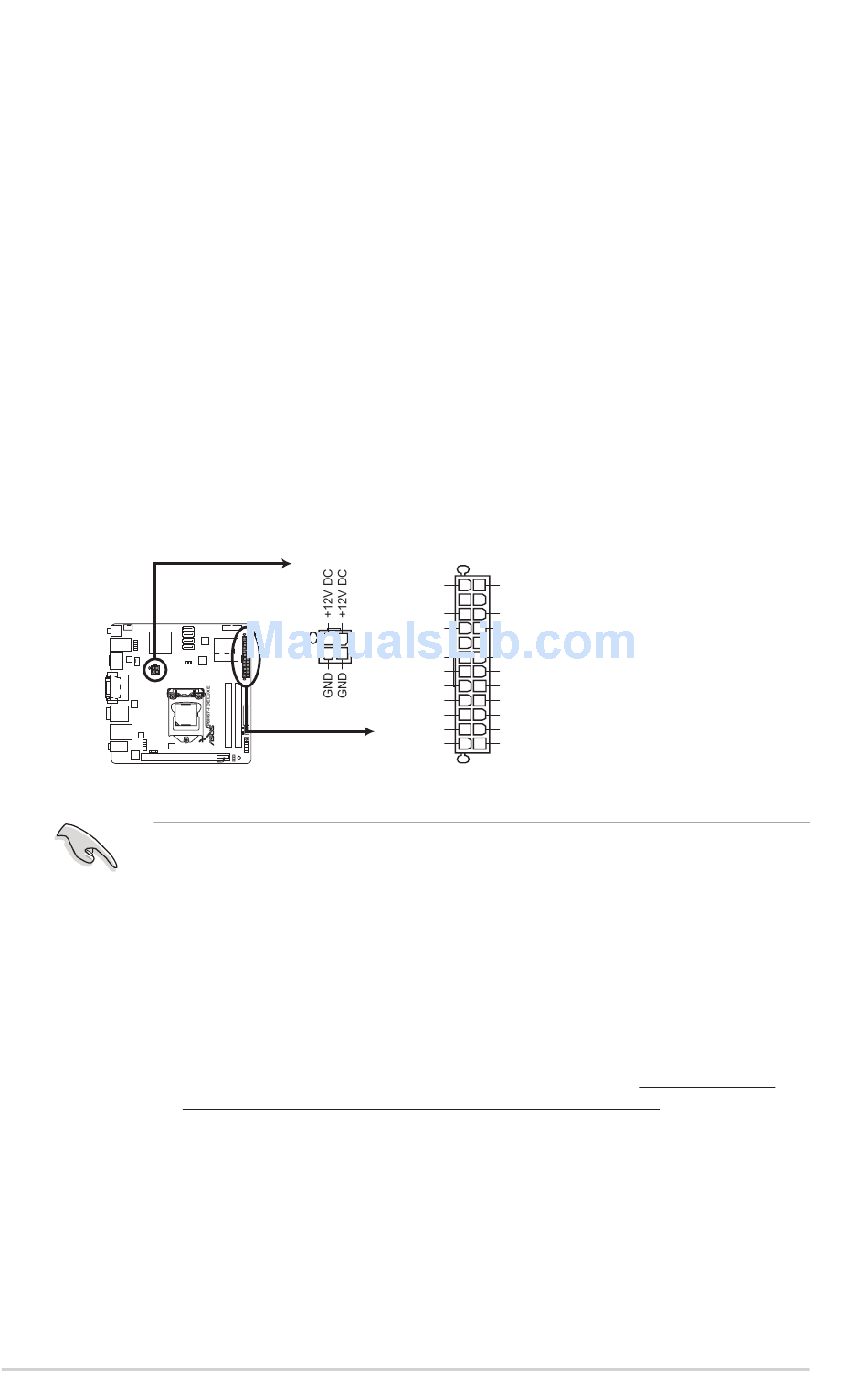

P8H67-I DELUXE ATX power connectors
• For a fully configured system, we recommend that you use a power supply unit (PSU)
• DO NOT forget to connect the 4-pin ATX +12V power plug. Otherwise, the system will
• We recommend that you use a PSU with higher power output when configuring a
• If you are uncertain about the minimum power supply requirement for your system,
ASUS P8H67-I Series
ATX12V
that complies with ATX 12 V Specification 2.0 (or later version) and provides a minimum
power of 350 W.
not boot up.
system with more power-consuming devices. The system may become unstable or may
not boot up if the power is inadequate.
refer to the Recommended Power Supply Wattage Calculator at http://support.asus.
com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.
EATXPWR
PIN 1
+3 Volts
+3 Volts
-12 Volts
+3 Volts
GND
GND
PSPN#
+5 Volts
GND
GND
GND
+5 Volts
PIN 1
GND
GND
-5 Volts
Power OK
+5 Volts
+5V Staudby
+5 Volts
+12 Volts
+5 Volts
+12 Volts
GND
+3 Volts
1-10
