1.5.3

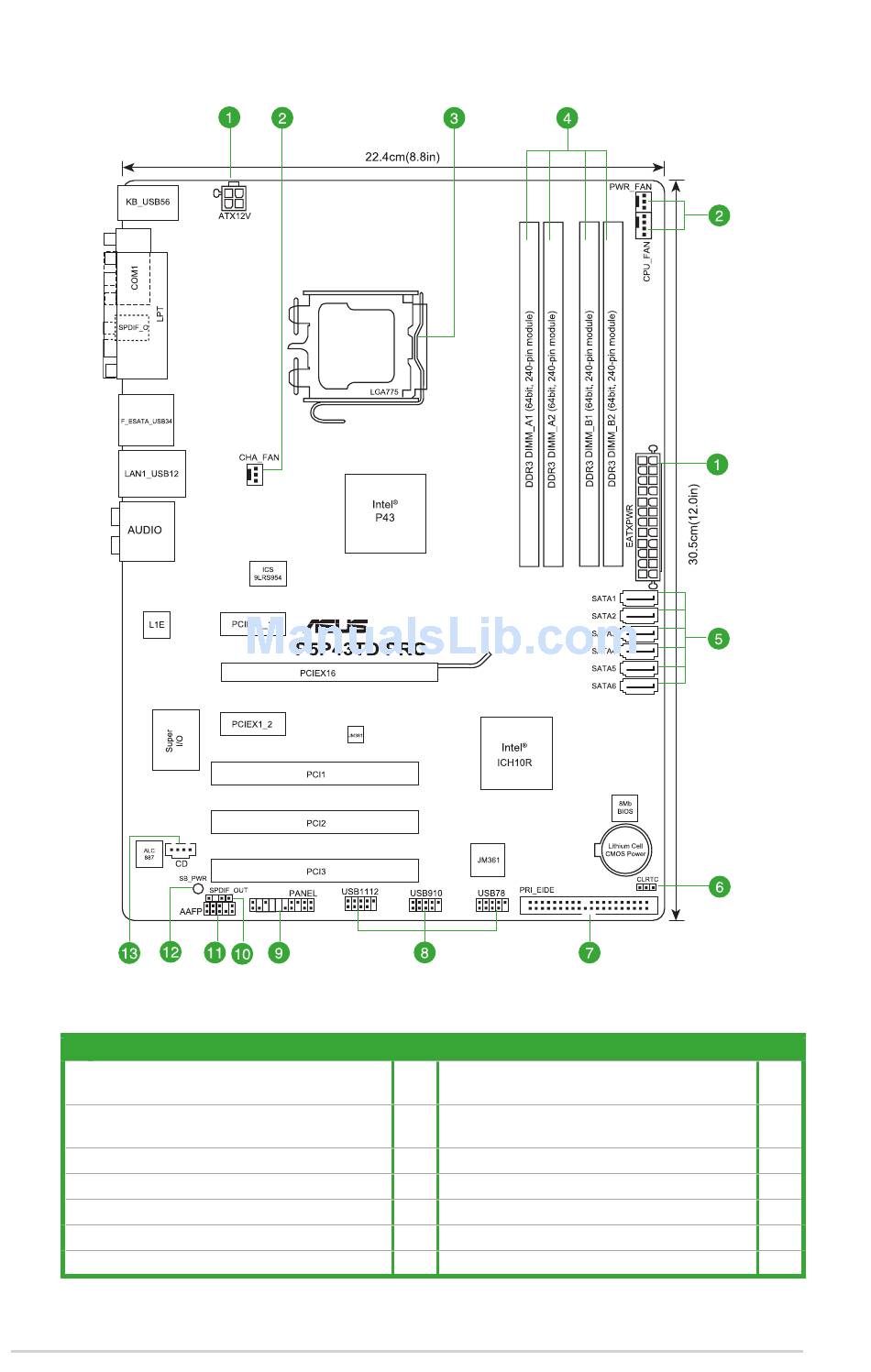

Motherboard layout

1.5.4

Layout contents

Connectors/Jumpers/Slots
1. ATX power connectors (24-pin EATXPWR, 4-pin
ATX12V)
2. CPU, chassis, and power fan connectors (4-pin
CPU_FAN, 3-pin CHA_FAN, 3-pin PWR_FAN)
3. CPU socket
4. DDR3 DIMM sockets
5. Serial ATA connectors (7-pin SATA1-6)
6. Clear RTC RAM (3-pin CLRTC)
7. IDE connector (40-1 pin PRI_EIDE)
1-6
Page Connectors/Jumpers/Slots
1-23 8. USB connectors (10-1 pin USB78, USB910,
USB1112)
1-22 9. System panel connector (20-8 pin PANEL)
1-7 10. Digital audio connector (4-1 pin SPDIF_OUT)
1-12 11. Front panel audio connector (10-1 pin AAFP)
1-24 12. Onboard LED
1-20 13. Optical drive audio connector (4-pin CD)
1-25
Chapter 1: Product introduction
Page
1-27
1-26
1-23
1-27
1-4
1-24
