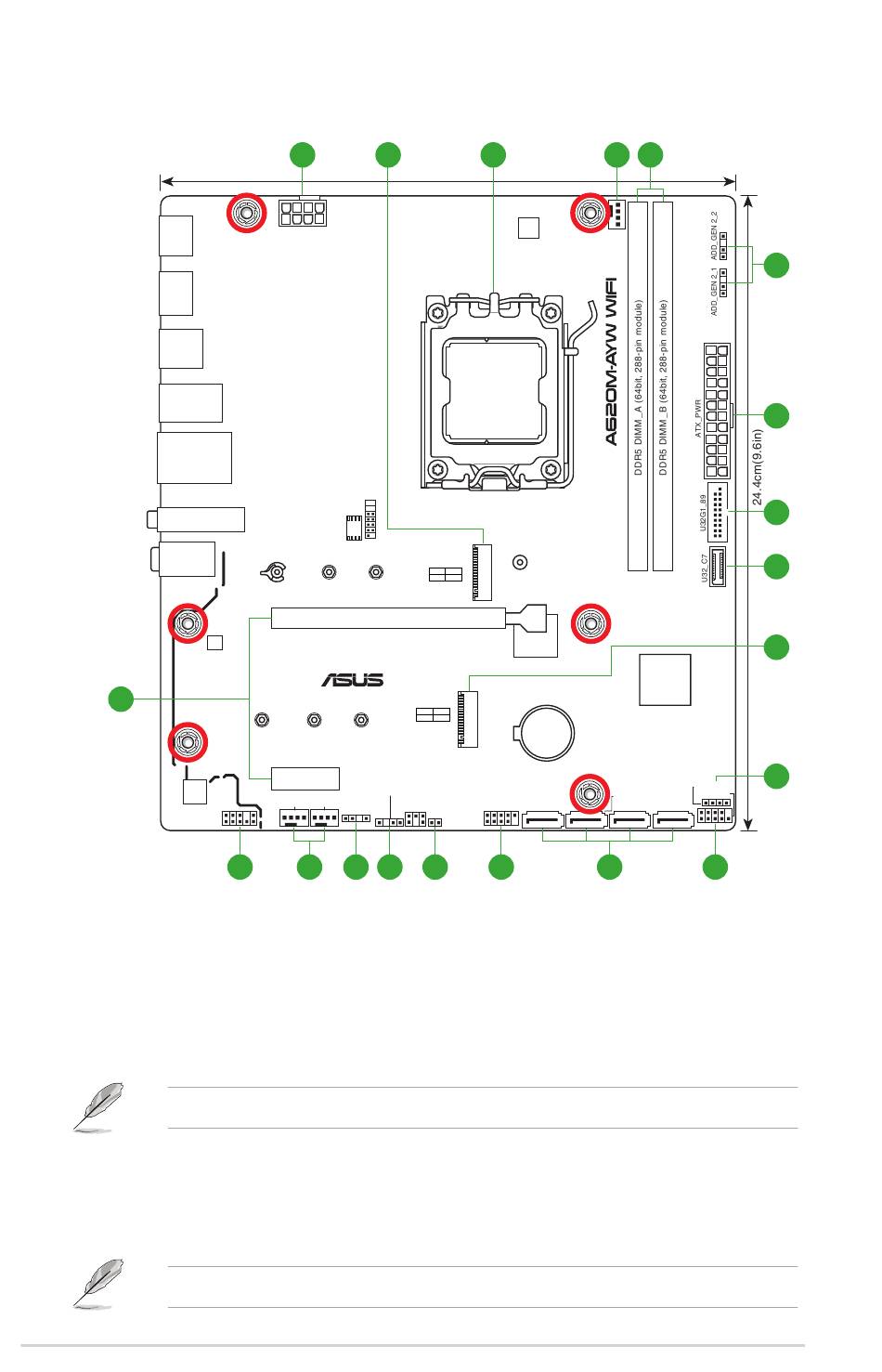

Motherboard layout
HDMI
DP
U32G1_34
USB_1_13_14_15
LAN_U32G2_2_6
M.2(WIFI)
AUDIO
3
1.2.1
Layout contents
1. CPU socket
The motherboard comes with an AMD Socket AM5 designed for AMD Ryzen™ 7000 Series/
8000 Series Desktop Processors.
For more details, refer to CPU installation.
2. DIMM slots
The motherboard comes with Dual Inline Memory Modules (DIMM) slots designed for DDR5
(Double Data Rate 5) memory modules.
For more details, refer to DIMM installation.
1-2
Chapter 1: Product Introduction
5
ATX_12V
256Mb
BIOS
2280
2260
Ethernet
2280
2260
2242
PCIEX1
Audio
Codec
CHA_FAN1 CHA_FAN2
ADD_GEN 2_3
AAFP
13
4
11 14
6
1
22.1cm(8.7in)
DIGI+
VRM
SOCKET AM5
M.2_1(SOCKET3)
PCIE
SATA
4.0 X4
X
2242
PCIEX16
Super
I/O
M.2_2(SOCKET3)
PCIE
SATA
4.0 X4
X
BATTERY
SPDIF_OUT
COM_DEBUG
USB_1617
SATA6G_4
CLRTC
12
10
4
2
CPU_FAN
AMD
A620
SPEAKER
F_PANEL
SATA6G_3
SATA6G_2 SATA6G_1
7
16
11
5
9
8
6
15
