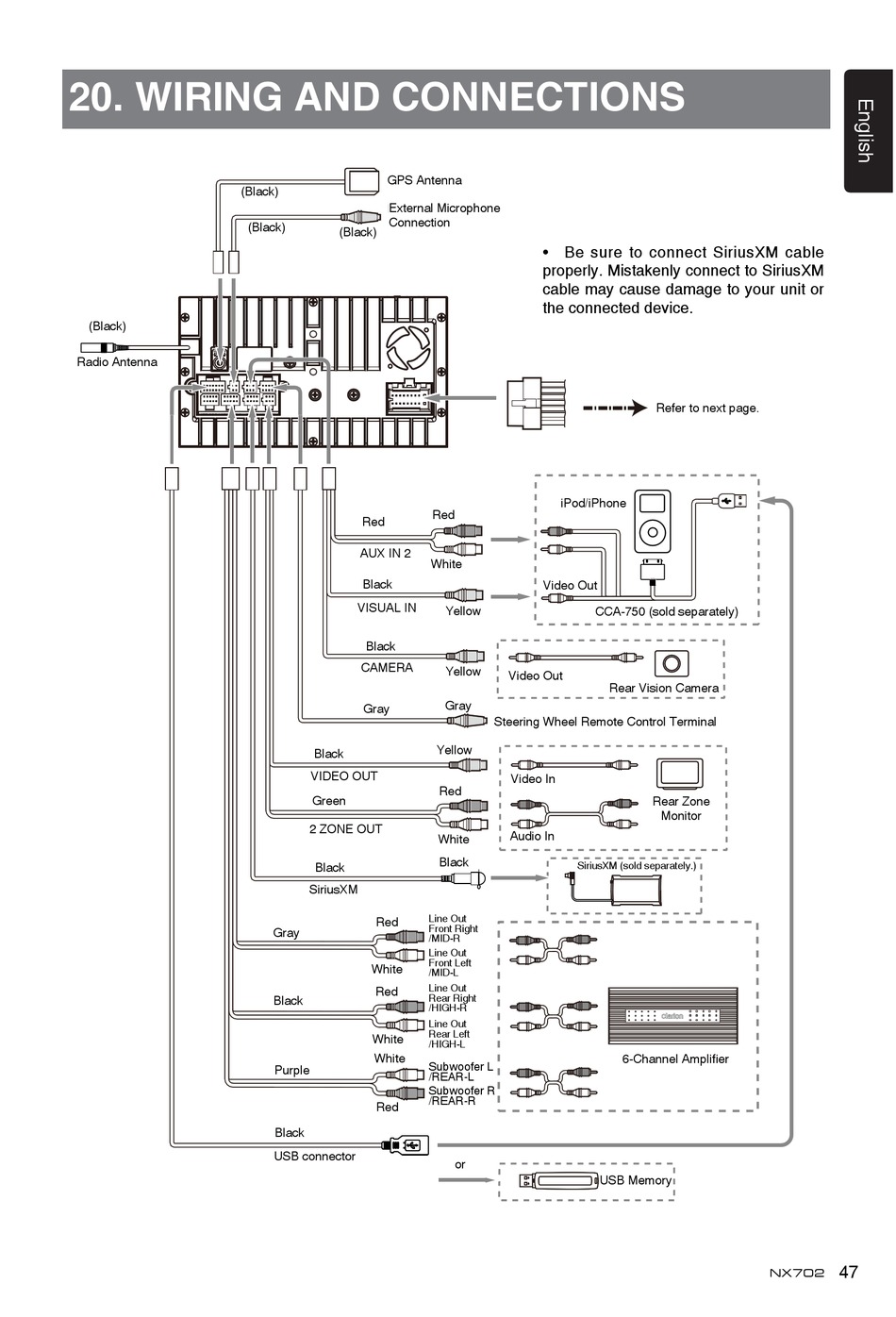

20. WIRING AND CONNECTIONS

NX702
(Black)
(Black)
Radio Antenna Radio Antenna
GPS Antenna
GPS Antenna
(Black)
(Black)
External Microphone
External Microphone
Connection
Connection
(Black) (Black)
Black
(Black)
Red
Red
AUX IN 2
AUX IN 2
Black
Black
VISUAL IN
VISUAL IN
Black
Black
CAMERA CAMERA
Gray
Gray
Black
Black
VIDEO OUT
VIDEO OUT
Green
Green
2 ZONE OUT
2 ZONE OUT
Black Black
SiriusXM
SiriusXM
Red Red
Gray
Gray
White White
Red
Red
Black
Black
White White
White
White
Purple Purple
Red Red
Black
Black
USB connector
USB connector
• Be sure to connect SiriusXM cable
properly. Mistakenly connect to SiriusXM
cable may cause damage to your unit or
the connected device.
iPod/iPhone
iPod/iPhone
Red
Red
White
White
Video Out Video Out
Yellow
Yellow
CCA-750 (sold separately)
Yellow Yellow
Video Out Video Out
Gray Gray
Steering Wheel Remote Control Terminal Steering Wheel Remote Control Terminal
Yellow
Yellow
Video In Video In
Red
Red
Audio In Audio In
White White
Black Black
SiriusXM (sold separately.)
SiriusXM (sold separately.)
Line Out
Line Out
Front Right
Front Right
/MID-R
Line Out
Line Out
Front Left
Front Left
/MID-L
Line Out
Line Out
Rear Right
Rear Right
/HIGH-R
Line Out
Line Out
Rear Left
Rear Left
/HIGH-L
Subwoofer L
Subwoofer 1
/REAR-L
Subwoofer R
Subwoofer 2
/REAR-R
or
or
Refer to next page.
Refer to the right.
CCA-750 (sold separately)
Rear Vision Camera
Rear Vision Camera
Rear Zone
Rear Zone
Monitor
Monitor
6-Channel Amplifier
6-Channel Amplifier
USB Memory
USB Memory
