Hunter 28685 Parts Manual

Hardware
(Drawn to Scale)
Low Profile
x 1
Washer
x 2
x 4
Flat Washer
x 2
Screw, Low
x 3
Profile
x 3
Canopy Screw
x 1
Setscrew
x 4
Mouting Isolator
Balancing
x 1
Kit
Screw, Switch
x 3
Wire Housing Assembly
x 4
Connector
3" Wood Screw
Hanger
Bracket
Assembly
1.5" Wood Screw
Blade
Assembly
Switch
Housing
Assembly
Fan Parts
(Not Drawn to Scale)

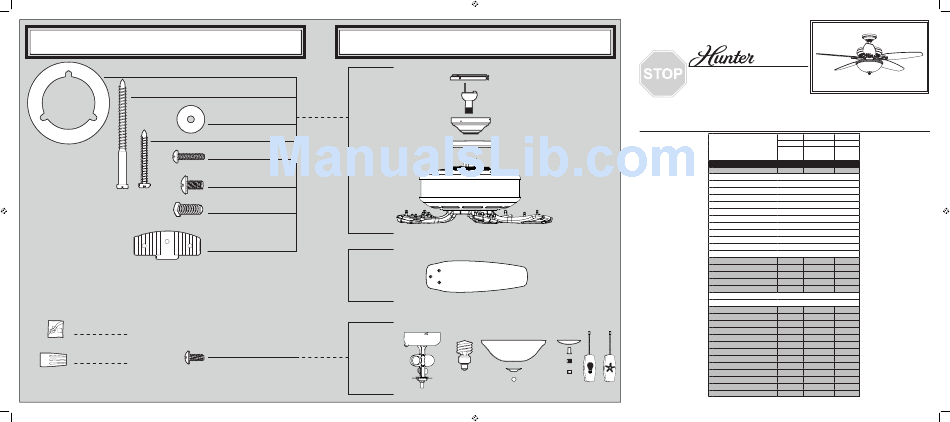

PARTS GUIDE
PARTS GUIDE
Using this Parts Guide, make sure all Using this Parts Guide, make sure all
parts are included in the box. parts are included in the box.
If parts are missing, DO NOT RETURN If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance. THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY. THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS. REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Model # 28685

Parts List

Asm. Dwg. # G1008-01
Finish Brushed Nickel
Item Name Qnty Part #
* Hanging System Kit 1 96759-09
Ceiling Plate
Canopy
Canopy Trim Ring
Hanger Ball / Downrod Assembly
Setscrew
Low Profile Washer
Canopy Screw
Wood Screw 1.5"
Wood Screw 3"
Flat Washer
Mounting Isolator
Low Profile Screw
Switch Housing Assembly 1 G1010-09
Blade Set 1 G1012-08
Blade Iron Set 1 G0836-05
Light Kit Assembly 1 99076-02
Hardware Kit 1 G1008-00-860
Wire Connector
Screw, Switch Housing Assembly
Pull Chain Pendant 1 G0090-01
Pull Chain Pendant 1 G0091-01
Pull Chain 1 63756-18
Pull Chain 2 63756-58
Bottom Cap 1 74759-02
Finial 1 74758-01
Globe/Shade 1 88739-01
Dummy Terminal, Male 1 08198-01
Dummy Terminal, Female 1 08200-01
Cap, Switch Housing 1 73853-01
Plug Button 1 73854-01
CFL Bulb 2 66763-01
Balancing Kit 1 65666-01
Hunter Fan Company • 7130 Goodlett Farms Pkwy. #400 • Memphis, TN 38016 • www.hunterfan.com • 98000-02-052 09-20-2010 •
28686
G1008-02
New Bronze
Part #
96759-30
G1010-30
G1012-09
G0836-10
99076-02
G1008-00-861
G0090-01
G0091-01
63756-47
63756-56
74759-04
74758-01
88739-02
08198-01
08200-01
73853-01
73854-01
66763-01
65666-01
