RocketFish RF-RBWS01 Quick Setup Manual

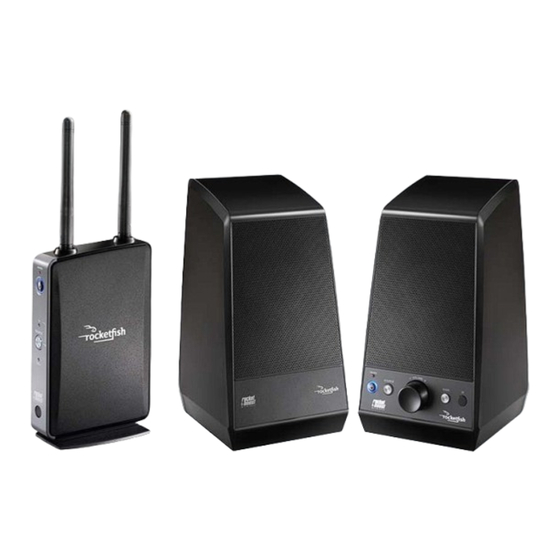

RF-RBWS01 Wireless Bookshelf Speakers
Package contents
AC power adapter
for wireless speakers
3.5 mm
AC power adapter audio cable
for wireless sender/receiver
Wireless sender/receiver
3.5 mm to RCA adapter
(6 inches/15.25 cm)
USB cable Remote control
User Guide Quick Setup Guide
Wireless speakers
Initial setup
1 Unpack the package contents
2 Adjust the antennas
Adjust the antennas to gain the best audio signals.
Tip: In some cases, you may improve range by rotating
both antennas 0° to create a 180° angle.
3 Enable the remote control battery
Remove the tab from the bottom of
the remote control.
4 Set up the wireless sender/receiver
and wireless speaker
The Quick Setup Guide will show you a typical
setup using an audio device (such as an MP3
player, PC or A/V receiver). For more information
about how to use other Rocketboost products
with this product, see your User Guide.
RF-RBUSB
Wireless
See the following steps for further setup details.
sender/receiver
QUICK SETUP GUIDE
Connecting power to the wireless speaker
Connect the AC power adapter to the wireless
speaker and plug into an AC power outlet. The
wireless speaker system turns on automatically.
DC IN
15V/1.5A
Right speaker
Connecting audio source and power to wireless sender/receiver
1 Connect your audio source to the LINE IN jack or USB jack on the rear of the wireless sender,
using the 3.5 mm audio cable or the USB cable. If necessary, you can also use the 3.5 mm to RCA
adapter, if your audio device uses RCA-type line out connectors.
Included 3.5 mm cable
Included 3.5 mm cable and 3.5 mm to RCA adapter
OR
To audio output jack
Included USB cable
To USB jack
2 Remember to turn the volume up on your audio source especially if connected to a headphone
output.
3 Connect the AC power adapter to the wireless USB sender/receiver and plug into an AC power
outlet.
RF-RBWS01
The wireless sender/receiver automatically turns on and the power indicator turns green.
Wireless
speakers
Establishing communication
The wireless sender/receiver and wireless speakers were pre-joined so they will communicate with
each other right out of the box. So if this is your first Rocketboost enabled product you can skip
DC IN
15V/1.5A this section and go to the next section, Listening to music.
If you need to rejoin the wireless sender/receiver to the wireless speakers, and this is your only
Rocketboost enabled product, then use the following steps.
1 Set the HUB STATUS switch on the wireless sender/receiver to ENABLE if this is your first
Rocketboost product set.
• The power indicator turns green when the HUB STATUS switch is set to ENABLE.
back
• The power indicator turns blue when the HUB STATUS switch is set to DISABLE.
2 Press and hold on the wireless sender/receiver for more than three seconds to put it into
joining mode. The power indicator starts blinking rapidly and the unit will stay in joining mode
for 30 seconds.
3 Press and hold the button on the wireless speaker for more than three seconds
so the wireless sender/receiver and wireless speaker enter connection mode.
• The power indicator lights steadily if the joining was successful.
• The power indicator blinks slowly if the joining was not successful.
4 After the link is established, if the Source indicator on
the wireless speaker is still not illuminated, make sure
To audio
that your source is turned on.
output jack
For more instructions, see your User Guide.
If you already have other Rocketboost devices you need
to join both the wireless sender/receiver and the wireless
speaker to your existing hub device. See the User Guide
for detailed instructions on how to do this.
Listening to music
1 Turn on the wireless sender/receiver and wireless speaker. The power indicator LEDs should
light steadily. If they are blinking you need to rejoin the wireless sender/receiver and wireless
speaker. See the Establishing communication section above.
2 Point the remote control at the wireless sender/receiver and select either USB-In or LINE-In
depending on which audio input you are using.
3 Play music from the audio device connected to your wireless sender/receiver and listen to it
from the wireless speakers.
4 Adjust the volume level on your wireless speaker. If you have multiple audio sources in your
Rocketboost network, press the Source button on the wireless speaker to hear the next audio
source. Press the Source button again to cycle through all available audio sources.
Note: Be sure to turn up the volume on your audio source device, especially if you are
connected to a headphone output.
Rocketboost network notes:
Every Rocketboost network must contain
one hub device, which helps devices join
the network. The network can have only
one hub, which you can enable using the
hub switch on the back of all Rocketboost
wireless sender and wireless
sender/receivers. If this is your first
Rocketboost product, you should make
the wireless sender/receiver the hub, if you
already have Rocketboost products, you
should disable hub mode on this device.
Important: Hub devices must always have
power for your network to operate. The
hub device can be in standby (power-
saving) mode, but must stay plugged in. g) , y p
Lights when
standby speaker is
SOURCE
receiving
audio from
sender
