RocketFish RF-RBWSO2 Quick Setup Manual

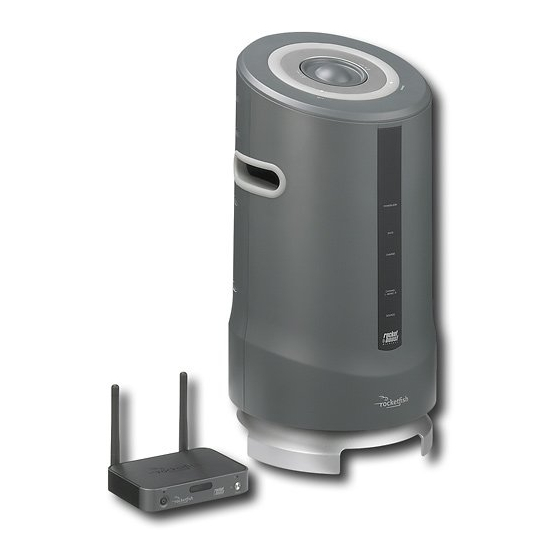

RF-RBWSO2 Wireless Outdoor Speaker
Package contents
DC adapter
for wireless
speaker
IR remote
DC adapter
for transmitter
Sender
Wireless speaker
Front controls
Transmitter
TM
TM
4
1 2 3 5 6 7
Front Panel
Speaker
POWER /JOIN
/
Front Panel
6
BASS
7
1 CHARGE
8
VOL VOL
2 3
4 4
CHANNEL
L - MONO - R
9
12
SOURCE
10
11
5 5
Adjust antennas
Pull up the antennas
Preparing the remote control
To activate the battery:
Remove the tab from the bottom of the remote control to enable the battery.
Please read before setting up your system.
Every Rocketboost network must contain at least one hub device, which directs network data traffic and helps devices join the
network. The network can have only one hub, which you can enable using the Hub switch on the back of all Rocketboost
3.5mm stereo
transmitters. See your User Guide for instructions on "joining" devices to the network. If this is your first Rocketboost product you
female to 2-RCA male
should make this unit the hub, if you already have Rocketboost products, you should disable the hub mode on this device.
cable (6 inches/15.25 cm)
IMPORTANT: Hub units must always have power for your network to operate. The device may be placed in standby, but the unit
must remain plugged into the wall to operate your network.
1 Getting Started
Load batteries in wireless speaker
(Installing batteries is optional)
Quick
A Unscrew the bottom cover ( 3 screws).
Setup Guide
User Guide
B Insert eight alkaline or rechargeable NiMH batteries
3.5 mm
matching +/- as indicated. This product will only recharge
stereo cable
NiMH batteries. Do not attempt to charge any other
batteries in this product.
operate on batteries or with the DC to AC adapter (provided).
# Feature The unit will charge and play simultaneously.
1 Power/Join button C Replace the cover and fasten the three screws.
Power/Join indicator (Blue/Green Light)
2
Wireless speaker
3 Standby indicator (Red Light)
4 IR sensor window
5 Source button
6 Receiver-mode indicator (Blue Light)
Sender-mode indicator (Blue Light)
7
# Feature
Volume increase/decrease dial
1
2 Connecting the Transmitter
2 Power/on standby/Join button
3 Source
Connect to an audio source
4 Middle-treble reflex hole
Connect one end of the audio cable (supplied) to
Bass reflex hole the AUDIO IN jack on the sender and the other end
5
to the audio output jack of your device (such as an
6 Power/Join indicator (Red/Blue light)
A/V receiver, PC, or iPod.)
7 BASS indicator
Note: If you are adding this sender to an existing network,
8 Charge indicator
set the hub switch to Disable and follow the instructions
Channel MONO (L/R) indicators
9
under Establishing Communication to add the transmitter
Audio source signal indicator
10
and speaker to your existing network. Otherwise, leave it
DC adaptor in
11
on Enable as the transmitter and wireless speaker were
12 Bass Boost
pre-configured at the factory and you will not need to go
through the Establish Communication steps. Remember to
turn the volume up on the source device to at least 80%
For best results, adjust the antennas to
of its maximum volume.
vertical. In some instances, you may
improve range by rotating both
Connect the AC Adapter
antennas 45 degrees to create a 90°
angle similar to a wide "V".
Charge your wireless speaker
Connect the DC adapter to the wireless speaker and plug into an AC
power outlet. The CHARGE LED blinks green while it is charging. The
light will be solid when charging is complete.
Note: For the first time,
Note: Your wireless speaker can
charge batteries for
16 hours.
Caution: Only use the
8 rechargeable or alkaline supplied power adapter
and make sure your outlet
C batteries (not included)
matches the AC's input
of 100-240 V.
Wireless speaker's
back panel
x 8
OR
Supplied
To audio
output jack
Connect one end of the adapter to the DC IN jack, then
plug the other end into an AC power outlet. The standby
indicator turns red.
Note: Make sure that the power outlet is 100-240V, and do not
connect the AC adapter until all other connections are completed.
3 Establishing Communication
If this is your first Rocketboost product and you do not have an existing Rocketboost
network, the devices were joined at the factory. You do not need to join them. If you are
adding these devices to an existing network, change the hub mode switch on the sender
to Disabled and then join BOTH devices to your existing hub.
Use this procedure only if you need to rejoin the transmitter and speaker. This procedure
is not required for normal operation as devices were joined at the factory. To connect
these devices to an existing hub device that you own, follow the same instructions: Join
15V DC
the sender/receiver to your existing hub, then join the wireless speaker to your existing
hub. Note: You can only join devices to the hub unit (the one with the green LED).
Rocketboost device
BASS
A Set the HUB STATUS switch to ENABLE if this is your first Rocketboost product set.
15V DC
• The LED lights green when the HUB STATUS switch is set to ENABLE.
• The LED lights blue when the HUB STATUS switch is set to DISABLE.
B Press and hold the button on the sender/receiverfor more than three seconds to
put it into joining mode. The LED starts blinking rapidly and the unit will stay in Join
mode for 30 seconds.
C Press the Power/Join button on the wireless speaker for more than three seconds
so the sender and wireless speaker will enter connection mode.
• The LED lights steadily if the link is activated between both of the units.
• The LED blinks at a slower rate if the communication link is not successful.
D Once the link is established, if the Source LED on the wireless speaker is not
illuminated, press the Source button to toggle to the next source. If the LED is still
not illuminated, check that your source is powered up.
For further details, see instructions in the user manual for joining new devices to an
existing Rocketboost network.
Supplied
4 Listening to Music
To listen to music:
To audio
A Turn on the sender and the wireless speaker. Make sure that the wireless
output jack
speaker is fully charged (if using Batteries) and there is an active link
between the sender and the wireless speaker. An active link will be
indicated by the Power LED showing a solid blue.
B Make sure the volume is turned up to about 80% of maximum volume.
C Adjust the volume level on your wireless speaker. If you have multiple
streams in your Rocketboost network, press the Source button on the
wireless speaker to hear the next stream.
Repeated pressing of the SOURCE button will toggle through available
sources.
TX LED
ENGLISH 09-0536
QUICK SETUP GUIDE
