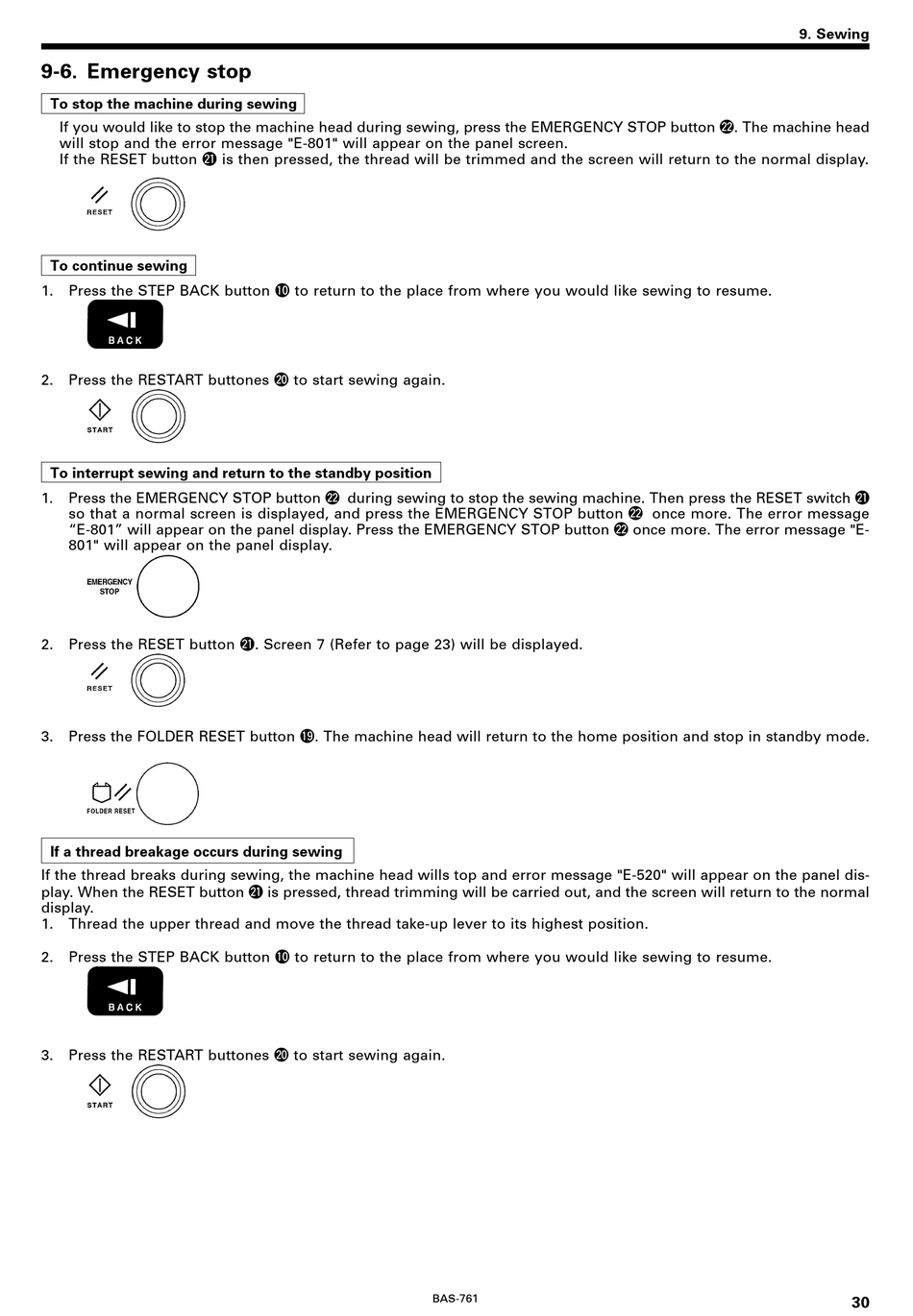

9-6. Emergency stop

To stop the machine during sewing
If you would like to stop the machine head during sewing, press the EMERGENCY STOP button @ 2 . The machine head
will stop and the error message "E-801" will appear on the panel screen.
If the RESET button @ 1 is then pressed, the thread will be trimmed and the screen will return to the normal display.
To continue sewing
1. Press the STEP BACK button ! 0 to return to the place from where you would like sewing to resume.
2. Press the RESTART buttones @ 0 to start sewing again.
To interrupt sewing and return to the standby position
1. Press the EMERGENCY STOP button @2 during sewing to stop the sewing machine. Then press the RESET switch @1
so that a normal screen is displayed, and press the EMERGENCY STOP button @2 once more. The error message
"E-801" will appear on the panel display. Press the EMERGENCY STOP button @ 2 once more. The error message "E-
801" will appear on the panel display.
2. Press the RESET button @1 . Screen 7 (Refer to page 23) will be displayed.
3. Press the FOLDER RESET button !9 . The machine head will return to the home position and stop in standby mode.
If a thread breakage occurs during sewing
If the thread breaks during sewing, the machine head wills top and error message "E-520" will appear on the panel dis-
play. When the RESET button @ 1 is pressed, thread trimming will be carried out, and the screen will return to the normal
display.
1. Thread the upper thread and move the thread take-up lever to its highest position.
2. Press the STEP BACK button ! 0 to return to the place from where you would like sewing to resume.
3. Press the RESTART buttones @ 0 to start sewing again.
BAS-761
9. Sewing
30
