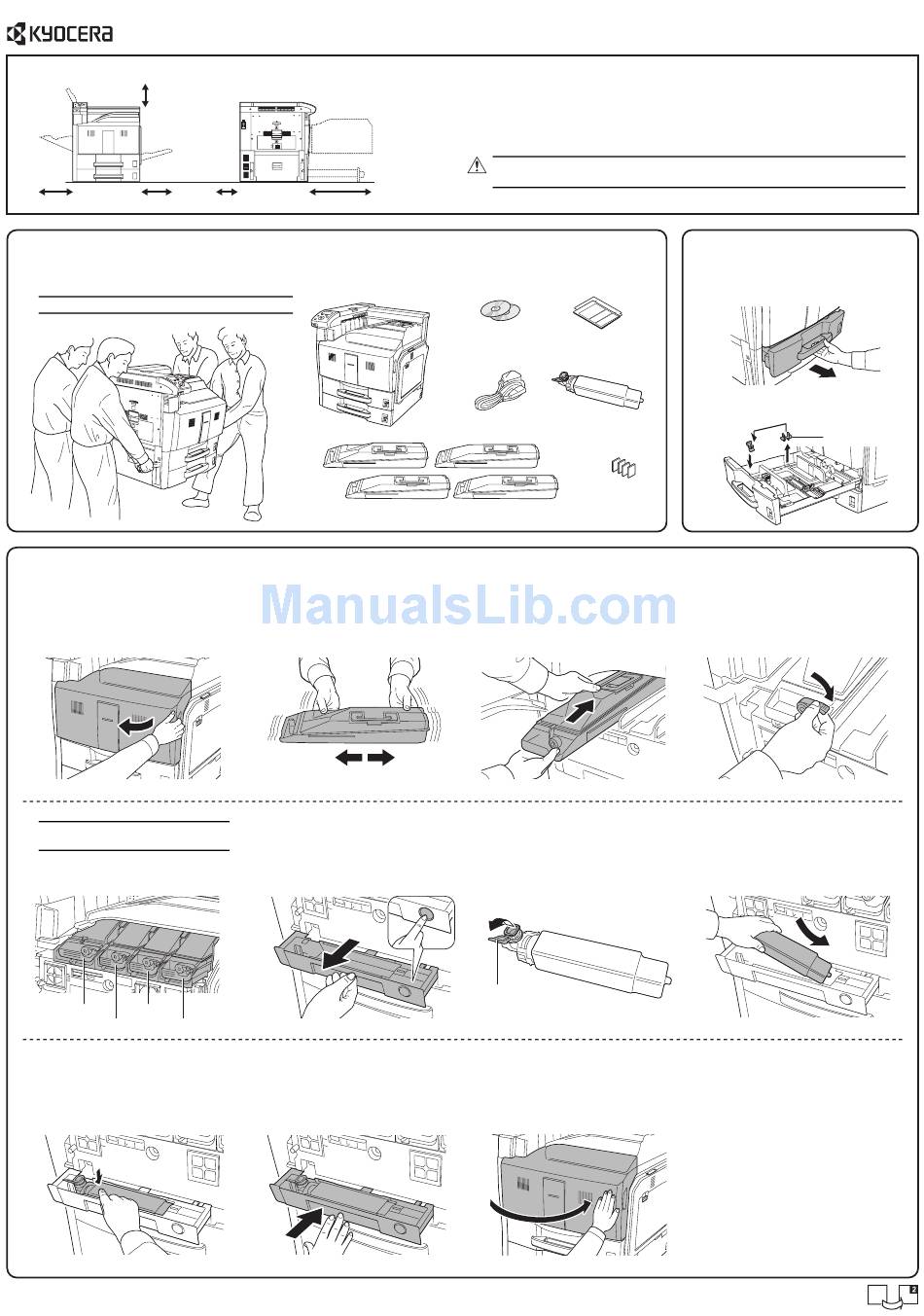

Kyocera FS-C8500DN Installation Manual

FS-C8500DN

Clearance

400 mm
(15-3/4")
300 mm (11-13/16") 300 mm (11-13/16") 100 mm (3-15/16")
1

Unpacking

1
Unpack the printer and all its included components.
Important:
The printer must be carried by four persons.
3

Installing the Toner Container and Waste Toner Box

1
Open the front cover.
Note:
Ensure the toner container is in the
correct location for that color.
Black (K) Cyan (C)
Yellow (Y) Magenta (M)
8
Press on the left edge of the new waste
toner box to lock it.
1,000 mm (39-3/8")
2
Check the parts and components.
Printer
Toner Containers (4)
2
Hold the toner container with both
hands and shake it from side to side
several times so that the toner is
uniformly distributed inside.
5
Press the release button and pull out
the waste toner tray.
9
Press the specified position to set the
waste toner tray. When the tray
reaches the correct position, it locks
into place with a "click" sound.

Installation Guide

Environment

• Temperature: 10 to 32.5 °C (50 to 90.5 °F) The humidity should be 70 % or less when the
temperature is 32.5 °C (90.5 °F)
• Humidity: 15 to 80 %RH The temperature should be 30 °C (86 °F) or less when the humidity
is 80 %
• Power Supply: 120 V AC, 60 Hz, 12 A / 220 to 240 V AC, 50/60 Hz, 7.2 A
CAUTION: Be sure to provide enough space around printer. Prolonged use
without sufficient clearance may cause overheating.
CD-ROMs Manuals and Other
Printed Materials
Power Cord Waste Toner Box
Paper Size
Sheets (4)
3
Hold the toner container with both
hands and gently push it in.
6
Open the cap of the waste toner box.
Cap
10
Close the front cover.
2
Removing the Lift Plate
Stoppers
1
Pull out the paper cassettes 1 and 2.
2
Remove the lift plate stopper and
attach it to the storage location.
Lift Plate Stopper
4
Turn the toner container release lever
to the horizontal position.
Follow the procedure above to install
the other color toner containers.
7
Install the waste toner box.
