Setting The Bios Configuration Jumper; Bios Configuration Jumper Block - Intel BOXD945GCLF2D Product Manual

Installing and Replacing Desktop Board Components

Setting the BIOS Configuration Jumper

NOTE
Always turn off the power and unplug the power cord from the computer before
changing a jumper. Moving the jumper with the power on may result in unreliable
computer operation.

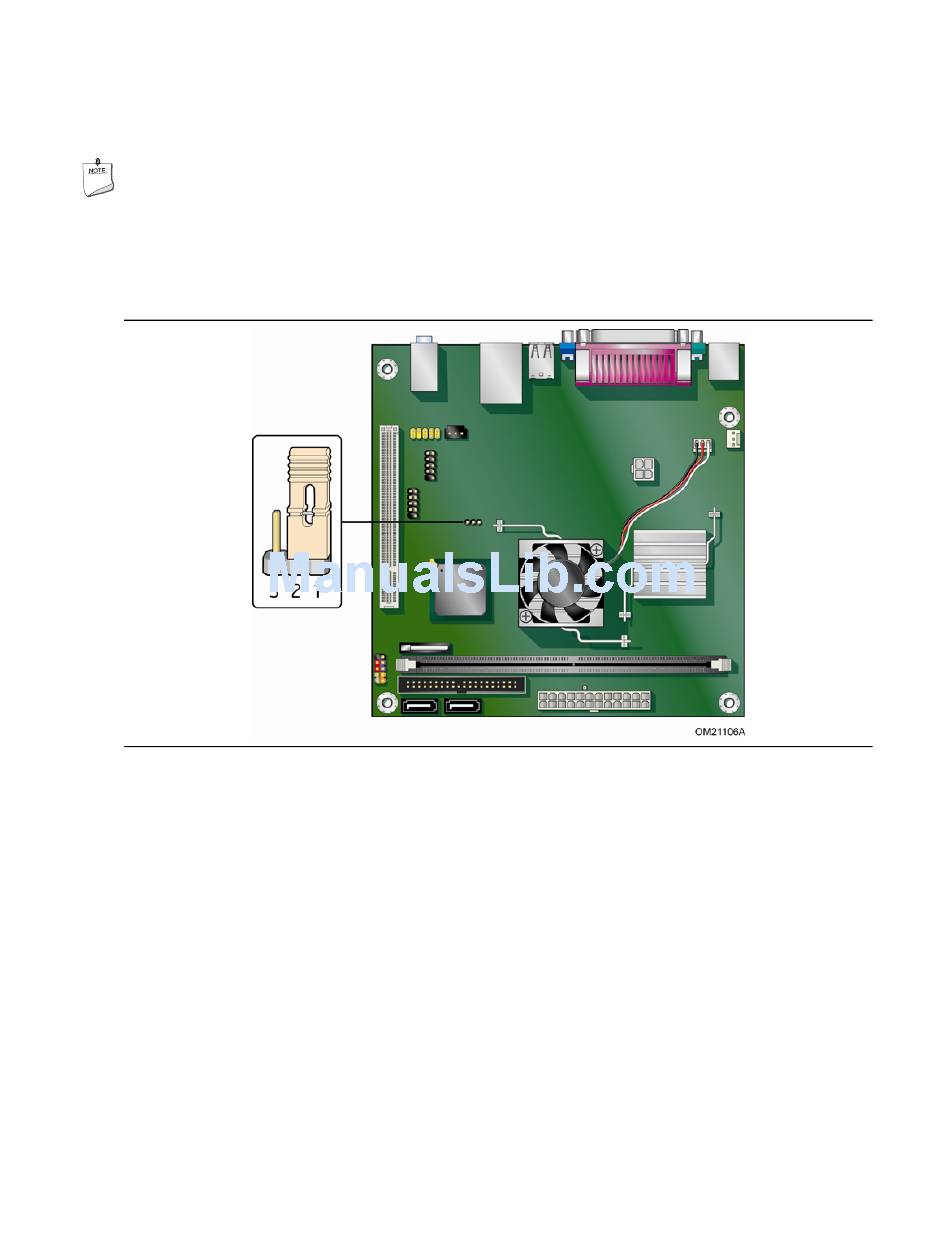

Figure 14 shows the location of the Desktop Board's BIOS configuration jumper block.
Figure 14. BIOS Configuration Jumper Block
The three-pin BIOS jumper block enables all board configuration to be done in the
BIOS Setup program. Table 8 shows the jumper settings for the Setup program
modes.
