PHASER5400TECH
Technical Instructions
CORPORATE
LOS ANGELES, USA
US 1 800 394.9900
Int'l +1 818 837.8100
FAX 1 800 394.9910
Int'l +1 818 838.7047
ATLANTA, USA
US 1 877 676.4223
Int'l +1 678 919.1189
FAX 1 877 337.7976
Int'l +1 770 516.7794
KANSAS CITY, USA
US 1 913 871.1700
FAX 1 913 888.0626
MIAMI, USA
US 1 800 595.4297
Int'l +1 305 594.3396
FAX 1 800 522.8640
Int'l +1 305 594.3309
NEW YORK, USA
US 1 800 431.7884
Int'l +1 631 588.7300
FAX 1 800 431.8812
Int'l +1 631 588.7333
TORONTO, CAN
CAN 1 877 848.0818
Int'l +1 905 712.9501
FAX 1 877 772.6773
Int'l +1 905 712.9502
BUENOS AIRES, ARG
ARG 0810 444.2656
Int'l +011 4583.5900
FAX +011 4584.3100
MELBOURNE, AUS
AUS 1 800 003. 100
Int'l +62 03 9561.8102
FAX 1 800 004.302
Int'l +62 03 9561-7751
SYDNEY, AUS
AUS 1 800 003.100
Int'l +62 02 9648.2630
FAX 1800 004.302
Int'l +62 02 9548.2635
MONTEVIDEO, URY
URY 02 902.2001
Int'l +5982 902.2001
FAX +5982 900.0858
JOHANNESBURG, S.A.
S.A. +27 11 974.6155
FAX +27 11 974.3593
SÃO PAULO, BRAZIL
Int'l +55 11 5524.8000
RAANANA, ISRAEL
ISR 09 760.12.39
Int'l +972 9760.12.39
ISR 052.38.555.82
Int'l +972 5238.555.82
E-mail: info@futuregraphicsllc.com
REV. 12/27/06
Printers
Xerox Phaser 5400/B
Xerox Phaser 5400/N
Xerox Phaser 5400/DT
Xerox Phaser 5400/DX
Photo 1
Photo 2
Photo 3
OEM Info

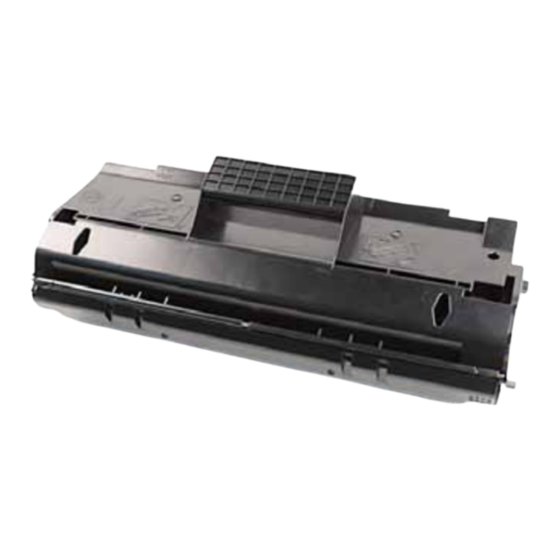

113R00495
Black
(Standard Capacity – 20K pages)
Step 1
Hold the cartridge with the gear side facing you.
Use a spring hook to remove the tension spring.
(See Photo 1)
Step 2
Using the HP2600PINREMTOOL to remove the
cartridge pin. Push the HP2600PINREMTOOL in
the center of the pin and turn clockwise until the
tool bores a hole and tightens onto the pin.
When tightened on the pin, you will be able to
turn the pin a ¼ turn counter clockwise. Lift the
pin straight out of the hole.
NOTE: The pin damages easily. Do not use
excessive pressure boring the hole or pulling on
the pin. (See Photo 2, 3, 4)
Photo 4
Website:
Tools
Tools & Supplies Needed:
Tools required:
#1 Phillips Screwdriver
Small Flat Blade Screwdriver
HP2600PINREMTOOL
Spring Hook
Needle-nose Pliers.
Supplies Required:
Padding Powder
Soft Lint-Free Cloth
Cotton Swabs
Conductive Grease
Anhydrous Isopropyl Alcohol
MAGCLEANER
Vacuum or dry Compressed Air.
www.futuregraphicsllc.com
1
Advertisement
Related Manuals for Xerox 5400DX - Phaser B/W Laser Printer
Summary of Contents for Xerox 5400DX - Phaser B/W Laser Printer
- Page 1 PHASER5400TECH Technical Instructions Printers OEM Info Tools CORPORATE Tools & Supplies Needed: Xerox Phaser 5400/B 113R00495 Tools required: LOS ANGELES, USA #1 Phillips Screwdriver Black Xerox Phaser 5400/N US 1 800 394.9900 Small Flat Blade Screwdriver Int’l +1 818 837.8100 (Standard Capacity –...
- Page 2 PHASER 5400 Technical Instructions Photo 8 Step 5 Remove the drum and set aside in a light pro- tected area. Step 3 Rotate the cartridge to the fill plug side. Repeat Step 2 to remove the cartridge pin. Separate the cartridge sections and put aside the toner unit.
- Page 3 PHASER 5400 Technical Instructions Photo 15 Step 10 Apply conductive grease to the black PCR saddle block. Install PCR into saddle blocks. Step 14 (See Photo 15&16) Starting on the toner unit, remove the gear side end cap. (See Photo 21) Photo 16 Photo 21 Photo 17...
- Page 4 PHASER 5400 Technical Instructions Photo 26 Step 18 Remove the doctor blade. Use a vacuum or dry compressed air to remove toner. Clean Step 16 the doctor blade using a dry, soft, lint-free cloth and set aside for later. Remove from the mag roller: the (See Photo 26&27) latch, latch spacer, gear spacer, and mag roller drive gear.
- Page 5 (¼ turn). (See Photo 36&37) XEROX PHASER 5400 In October of 2001, Xerox released the Phaser 5400 laser printer. The Xerox Phaser is a 40ppm printer with a maximum monthly duty cycle of 200,000 pages. One cartridge capacity is available, 20K pages.
