Eizo eClient SC1 Specifications

STAND TYPE
WINDOWS-BASED
TERMINALS
Flexible
Network
Support

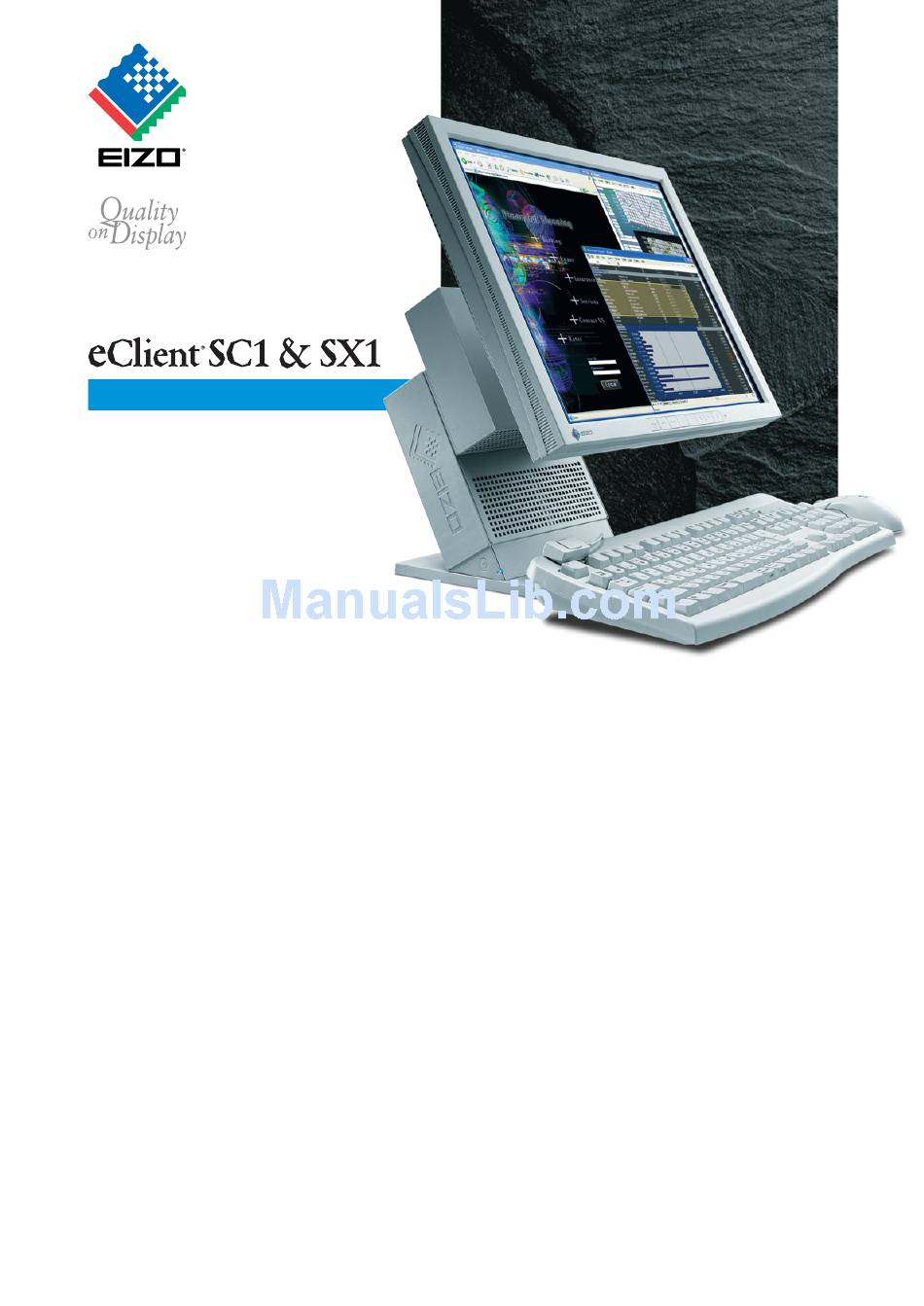

EIZO introduces two new models
in its eClient series of WBTs, designed
for business, healthcare, retail and other
users desiring greater flexibility, security
and expandability. Both the SC1 and
SX1 feature a space-efficient design that
allows mounting of almost any LCD
monitor built to the VESA standard.
They provide a choice of operating
systems — Windows CE .NET 4.2 with
the SC1 or Windows XP Embedded
with the SX1 — as well as support for
the latest versions of the Microsoft RDP
and Citrix ICA protocols. When running
applications from Windows Server
2003, they output 24-bit color images.
They also offer a DVI-I output and a full
complement of connectors, including a
PCMCIA port. EIZO's Network Admin-
istrator 3 software allows extensive
server side control over each eClient and
can be downloaded free of charge.
W I D E M O N I T O R C O M PAT I B I L I T Y
Both eClient models allow the mounting of almost any
LCD monitor that matches the VESA mounting standard, elimi-
nating the need for separate terminal and monitor units on the
desktop. They support resolutions up to 1280 × 1024 and offer
three-stage height adjustment and 30° tilt adjustment for flexible
positioning. The eClient's power supply is built in and provides
power directly to the monitor.
C H O I C E O F T W O
O P E R AT I N G S Y S T E M S
The eClient SC1 utilizes the Windows CE .NET 4.2
operating system, ideal for systems running applications only on
the server. The SX1 comes with Windows XP Embedded, giving
you the additional flexibility of running applications locally as
well. Both OS include a built-in Internet Explorer browser.
E X T E N S I V E C O N N E C T I O N S
The eClient SC1 and SX1 come equipped with a wide range
of connectors: 10Base-T/100Base-TX Ethernet connector for
smooth communication with the terminal server, serial and parallel
ports, PS/2 ports for the keyboard and mouse, a PCMCIA Type II
slot, and two USB downstream ports for additional peripherals.
