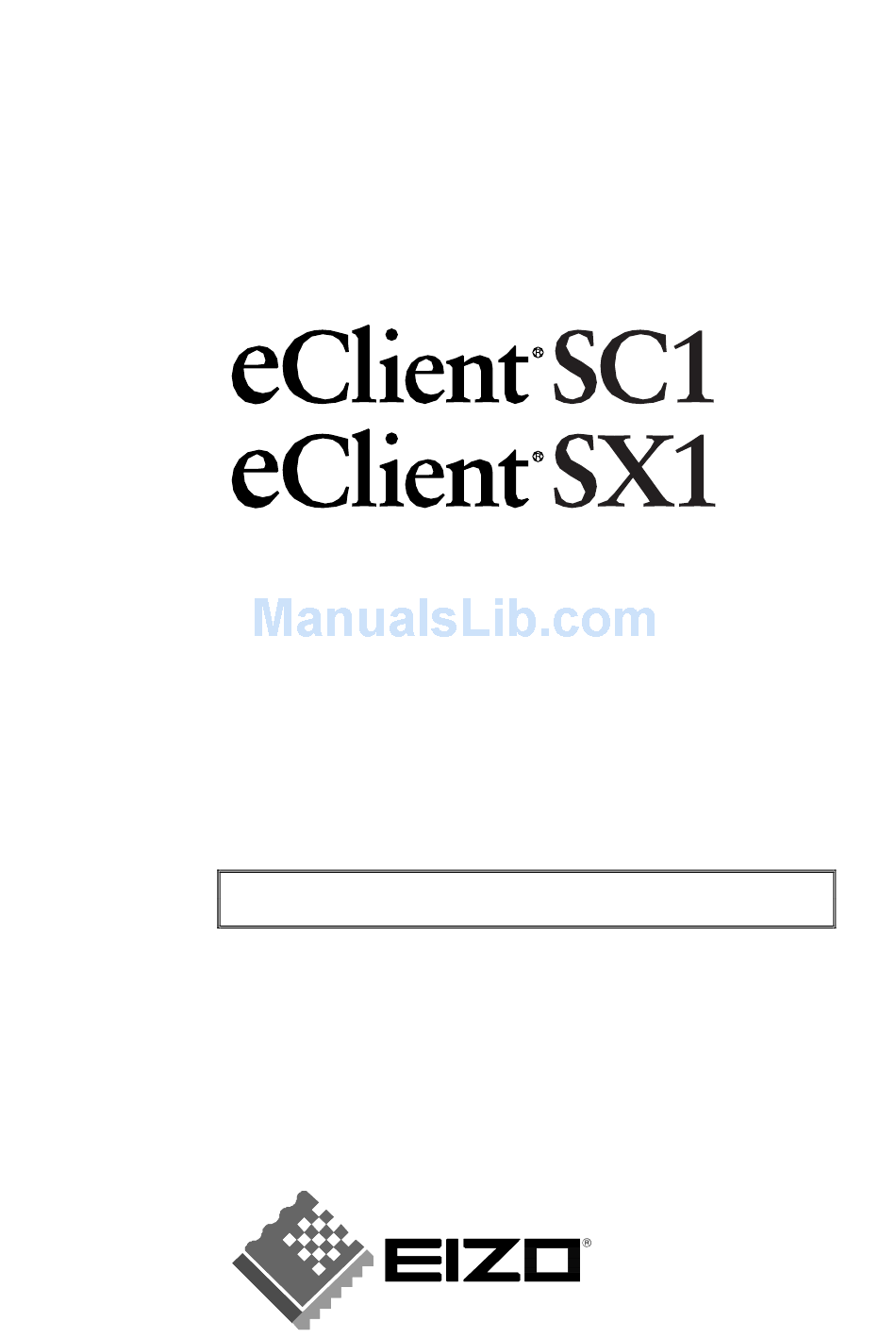

- Page 1 User’s Manual Stand Type Windows-based Terminal Contact your system administrator for details such as settings of the unit.
-
Page 2: Safety Symbols
Indicates a prohibited action. Indicates to ground for safety. Copyright© 2004 EIZO NANAO CORPORATION All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO NANAO CORPORATION. -
Page 3: Table Of Contents
Table of Contents PRECAUTIONS ... 4 1. INTRODUCTION ... 8 1-1. General Description ...8 1-2. Features ...8 1-3. Package Contents...9 2. OPERATION... 10 2-1. Controllers...10 2-2. How to control (SC1) ...12 2-3. How to control (SX1) ...18 3. SPECIFICATIONS ... 23 LIMITED WARRANTY... -
Page 4: Precautions
[Location of the Caution Statements] Rear WARNING The Monitor Attachment Unit supports only EIZO L767, L567, L557, L367. Mounting other monitors to the unit may result in injury or equipment damage. Contact your system administrator for details of the attachment. - Page 5 WARNING Keep small objects or liquids away from the unit. Small objects accidentally falling through the ventilation slots into the cabinet or spillage into the cabinet may result in fire, electric shock, or equipment damage. If an object or liquid falls/spills into the cabinet, unplug the unit immediately. Have the unit checked by a qualified service engineer before using it again.
- Page 6 English WARNING Maximum load capacity of AC outlet is 2 A. Connecting unit with more than 2 A may result in fire, electric shock or other damage. Use the correct voltage. The unit is designed for use with a specific voltage only. Connection to another voltage than specified in this User’s Manual may cause fire, electric shock, or equipment damage.
- Page 7 CAUTION Handle with care when carrying the unit. Disconnect the power cord and signal cables and remove the optional unit. Moving the unit with the cord or the option attached is dangerous. It may result in injury. Do not block the ventilation slots on the cabinet. Do not place any objects on the ventilation slots.
-
Page 8: Introduction
English 1. INTRODUCTION Thank you very much for purchasing the EIZO eClient SC1/SX1. 1-1. General Description The SC1/SX1 is used as a thin client, which connects to the terminal service installed Windows Terminal Server (Hereafter defined WTS) as listed below and accesses applications or data provided from the WTS. -
Page 9: Package Contents
NOTE • A keyboard is not included. It must be purchased separately. • Please use the enclosed mouse. EIZO NANAO CORPORATION will no be held responsible for accident or damage caused by the use of a mouse manufactured by other companies. -
Page 10: Operation
SC1/SX1 can be used simultaneously even if the switch box is connected. Please refer to pg. 11 for details on the power supply control switch (POWER SYNC). 2. OPERATION * EIZO L567 used as an example State of the unit • Operation mode •... - Page 11 NOTE • When turning off/on the unit, leave the unit off for a few seconds before turning it on again. • Do your part to conserve energy, turn off the unit when your finished using it. Complete energy use can only be stopped by disconnecting the unit from the power supply.
-
Page 12: How To Control (Sc1)
English 2-2. How to control (SC1) Logging on or off the WTS (SC1) Logging on to the WTS Turn on the SC1. The “Terminal Connection Manager” dialog box will be displayed. Please follow the instruction depending on the network environment of the SC1. (Contact your system administrator for the connection environment.) (1) Connecting and logging on to the WTS through the local network: Go to step 3. - Page 13 Click the [Connections] tab. Select the desired [Connection Name] and click [Connect] (or simply double click the connection name). The SC1 connects to the WTS and the “Log On to Windows” dialog box is displayed. Enter your [User name] and [Password], and then click [OK] to log on to the WTS. After logging on, the SC1 allows you to use the Microsoft Windows applications running on the WTS.
- Page 14 English Logging off the WTS If your SC1 starts its operation with a desktop: Log off the WTS. (1) Close all the applications. (2) Select [Start] on the taskbar. (3) Select [Shut Down...] and select [Logoff] of the [Shut Down Windows] dialog box.
- Page 15 If your SC1 starts its operation with an application: Log off the WTS. Close the applications to log off from the WTS. The “Terminal Connection Manager” dialog box will be displayed. If it’s connected through a dial-up, click the active button on the right bottom of the screen.
- Page 16 English Opening/Closing the Local Web Browser Opening the Local Web Browser Turn on the SC1. The “Terminal Connection Manager” dialog box will be displayed. Please follow the instruction depending on the network environment of the SC1. (Contact your system administrator for the connection environment.) (1) If the web server is on the same network (Intranet): Go to step 3.
- Page 17 Closing the Local Web Browser (SC1) Close the local web browser. Select [Close] on the [File] and close the local web browser. The “Terminal Connection Manager” dialog box will be displayed. If a dial-up connection is made, click the active button on the right bottom of the screen.
-
Page 18: How To Control (Sx1)
English 2-3. How to control (SX1) Logging on or off the WTS (SX1) Logging on to the WTS Turn on the SX1. The Desktop screen will be displayed. When using the RDP protocol, proceed to step 3, and when using the ICA protocol, proceed to step 4. - Page 19 In case the connection name doesn’t exist on the desktop (1) Double click the [Remote Desktop Connection] icon to open the [Remote Desktop Connection] dialog box. Click [Start]-[Remote Desktop Connection] to open the [Remote Desktop Connection] dialog box. Click [Start]-[Program]-[Remote Desktop Connection] to open the [Remote Desktop Connection] dialog box.
- Page 20 English (2) The [Citrix Program Neighborhood] will be displayed. Double click the connection icon (The example below is “ICA1”). When the SX1 connects to the WTS, the “Log On to Windows” dialog box is displayed. Enter your [User name] and [Password], and then click [OK] to log on to the WTS. After logging on, the SX1 allows you to use the Microsoft Windows applications running on the WTS.
- Page 21 Logging off the WTS If your SX1 starts its operation with a desktop: Log off the WTS. (1) Close all the applications. (2) Select [Start] on the taskbar. (3) Select [Shut Down...] and select [Logoff] of the [Shut Down Windows] dialog box.
- Page 22 English Opening/Closing the Local Web Browser (SX1) Opening the Local Web Browser Turn on the SX1. The desktop screen will be displayed. Double click the [Internet Explorer] icon to open the browser. Click [Start]-[Internet Explorer] to open the browser. Click [Start]-[Program]-[Internet Explorer] to open the browser. The local web browser opens.
-
Page 23: Specifications
3. SPECIFICATIONS CPU and Memory Memory Display Color Supported Resolution Complying Protocol Software Complying Software for Windows Terminal Server Mouse Power Supply Power Consumption (without AC outlet connection) Interface Connector Keyboard, Mouse USB Port Parallel Serial Port PC Card Slot Line Output Monaural Microphone... - Page 24 English Environmental Specifications Certifications 100-120 and Standards VAC range 200-240 VAC range Monaural microphone connector doesn’t support SC1. Dimensions SIDE (Left) 3. SPECIFICATIONS Temperature Operating: 5 °C to 35 °C to (41 °F to 95 °F) Storage: -20 °C to 60 °C (-4 °F to 140 °F) Humidity 30 % to 80 % R.H.
-
Page 25: Limited Warranty
EIZO NANAO CORPORATION (“EIZO”) and EIZO authorized distributors warrant, subject to and in accordance with the terms of this warranty, to the original purchaser who purchased the product from EIZO or EIZO authorized distributors that this product shall be free from defects in material and workmanship for a period of three (3) from the date of purchase. -
Page 26: Canadian Notice
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note Use the attached specified cable below or EIZO signal cable with this unit so as to keep interference within the limits of a Class A digital device. - AC Cord Shielded Signal Cable (enclosed) This Class A digital apparatus complies with Canadian ICES-003.
