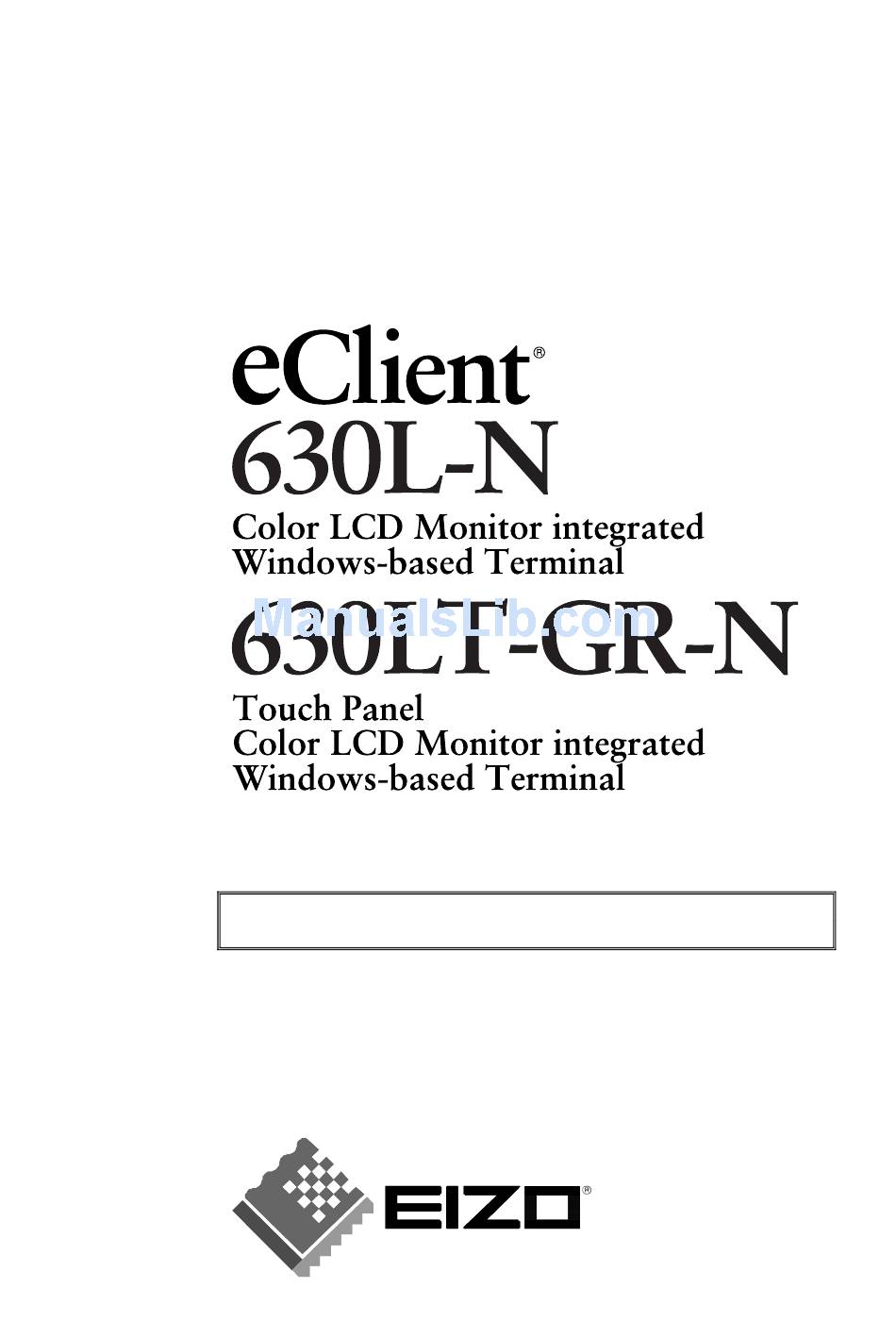

  • Page 1 User’s Manual Please ask your system administrator for details such as settings of the unit.

  • Page 2: Safety Symbols

    EIZO NANAO CORPORATION. EIZO NANAO CORPORATION is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO NANAO CORPORATION's receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PRECAUTIONS ... 4 1. INTRODUCTION ... 9 1-1. General Description ...9 1-2. Features ...9 1-3. Package Contents...10 2. OPERATION... 11 2-1. Logon to a WTS / Logoff from a WTS...12 2-2. Opening/Closing a Local Web Browser...16 3. SPECIFICATIONS ... 18 LIMITED WARRANTY...

  • Page 4: Precautions

    English PRECAUTIONS IMPORTANT! • This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside the region to which it was originally shipped, the product may not perform as stated in the specifications. •...
  • Page 5 WARNING Keep small objects or liquids away from the unit. Small objects accidentally falling through the ventilation slots into the cabinet or spillage into the cabinet may result in fire, electric shock, or equipment damage. If an object or liquid falls/spills into the cabinet, unplug the unit immediately. Have the unit checked by a qualified service engineer before using it again.
  • Page 6 English WARNING The equipment must be connected to a grounded main outlet. Not doing so may result in fire or electric shock. Use the correct voltage. The unit is designed for use with a specific voltage only. Connection to another voltage than specified in this User’s Manual may cause fire, electric shock, or equipment damage.
  • Page 7 CAUTION Handle with care when carrying the unit. Disconnect the power cord and signal cables and remove the optional unit. Moving the unit with the cord or the option attached is dangerous. It may result in injury. When handling the unit, grip the bottom of the unit firmly with both hands ensuring the panel faces outward before lifting.

  • Page 8: Lcd Panel

    English Suggestions for Maximizing Comfort To lessen the chance of possible injury and to increase your comfort and productivity while you operate the unit, we suggest the followings: Avoid less favorable body positioning. Sit back on the chair with your back straight.

  • Page 9: Introduction

    1. INTRODUCTION Thank you very much for purchasing the EIZO eClient 630L-N/630LT-GR-N. 1-1. General Description The 630L-N/630LT-GR-N is a terminal which displays applications on a Windows Terminal Server or a web site and conveys input by a keyboard or a mouse to the Windows Terminal Server.

  • Page 10: Package Contents

    NOTE • A keyboard is not included. It must be purchased separately. • Please use the enclosed mouse. EIZO NANAO CORPORATION will no be held responsible for accident or damage caused by the use of a mouse manufactured by other companies.

  • Page 11: Operation

    2. OPERATION This chapter shows how to start and end 630L-N/630LT-GR-N operation. NOTE • Controllers (1) Speakers (2) Volume (3) Power Indicator Power Indicator Green Yellow [Procedure to return to the operation mode] - Screen saver mode / Power save mode: Operate the mouse or keyboard. (4) Power Button •...

  • Page 12: Logon To A Wts / Logoff From A Wts

    English 2-1. Logon to a WTS / Logoff from a WTS Logon to a WTS Turn on the 630L-N/630LT-GR-N. “Terminal Connection Manager” dialog box is displayed. Please follow the instruction depending on the network environment of the 630L- N/630LT-GR-N. (Ask your system administrator for your connection environment.) (1) Connecting and logging on to a WTS through local network: Go to step 3.
  • Page 13 Click the [Connections] tab. Select the desired [Connection Name] and click [Connect] (or simply double click the connection name). The 630L-N/630LT-GR-N connects to the WTS and the “Log On to Windows” dialog box is displayed. Type your [User name] and [Password], then click [OK] to log on to the WTS. After logon, the 630L-N/630LT-GR-N allows you to use Microsoft Windows applications running on the WTS.
  • Page 14 English Logoff from a WTS If your 630L-N/630LT-GR-N starts its operation with a desktop: Log off from the WTS. (1) Close all applications. (2) Select [Start] on the taskbar. (3) Microsoft Windows NT Server 4.0 Terminal Server Edition: Select [Logoff]. Microsoft Windows 2000 Server / Advanced Server / Datacenter Server: Select [Shut Down...] and select [Logoff] of the [Shut Down Windows] dialog box.
  • Page 15 If your 630L-N/630LT-GR-N starts its operation with an application: Log off from the WTS. Close applications to log off from the WTS. “Terminal Connection Manager” dialog box is displayed. If a dial-up connection is running, click the active button on the right bottom of the screen.

  • Page 16: Opening/Closing A Local Web Browser

    English 2-2. Opening/Closing a Local Web Browser Opening a Local Web Browser Turn on the 630L-N/630LT-GR-N. “Terminal Connection Manager” dialog box is displayed. Please follow the instruction depending on the network environment of the 630L- N/630LT-GR-N. (Ask your system administrator for your connection environment.) (1) If the web server is on the same network (Intranet): Go to step 3.
  • Page 17 Closing a Local Web Browser Close the local web browser. Select [Close] on the [File] and close the local web browser. “Terminal Connection Manager” dialog box is displayed. If a dial-up connection is made, click the active button on the right bottom of the screen.

  • Page 18: Specifications

    English 3. SPECIFICATIONS 630L-N CPU and Memory Memory Speakers Display LCD Panel Dot Pitch Resolution Viewable Image Size Display Color Complying Protocol Software Complying Software for Windows Terminal Server Mouse Power Supply Power Consumption Interface Connector Keyboard, Mouse Parallel Serial Port PC Card Slot Line Output Monaural...
  • Page 19 630LT-GR-N CPU and Memory Memory Speakers Display LCD Panel Dot Pitch Resolution Viewable Image Size Display Color Touch Panel Complying Protocol Software Complying Software for Windows Terminal Server Mouse Power Supply Power Consumption Interface Connector Keyboard, Mouse Parallel Serial Port PC Card Slot Line Output Monaural...
  • Page 20 English Dimensions 630L-N 630LT-GR-N 306 (12.0) 135 (5.3) 3. SPECIFICATIONS 395 (15.6) 55 (2.2) 375 (14.8) 306 (12.0) 3 (0.1) 135 (5.3) 40 (1.6) 164 (6.5) 395 (15.6) 59 (2.3) 375 (14.8) 3 (0.1) 34 (1.3) 164 (6.5) Unit: mm (inches) 75 (3.0) 75 (3.0)

  • Page 21: Limited Warranty

    (3) years from the date of purchase. If the product includes a mouse and/or a keyboard of the EIZO brand, the mouse and the keyboard are warranted to be free from defects in material and workmanship for a period of one (1) year from the date of purchase.
  • Page 22 [Applicable to gray cabinet version of 630L-N only.] Why do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture.
  • Page 23 Environmental Requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs.

  • Page 24: Canadian Notice

    For U.S.A, Canada, etc. (rated 100-120 Vac) Only WARNING This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 25 I’UNION DE BRAN CHE SWICO. http://www.eizo.com/cotact/index.html Recycling Information for customers in USA: All recycling information is placed in the EIZO Nanao Technologies, Inc’s website. http://www.eizo.com/contact/index.html Återvinnings information för kunder i Sverige: All information om återvinning finns på Eizo Nordics hemsida:...
