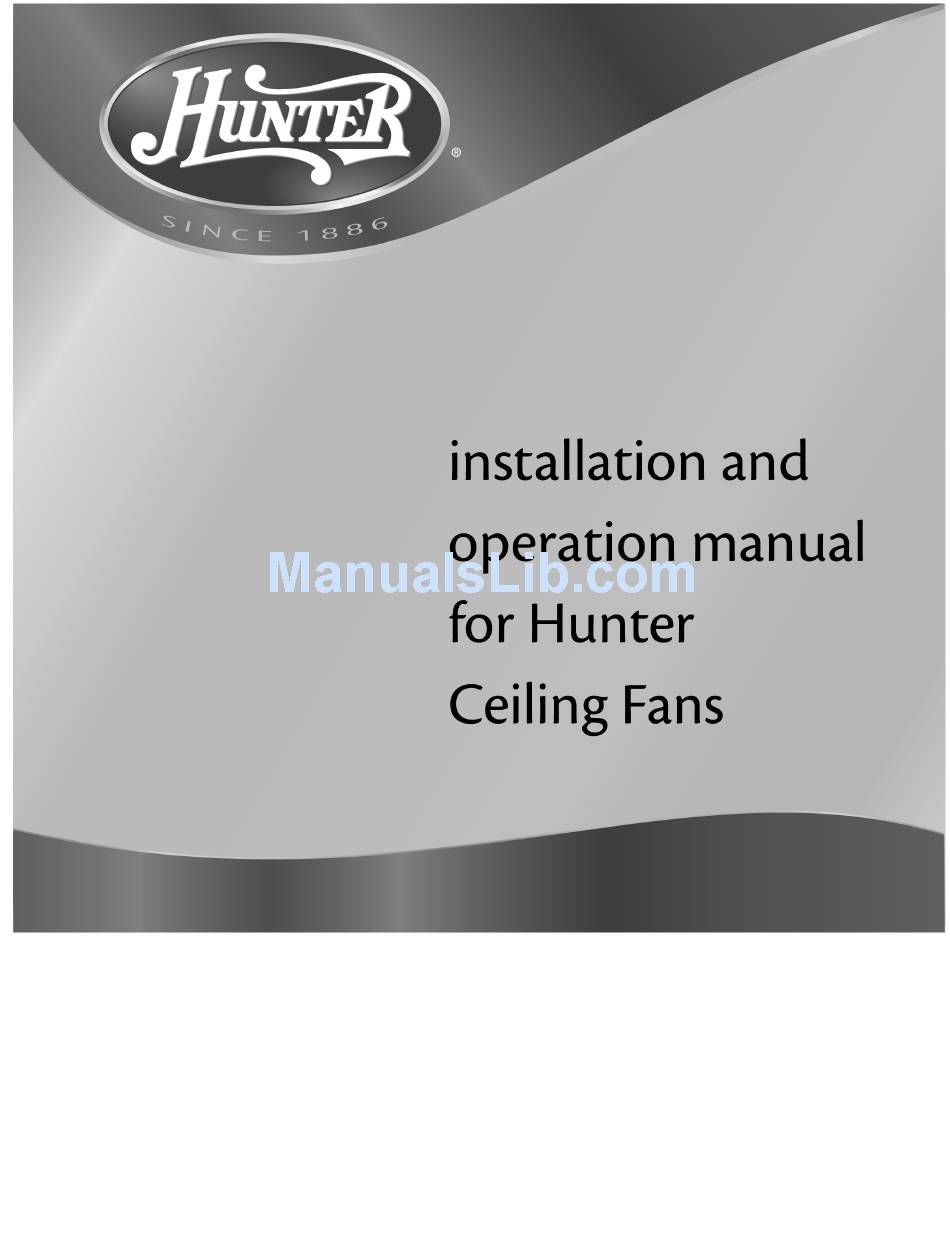

Welcome Your new Hunter® ceiling fan is an addition to your home or office that will provide comfort and performance for many years. is installation For Your Records and Warranty and operation manual gives you complete instructions for installing Assistance and operating your fan.
Page 3
Understanding Mounting and Installer’ s Choice® Hunter’s patented 3-position mounting system provides you maximum installation fl exibility and ease. You can install your Hunter fan in one of three ways, depending on ceiling height and your preference: Low Profi le, Standard, or Angle mounting. e steps in this manual include instructions for all three Installer’s Choice mounting methods.
• Drill holes for and install wood screws. • Identify and connect electrical wires. • Lift 40 pounds. If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer or electrician. Gathering the Tools You will need the following tools for installing the fan: •...
Do not over tighten. Steps 2-3 – 2-5 Flat Washer 3” Screw For Angled Ceilings: Be sure to orient the ceiling plate so that the arrows printed on the ceiling plate are pointing towards the ceiling peak. 41888-01 • 02/01/05 Hunter Fan Company...
3-5. Raise the fan and place the hook on the ceiling plate through the U-shaped hole in the rim. Go to 4 • Wiring the Fan. WARNING: Fan may fall if not assembled as directed in these installation instructions. Step 3-5 U-shaped Hole #8-32 x 1” Screw Hunter Fan Company 41888-01 • 02/01/05...
• e black power wire from the ceiling to the black wire from the fan 4-4. Push all wires and wire nuts back through the ceiling plate hole into the outlet box. Wire Nut 41888-01 • 02/01/05 Hunter Fan Company...
2. Press fi rmly on opposite sides of the ring towards the canopy. e tabs will fl ex out releasing the trim ring from the canopy Step 5-3 Steps 5-4 – 5-5 Canopy Screw Hunter Fan Company 41888-01 • 02/01/05...
6 • Assembling the Blades Hunter fans use several styles of fan blade irons (brackets that hold the Step 6-1 (Detail) blade to the fan). 6-1. Your fan may include blade grommets. If your fan has grommets, insert them by hand into the holes on the blades.
Attach the lower switch housing to the upper switch Plug Connector housing with three #6-32 x 3/8” housing assembly screws. Note: You can customize your Hunter fan with a number of accessory light kits. Steps 7-5 – 7-6 Lower...
To Change Airfl ow Direction Turn the fan off and let it come to a complete stop. Slide the reversing switch on the fan to the opposite position. Restart fan. Reversing Switch 41888-01 • 02/01/05 Hunter Fan Company...
3. Turn power off , support fan very carefully, and check that the hanger ball is properly seated. If you need parts or service assistance, please call 888-830-1326 or visit us at our WEB site at http://www.hunterfan.com. Hunter Fan Company 2500 Frisco Avenue Memphis, Tennessee 38114 Hunter Fan Company 41888-01 • 02/01/05...
