2.4.3

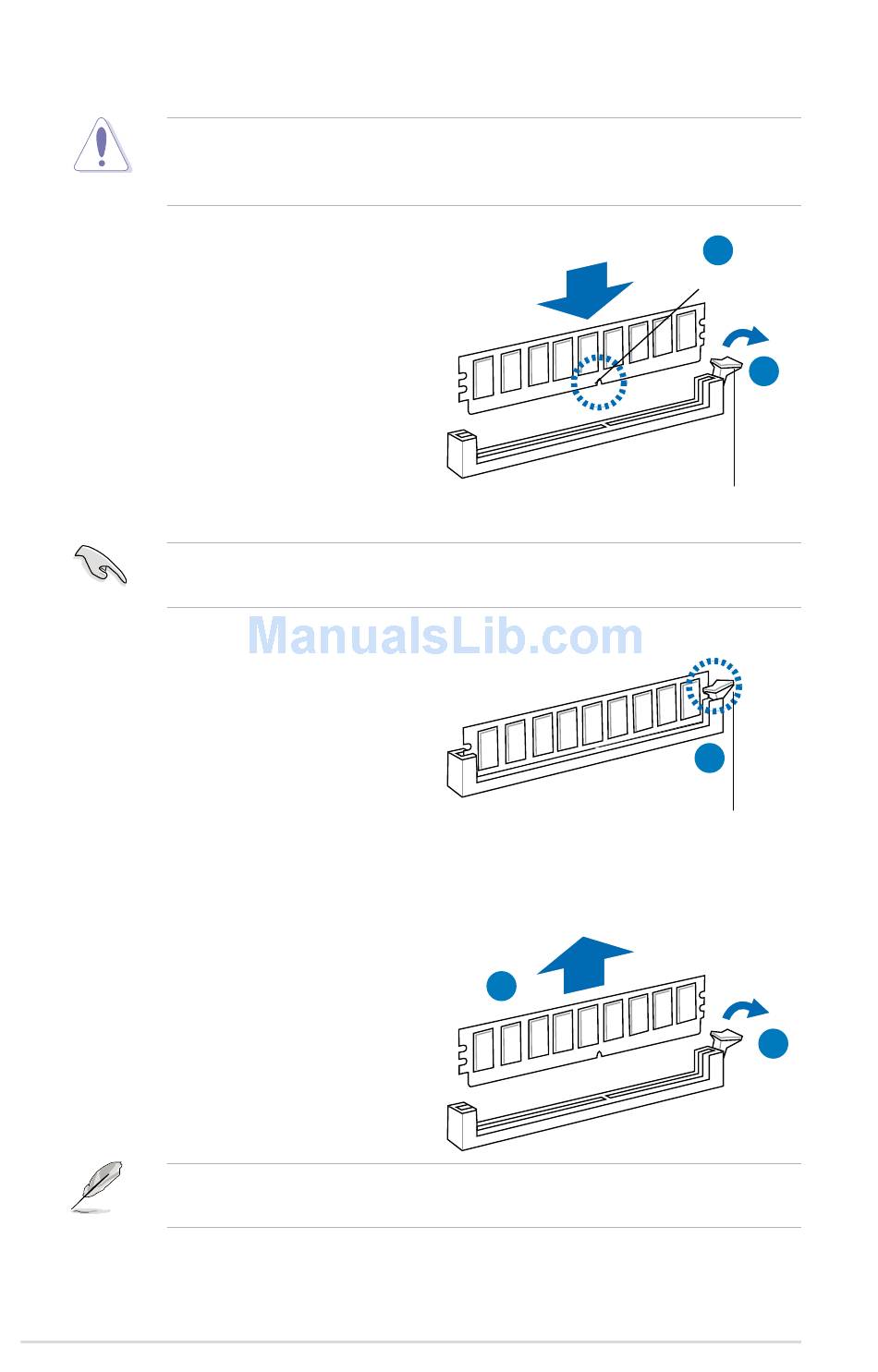

Installing a DIMM

Ensure to unplug the power supply before adding or removing DIMMs or other
system components. Failure to do so may cause severe damage to both the
motherboard and the components.
1. Unlock a DIMM socket by
pressing the retaining clip
outward.
2. Align a DIMM on the socket
such that the notch on the DIMM
matches the break on the socket.
A DIMM is keyed with a notch so that it fits in only one direction. DO NOT force
a DIMM into a socket to avoid damaging the DIMM.
3. Firmly insert the DIMM into the
socket until the retaining clip
snaps back in place and the
DIMM is properly seated.
2.4.4

Removing a DIMM

Follow these steps to remove a DIMM.
1. Press the retaining clip outward
to unlock the DIMM.
Support the DIMM lightly with your fingers when pressing the retaining clips.
The DIMM might get damaged when it flips out with extra force.
2. Remove the DIMM from the socket.
2-24
Unlocked retaining clip
Locked Retaining Clip
2
Chapter 2: Hardware information
2
DIMM notch
1
3
1
