Summary of Contents for Eiki Smoke Resistant Box AH-69601

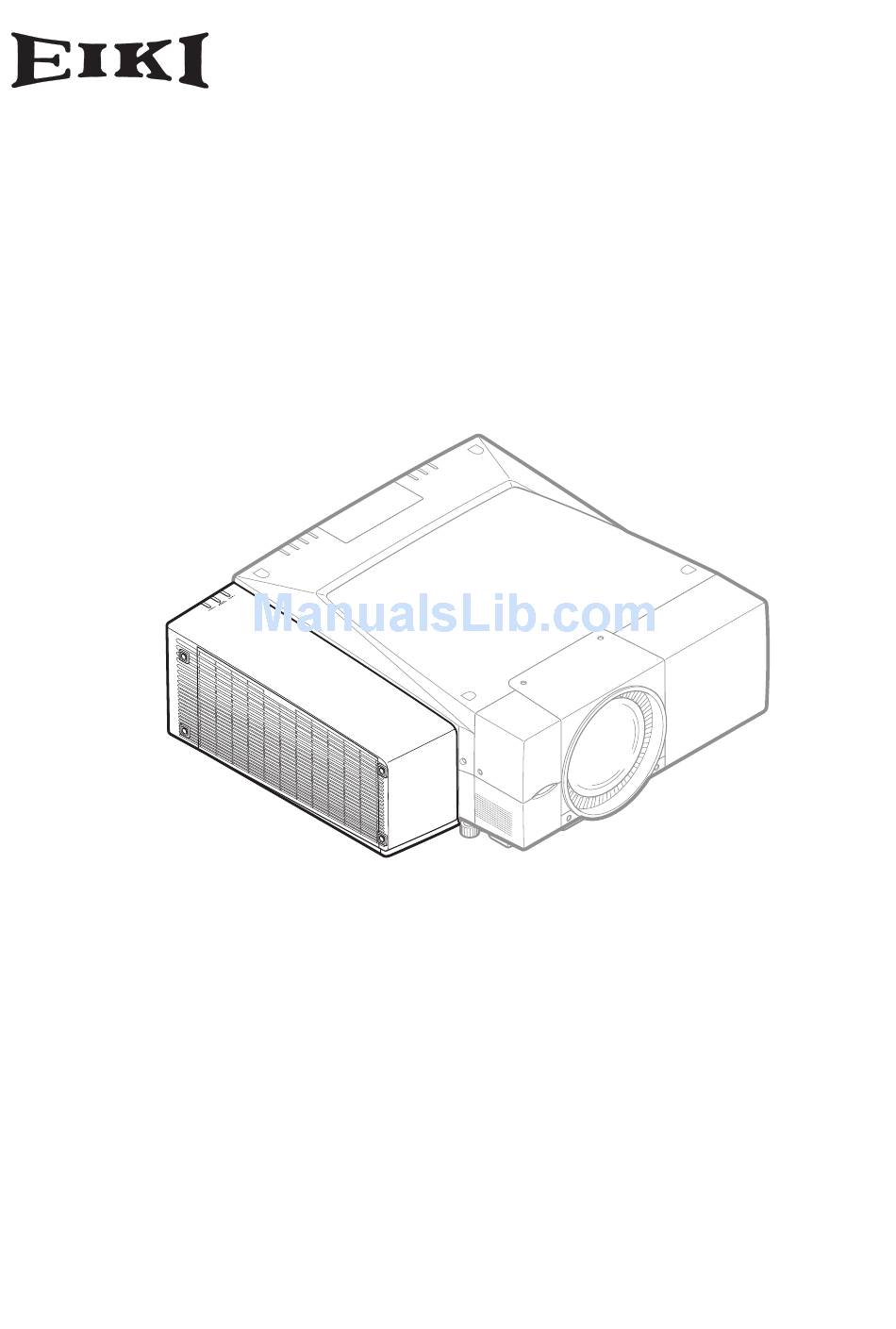

- Page 1 Smoke Resistant Box AH-69601 MODEL OWNER’S MANUAL...
-
Page 2: To The Owner
APPLIANCE TO RAIN OR MOISTURE. Provide appropriate space on the top, sides and rear of the Projector and Smoke Resistant Box for allowing air circulation and cooling the Projector. Minimum clearance must be maintained. If the Projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained. -
Page 3: Table Of Contents
MAINTENANCE ················································································································· 11 TROUBLESHOOTING········································································································ 11 DIMENSIONS····················································································································· 12 SPECIFICATIONS ·············································································································· 12 • The Smoke Resistant Box protects the projector from dust and cigarette smoke by adopting a highly efficient filter. • Provide two powerful silent rotary fans, and cool down the Projector efficiently. -
Page 4: Part Names
PART NAMES MOUNTING SCREWS (provided on each corner) (Screws are provided in the holes) FILTER COVER (AIR INTAKE VENTS) PART NAMES FILTER REAR CONNECTOR FRONT INDICATORS... -
Page 5: Installation
AIR INTAKE VENTS CAUTION:UNPLUG THE PROJECTOR FROM THE AC OUTLET WHEN INSTALLING THE SMOKE RESISTANT BOX. ATTACHING THE SMOKE RESISTANT BOX WHILE THE PROJECTOR IS CONNECTED TO ELECTRICITY MAY DAMAGE THE BOX OR CAUSE IT TO MALFUNCTION. PROCEDURE OF INSTALLATION... - Page 6 INSTALLATION Align the connector of the Projector with the connector pins of the Smoke Resistant Box. CAUTION:TAKE CARE NOT TO TOUCH THE CONNECTOR OR APPLY SHOCK THAT MAY DAMAGE THE CONNECTOR. Hold the Smoke Resistant Box parallel to the Projector and push it slowly towards the Projector.
-
Page 7: Operation
* When the POWER indicator does not light and the WARNING FILTER indicator flashes, the filter is not attached to the Smoke Resistant Box. In this case, the READY indicator on the Projector does not light and the Projector can not be turned on. -
Page 8: Filter Replacement
OPERATION Select [SPECIAL] in the Projector's menu. Then select [Filter]. Select [Option box] and then select [Reset] and then [ Yes]. A message [Please wait---] will appear. When this message disappears initial set-up is complete. Close the menu. When replacing the filter, replace with a specified filter. A replacement filter can be ordered through your dealer. - Page 9 Open the filter cover and take out the used filter. FILTER COVER Install the new filter. CAUTION:USE ONLY REPLACEMENT FILTERS RECOMMENDED BY THE MANUFACTURER. THE USE OF OTHER FILTERS MAY CAUSE THE BOX TO MALFUNCTION OR ACCIDENT MAY RESULT. CAUTION:TAKE CARE NOT TO DAMA- GE THE FILTER DETECTION SWITCH LOCATED INSIDE THE BOX WHEN IN- SERTING THE FILTER.
-
Page 10: Filter Time Check And Reset
※ "Option filter time" menu will not exist when Smoke Resistant Box is not attached on the projector. Reset the filter time according to the following procedures:(Only reset the filter time when changing the filter. The Smoke Resistant Box cannot be operated properly if it is reset other than filter change.) Check that the Smoke Resistant Box is properly attached to the projector. -
Page 11: Appendix
• IF THE SMOKE RESISTANT BOX IS NOT USED LONG PERIOD OF THE TIME. Remove the Smoke Resistant Box from the Projector and store in safe place. • CARE AND CLEANING OF THE CABINET. Remove stains on the cabinet with a soft cloth. If the stain is particularly stubborn, use a cloth soaked in a heavily diluted mild detergent, and finish with a dry cloth. -
Page 12: Dimensions
NAME Owner's Manual DIMENSIONS 6.5'' (165mm) SPECIFICATIONS CONTENTS CONTENTS CONTENTS Projector smoke proof and dustproof box Approximately 2.0m /min POWER, WARNING FILTER, WARNING to 95 to 35 ) (indoors) 6.5''x8.5"x18.1" (165mm x 216mm x 461mm) Approximately 7.5lbs (3.4Kg) QUANTITY QUANTITY... - Page 14 Fax : 06126-9371-14 E-Mail : info@eiki.de Printed in Japan A-key to better communications Canada EIKI CANADA - Eiki International, Inc. P.O. Box 156, 310 First St. - Unit 2, Midland, ON, L4R 4K8, Canada Tel : 800-563-3454 (705)-527-4084 Fax : 800-567-4069 (705)-527-4087 E-Mail : canada@eiki.com...
