LCD Projector
Lens Replacement Procedure
Model Number
LNS-T10/LNS-W10
Lens replacement should be performed by the qualified service
personnel.
It should be followed by this procedure precisely.
Before an attempt to replace the lens, confirm the model number
(both the LCD projector and the lens) and prepare the proper lens.
The lens cover is on the lens for protection. Be sure to remove the
lens cover before installation.
When installing or removing the lens, be careful not to stain,
scratch or damage the lens.
If you have any questions, contact the dealers.
Following parts are contained in the packing.

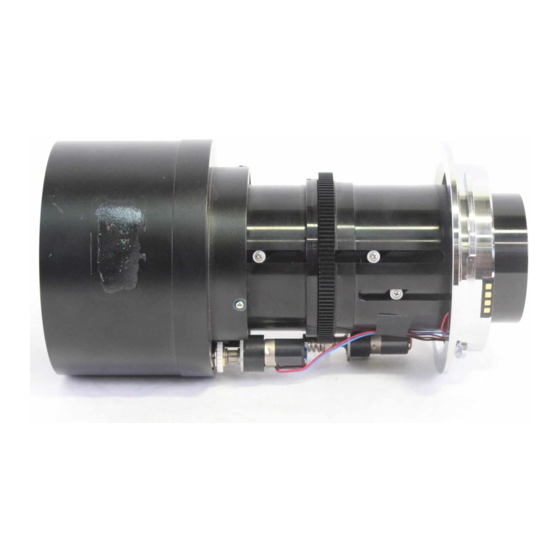

G LENS
G LIGHT-BLOCK SHEET (Spare)
After the lens replacement (before attaching the top cabinet), check the following
things.
1. Check the lens is properly installed.
2. Check no wiring is tangled on the gear of the lens motor or other mechanical
parts.
3. Check no parts is missing, or no mounting part is lost.
Printed in Japan
Notes on Lens Replacement
Parts List
1 piece
1 piece (Part No. 610 301 5040)
Notes on Lens Replacement
1AA6P1P3841-- (IDEP)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Eiki LNS-T10
Summary of Contents for Eiki LNS-T10
-
Page 1: Parts List
LCD Projector Lens Replacement Procedure Model Number LNS-T10/LNS-W10 Notes on Lens Replacement Lens replacement should be performed by the qualified service personnel. It should be followed by this procedure precisely. Before an attempt to replace the lens, confirm the model number (both the LCD projector and the lens) and prepare the proper lens. - Page 2 Lens Replacement Procedure Perform the steps 1-6 for lens replacement. First set the lens at the highest position with lens shift adjustment. Remove the Lens Cover and the Top Cabinet 1. Turn the Lens Cover counter-clockwise and pull it toward front to remove the Lens Cover. 2.
- Page 3 Remove the Lens Push the Lens Lock Lever and turn the lens counter- clockwise (1/4 turn) and then take it out. Be careful not to drop the lens. Mount the Lens 1. Remove the protective caps (front and back) on the lens.
- Page 4 Mount the Light-Block Sheet Base Mount the Light-Block Sheet Base. LIGHT-BLOCK SHEET BASE LIGHT-BLOCK SHEET Light-Block Sheet should be located under the hooks. Mount the Top Cabinet and the Lens Cover For the Cabinet Fig. 6-1 1. Mount the Top Cabinet with 2 screws. 2.
