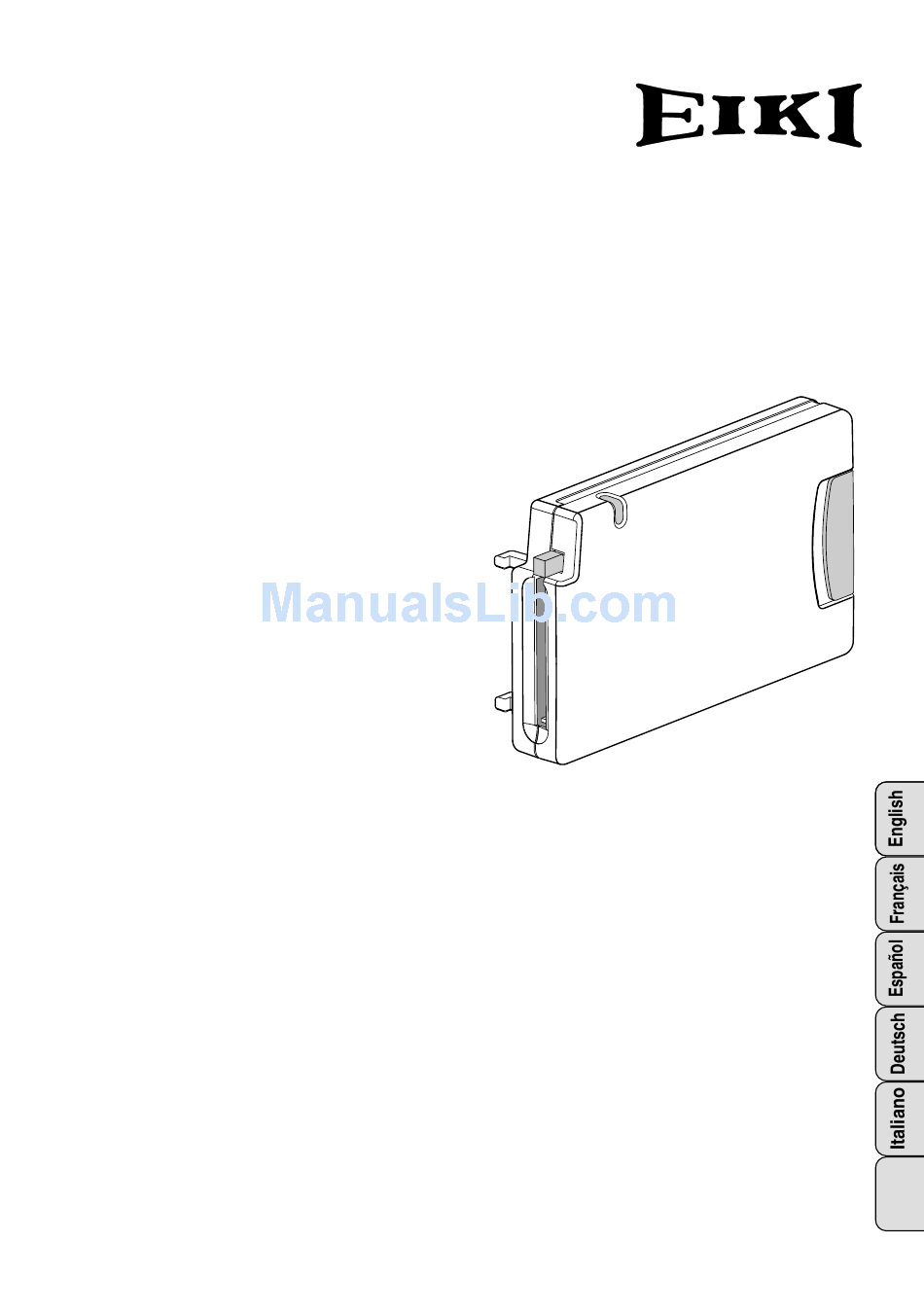

Media Card Imager Kit
MODEL EVW-100
INSTALLATION AND OPERATION
OF THE IMAGER BOX
This Media Card Imager kit is an optional
kit to project image data in various format
and files created with Microsoft PowerPoint
with our projector. Image data can be easi-
ly projected just by attaching the Imager
Box to a projector without any connection
with a computer.
This kit is only used for our projectors that
have a terminal for the Imager Box.
This manual explains the installation of the
Imager Box and its operation.
The data played back through the Imager
Box is edited with Media Card Imager soft-
ware included in the kit. For operation of
the software, refer to separately included
"Media Card Imager" Owner's Manual.
OWNER'S MANUAL
Advertisement
Table of Contents
Related Manuals for Eiki EVW-100
Summary of Contents for Eiki EVW-100
- Page 1 Media Card Imager Kit MODEL EVW-100 INSTALLATION AND OPERATION OF THE IMAGER BOX This Media Card Imager kit is an optional kit to project image data in various format and files created with Microsoft PowerPoint with our projector. Image data can be easi-...
-
Page 2: Federal Communication Commission Notice
Compliances Federal Communication Commission Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: Table Of Contents
Table of Contents Table of Contents Contents of Media Card Imager Kit Name of Each Part of Imager Box Attach Imager Box to Projector Remove Imager Box from Projector Load and Remove CF Card Use CF Card Adapter Handle CF Card and Adapter Specifications PLAY BACK IMAGE PLAYING BACK IMAGE IN THE MEMORY CARD... -
Page 4: Name Of Each Part Of Imager Box
Name of Each Part of Imager Box INDICATOR (lights while accessing) CF CARD SLOT CONNECTOR PLUG SWITCH BUTTON Imager Box MOUNTING HOOK LATCH BUTTON CF CARD EJECT BUTTON... -
Page 5: Attach Imager Box To Projector
Attach Imager Box to Projector CAUTION : Turn off the projector when attaching the Imager Box to the projector. Do not attach or remove while the projector is turned on. It may damage the equipment. Remove 4 covers attached to a projector. Insert the MOUNTING HOOKs (A) into the projector to the arrow direction. -
Page 6: Remove Imager Box From Projector
Remove Imager Box from Projector CAUTION : Do not remove the Imager Box from the projector while the projector is on. It may damage data in a memory card and the card itself. Press the LATCH BUTTON to the arrow direction. -
Page 7: Use Cf Card Adapter
Use CF Card Adapter CF Card Adapter is used when a CF Card is loaded into the PC card slot of a com- puter. You can write and rewrite data into the CF Card with the Adapter through the PC card slot of a computer. For operation, refer to the "Media Card Imager" Owner's Manual. -
Page 8: Handle Cf Card And Adapter
Handle CF Card and Adapter G CF Cards / Adapters are high-precision electronic devices. Do not bend, drop, apply strong forces or shock or place it where a strong static electrical charge may be generated. G Do not touch the surface of the contact area with your fingers or allow it to be stained with foreign materials. -
Page 9: Specifications
Specifications Imager Box Dimensions 4.61" x 2.76" x 0.75" (117mm x 70mm x 19mm) (W x H x D) (not including MOUNTING HOOKs) Weight 5.29 oz (150g) Operating Voltage DC 5V 450mA, DC 3.3V 600mA We recommend you to use a CF card that comes with this kit. -
Page 11: Playing Back Image In The Memory Card
IMAGE PLAYBACK (OPERATING PROJECTOR) PLAYING BACK IMAGE IN THE MEMORY CARD Attach Imager Box to your projector properly (P5), and turn the projector on. Refer to Owner’s Manual of your projector for operation. Load a memory card into CF Card Slot of Imager Box. (P6) Projector automatically turns to MCI mode and shows the image data in a memory card. -
Page 12: Menu Operation
IMAGE PLAYBACK (OPERATING PROJECTOR) When a memory card is loaded into Imager Box connected to the projector, MCI mode is automatically selected. The first Page of the latest Index in a memory card is displayed on a screen. To switch to MCI mode manually, operate as follows. DIRECT OPERATION Choose Computer by pressing INPUT button on Top Control or on Remote Control Unit. - Page 13 IMAGE PLAYBACK (OPERATING PROJECTOR) To project desirable image, select Index and then Page as follows. Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move a red frame pointer to VIEW Menu icon. Press POINT DOWN button to move a red frame pointer to Index icon and then press SELECT button.
- Page 14 IMAGE PLAYBACK (OPERATING PROJECTOR) Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT button to move a red frame pointer to VIEW Menu icon. Press POINT DOWN button to move a red frame pointer to Auto play icon and then press SELECT button.
-
Page 15: Picture Image Adjustment
IMAGE PLAYBACK (OPERATING PROJECTOR) PICTURE IMAGE ADJUSTMENTS IMAGE LEVEL SELECT (DIRECT OPERATION) Select Image Level among Standard, Real, Image 1, Image 2, Image 3 and Image 4 by pressing IMAGE button on Top Control or on Remote Control Unit. Standard Normal picture level preset on this projector. - Page 16 IMAGE PLAYBACK (OPERATING PROJECTOR) Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to IMAGE ADJUST Menu icon. Press POINT DOWN button to move a red frame pointer to the item that you want to adjust, and then press SELECT button.
-
Page 17: Picture Size Adjustment
IMAGE PLAYBACK (OPERATING PROJECTOR) PICTURE SIZE ADJUSTMENT This projector has a picture screen resize function, which enables you to display the desirable image size. Press MENU button and ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to move a red frame pointer to SCREEN Menu icon.
