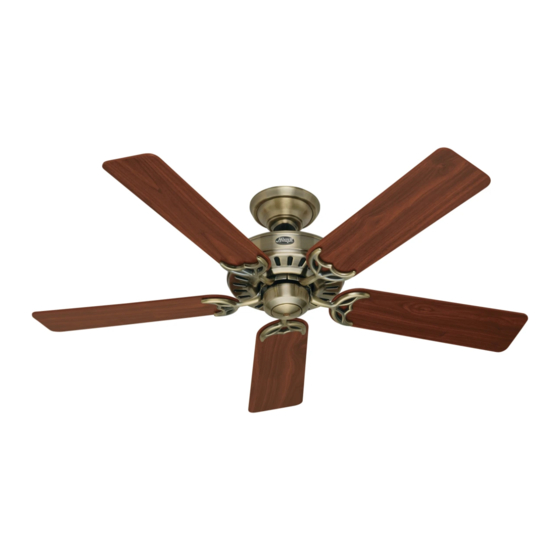

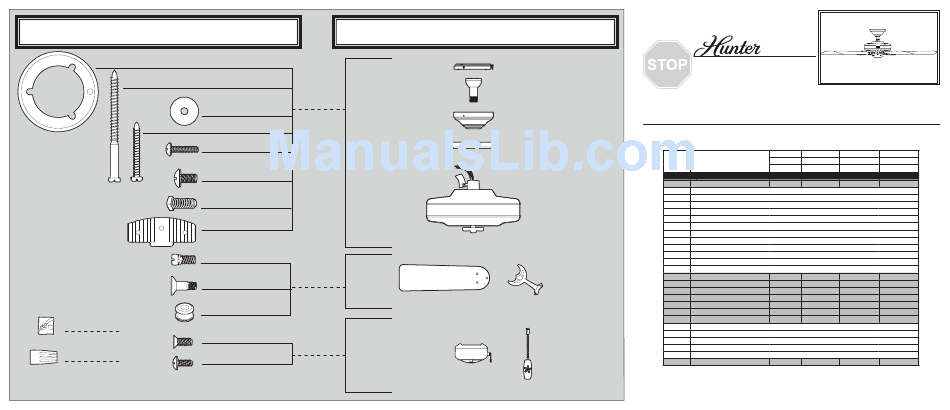

Hunter 25511 Parts Manual

Hardware
(Drawn to Scale)
x 1
x 2
x 4
x 2
x 3
x 4
x 1
x 4
x 11
x 16
x 16
Balancing
x 1
Kit
x 3
Wire
x 4
Connector
x 3
Low Profile
Washer
3" Wood Screw
Flat Washer
Hanger
Bracket
Assembly
1.5" Wood Screw
Screw, Low
Profile
Canopy Screw
Setscrew
Mounting Isolator
Screw, Blade
Iron Armature
Screw, Blade
Blade
Assembly
Assembly
Blade
Grommet
Screw, Switch
Housing Assembly
Switch
Housing
Screw,
Assembly
Machine, 6-32
Fan Parts
(Not Drawn to Scale)
PARTS GUIDE
PARTS GUIDE
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Model # 25511

Part List

Asm. Dwg. # 93880-01
Finish Antique Brass
Item # Item Name Qnty Part #
1 * Hanging System Kit 1 96761-05
2 Ceiling Plate
3 Canopy
4 Canopy Trim Ring
7 Hanger Ball / Downrod Assembly
8 Set Screw
27 Low Profile Washer
64 Wood Screw
65 Wood Screw
68 Flat Washer
71 Mounting Isolator
100 Locking Screw
101 Canopy Screw
28 Switch / Housing Assembly 1 G1353-05
44 Blade Iron Set 1 99631-05
46 Blade Set 1 G0677-09
47 Blade Iron Armature Screw 11 63755-05
78 Pull Chain 1 63756-42
76 Pull Chain Pendant 1 G0090-01
60 * Hardware Kit 1 93880-00-860
66 Blade Grommet
67 Blade Assembly Screw
69 Screw, Machine, 6-32
131 Screw, Switch Housing Assembly
70 Wire Connector
75 Balancing Kit 1 65666-01
Hunter Fan Company • 7130 Goodlett Farms Pkwy. #400 • Memphis, TN 38016 • www.hunterfan.com • 98000-01-271 05-23-2011 •
25517 25518
93880-03 93880-04
White Brushed Nickel
Part # Part #
96761-03 96761-09
G1353-03 G1353-09
99631-05 99631-05
G0677-03 G0677-44
63755-05 63755-05
63756-42 63756-42
G0090-01 G0090-01
93880-00-862 93880-00-863
65666-01 65666-01
2011
©
