Eiki LC-SD15 Owner's Manual

Eiki multimedia projector owner's manual lc-sd15
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

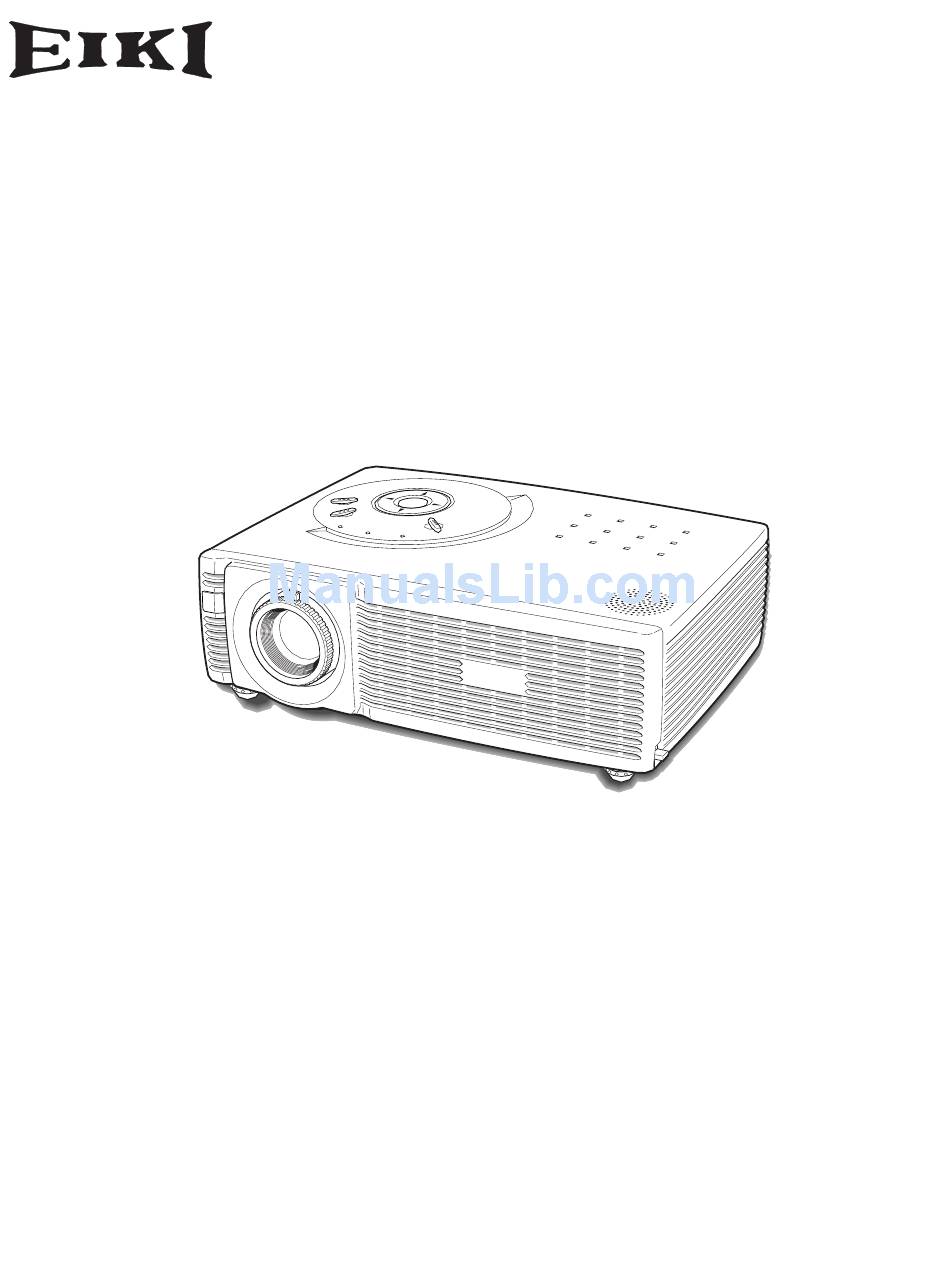

MULTIMEDIA PROJECTOR
LC-SD15
MODEL
OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Eiki LC-SD15

Summary of Contents for Eiki LC-SD15

  • Page 1 MULTIMEDIA PROJECTOR LC-SD15 MODEL OWNER’S MANUAL...

  • Page 2: Features And Design

    Features and Design This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. ◆...

  • Page 3: Table Of Contents

    Safety Instructions ....5 Air Circulation Installing the Projector in Proper Position Moving the Projector Compliance ......7 Part Names and Functions .

  • Page 4: To The Owner

    Eye damage could result. Be especially careful that children do not stare directly into the beam. – Install the projector in a proper position. If not, it may result in a fire hazard. – Provide appropriate space on the top, sides and rear of the projector cabinet for allowing air circulation and cooling the projector.

  • Page 5: Safety Instructions

    Do not use attachments not recommended by the manufacturer as they may cause hazards. Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector.

  • Page 6: Air Circulation

    When moving the projector, replace the Lens Cover and retract Adjustable Feet to prevent damage to the lens and cabinet. When the projector is not in use for an extended period, put it into a case. Exhaust Vent USE CAUTION IN CARRYING OR...

  • Page 7: Compliance

    Telephone No. : 800-242-3454 (949-457-0200) The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it. AC Power Cord for the United States and Canada : AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA).

  • Page 8: Part Names And Functions

    Part Names and Functions Front Back Bottom q Zoom Lever w Infrared Remote Receiver e Focus Ring r Projection Lens t Lens Cover y Air Intake Vent u Exhaust Vent CAUTION Hot air is exhausted from the exhaust vent. Do not put heat-sensitive objects near this side.

  • Page 9: Rear Terminal

    Do not use the RESET function excessively. ✔ Note: • AUDIO OUT and MONITOR OUT terminals work only when the projector is under operation and do not work when the projector is in stand-by state or Power management mode (p41). AUDIO IN SERVICE PORT...

  • Page 10: Top Control

    (p45, 54) i POWER indicator Blinks red until the projector gets ready to be turned on. It turns red when the projector is in stand-by mode. It remains green while the projector is under operation.

  • Page 11: Remote Control

    Point the remote control toward the projector (Infrared Remote Receiver) when pressing any buttons. The maximum operating range for the remote control is about 16.4’ (5m) and 60° in front of the projector. q POWER ON-OFF button Turn the projector on or off. (p17, 18) w VIDEO button Select VIDEO input.

  • Page 12: Remote Control Battery Installation

    Part Names and Functions Remote Control Battery Installation Open the battery compartment lid. To insure safe operation, please observe the following precautions: ● Use (2) AA or LR6 type alkaline batteries. ● Always replace batteries in sets. ● Do not use a new battery with a used battery. ●...

  • Page 13: Installation

    Positioning the Projector This projector is designed to project on a flat projection surface and can focus from 4.3’(1.3m) - 21.3’(6.5m). Refer to the figure and table below for the screen size and distance between the projector and the screen.

  • Page 14: Connecting The Ac Power Cord

    NOTE ON THE POWER CORD AC power cord must meet the requirements of the country where you use the projector. Confirm the AC plug type with the chart below and a proper AC power cord must be used.

  • Page 15: Connecting To A Computer

    • When connecting AUDIO OUT to external audio equipment, the projector's built-in speaker is disconnected. • AUDIO OUT and MONITOR OUT terminals work only when the projector is under operation and do not work when the projector is in stand-by state or Power management mode (p41).

  • Page 16: Connecting To Video Equipment

    • When connecting AUDIO OUT to external audio equipment, the projector's built-in speaker is disconnected. • AUDIO OUT and MONITOR OUT terminals work only when the projector is under operation and do not work when the projector is in stand-by state or Power management mode (p41).

  • Page 17: Basic Operation

    A PIN code consists of a four-digit number. Refer to PIN code lock function in Setting on page 43 for locking the operation of the projector with your PIN code. CAUTION ON HANDLING PIN CODE If you forget your PIN code, the projector can no longer be started.

  • Page 18: Turning Off The Projector

    • Do not operate the projector continuously without rest. Continuous use may result in shortening the lamp life. Turn off the projector and rest it for about an hour in every 24 hours. • The running speed of cooling fans is changed according to the temperature inside the projector.

  • Page 19: Zoom And Focus Adjustment

    Basic Operation Zoom and Focus Adjustment Rotate the Zoom Lever to zoom in and out. Rotate the Focus Ring to bring the image into focus. Zoom Lever Focus Ring...

  • Page 20: How To Operate The On-Screen Menu

    Basic Operation How to Operate the On-Screen Menu The projector can be adjusted or set via the On-Screen Menu. Refer to the following pages regarding each adjustment and setting procedure. Press the MENU button to display the On-Screen Menu. Press the Point buttons to select a Menu icon to adjust.

  • Page 21: Menu Bar

    Color temp. / White balance (R/G/B) / Sharpness / Gamma / Progressive / Film] (p35-36) Basic Operation Setting Menu Change the settings for the projector or reset the lamp replacement counter. (p38-44) Sound Menu Adjust the volume / Color or mute the sound.

  • Page 22: Keystone Correction

    Basic Operation Keystone Correction If a projected picture has keystone distortion, correct the image with the keystone correction function. Press the KEYSTONE button on the remote control or select Keystone on the Setting Menu (p38) to display the Keystone dialog box. Correct keystone distortion by pressing the Point Press the Point button to reduce the upper part of image, and...

  • Page 23: P-Timer Function

    P-Timer Function Press the P-TIMER button on the remote control. The timer display “00 : 00” appears on the screen and starts to count time (00 : 00 ~ 59 : 59). To stop the P-Timer, press the P-TIMER button. Press the P- TIMER button again to cancel the P-Timer function.

  • Page 24: Computer Input

    Computer Input Input Source Selection Direct Operation Choose Computer by pressing the INPUT button on the top control or press the COMPUTER button on the remote control. Before using these buttons, a correct input source should be selected through Menu Operation as described below. Menu Operation Press the MENU button to display the On-Screen Menu.

  • Page 25: Computer System Selection

    Auto PC Adjustment. If Computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. (The signal formats provided in this projector is shown on page 55.)

  • Page 26: Auto Pc Adjustment

    To store the adjusted parameters The system parameters adjusted in the Auto PC Adjustment can be stored in the projector. Once the parameters are stored, the setting can be done just by selecting Mode in the PC System Menu (p25). See “Store” on page 28.

  • Page 27: Manual Pc Adjustment

    Manual PC Adjustment Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has 5 independent memory areas to store those parameters manually adjusted, which allows you to recall the setting for a specific computer.
  • Page 28 Point buttons to decrease/increase the value and then press the SELECT button. Display area V Adjust the vertical area displayed by the projector. Press the Point buttons to decrease/increase the value and then press the SELECT button. Full screen With this function on, SXGA image is fully displayed at 4 : 3 aspect ratio.

  • Page 29: Image Level Selection

    IMAGE button on the remote control. Dynamic Picture level suitable for viewing a picture in a bright room. Standard Normal picture level preset on this projector. Real Picture level with improved halftone for graphics. Blackboard(Green) Picture level suitable for the image projected on a blackboard. This mode helps to enhance the image contrast projected on the blackboard.

  • Page 30: Image Level Adjustment

    Computer Input Image Level Adjustment Press the MENU button to display the On-Screen Menu. Press the Point buttons to move the red frame pointer to the Image Adjust Menu icon. Press the Point button to move the red frame pointer to the desired item and then press the SELECT button.

  • Page 31: Screen Size Adjustment

    Screen Size Adjustment This projector has the picture screen resize function which enables you to customize the image size. Press the MENU button to display the On-Screen Menu. Press the Point buttons to move the red frame pointer to the Screen Menu icon.

  • Page 32: Video Input

    Video Input Input Source Selection Direct Operation Choose either Video or Computer by pressing the INPUT button on the top control or VIDEO or COMPUTER button on the remote control. Before using these buttons, a correct input source should be selected through Menu Operation as described below.

  • Page 33: Video System Selection

    When Video System is PAL-M or PAL-N, select the system manually. PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N If the projector cannot reproduce a proper video image, select a specific broadcast signal format among PAL, SECAM, NTSC, NTSC4.43, PAL-M, and PAL-N.

  • Page 34: Image Level Selection

    IMAGE button on the remote control. Dynamic Picture level suitable for viewing a picture in a bright room. Standard Normal picture level preset on this projector. Cinema Picture level adjusted for the fine tone picture. Blackboard(Green) Picture level suitable for the image projected on a blackboard. This mode helps to enhance the image contrast projected on the blackboard.

  • Page 35: Image Level Adjustment

    Image Level Adjustment Press the MENU button to display the On-Screen Menu. Press the Point buttons to move the red frame pointer to the Image Adjust Menu icon. Press the Point button to move the red frame pointer to the desired item and then press the SELECT button. The level of each item is displayed.
  • Page 36 L2 ..Select “L2” for a still picture. Film This function operates on 3-2 pulldown video sources. When this function is "On", the projector reproduces pictures faithful to the original film quality. Reset To reset the adjusted data, select Reset and press the SELECT button.

  • Page 37: Screen Size Adjustment

    Screen Size Adjustment This projector has the picture screen resize function, which enables you to customize the image size. Press the MENU button to display the On-Screen Menu. Press the Point buttons to move the red frame pointer to the Screen Menu icon.

  • Page 38: Setting

    Setting Setting This projector has Setting Menu that allows you to set up other various functions described below. Press the MENU button to display the On-Screen Menu. Press the Point buttons to move the red frame pointer to the Setting Menu icon.
  • Page 39 Logo PIN code lock This function prevents an unauthorized person from changing the Logo setting. Off ..the Logo setting can be changed freely with the Logo function. (p40) On ..the Logo setting cannot be changed without the Logo PIN code.
  • Page 40 After capturing the projected image, go to the Logo function and set it to “User”. Then the captured image can be displayed the next time projector is turned on or when the NO SHOW button is pressed. (p22) To capture the image, select [Yes]. To cancel the Capture function, select [No].
  • Page 41 ✔ Note: • Be sure to turn off the projector properly. (See “Turning Off the Projector” on page 18). If the projector is turned off in an incorrect sequence, such as disconnecting the AC power cord before completing the cool-down etc., the On start function does not operate properly.
  • Page 42 When operating the projector in “Code 2”, the code for both the projector and remote control must be switched to “Code 2”. To change the code of the projector : Set the remote control in the Setting Menu to “Code 2.”...
  • Page 43 Of ..the projector is not locked with the PIN code. On1 ..requires to enter the PIN code every time turning on the projector.
  • Page 44 L1 ..normal operation L2 ..slower and lower-sound than the normal operation (L1), but it takes longer to cool the projector down. Lamp counter reset This function resets the lamp replacement counter.

  • Page 45: Maintenance And Cleaning

    Maintenance and Cleaning Warning Indicator The WARNING indicator shows the state of the function that protects the projector. Check the state of the WARNING indicator and the POWER indicator to take proper maintenance. The projector is shut down and the WARNING indicator is blinking red.

  • Page 46: Cleaning The Air Filters

    Cleaning the Air Filters Air filters prevent dust from accumulating on the surface of the optical elements inside the projector. Should the air filters become clogged with dust particles, it reduces the effectiveness of cooling fans and may result in a buildup of internal heat and adversely affect the life of the projector.

  • Page 47: Cleaning The Projection Lens

    Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface of the cabinet. When the projector is not in use, put it in an appropriate carrying case to protect it from dust and scratches. Attaching the Lens Cover When moving the projector or while it is not in use over an extended period of time, replace the lens cover.

  • Page 48: Lamp Replacement

    Replace the lamp with a new one and tighten the 2 screws back into position. Make sure that the lamp is set properly. Replace the lamp cover and tighten the screw. Connect the AC power cord to the projector and turn on the projector. Reset the Lamp replacement counter.

  • Page 49: Lamp Replacement Counter

    Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service.

  • Page 50: Appendix

    Before calling your dealer or service center for assistance, check the items below once again. – Make sure you have properly connected the projector to peripheral equipment as described in "Connecting to a Computer" and “Connecting to Video Equipment” on pages 15 and 16.
  • Page 51 High voltages are used to operate this projector. Do not attempt to open the cabinet. If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or the service center. Give the model number and explain about the problem. We will advise you how to obtain service.

  • Page 52: Menu Tree

    Appendix Menu Tree Computer Input / Video Input Input Computer Video Sound Sound Computer Input System ✽Systems displayed in the System Menu vary depending the input signal. PC Adjust Auto PC adj. Fine sync. Total dots Horizontal Vertical Current mode Clamp Display area Display area - H...
  • Page 53 On / Off Ready Shut down Timer(1-30 Min) Quit On / Off Normal Auto 0 - 15 Code 1 Code 2 Projector Remote Control Quit PIN code lock entry PIN code change Quit L1 / L2 Yes / No Yes / No...

  • Page 54: Indicators And Projector Condition

    Check and clean the air filters. The projector detects an abnormal condition and cannot be turned on. Unplug the AC power cord and plug it again to turn on the projector. If the ✽ projector is turned off again, unplug the AC power cord and contact the dealer or the service center for service and checkup.

  • Page 55: Compatible Computer Specifications

    Compatible Computer Specifications Basically this projector can accept the signal from all computers with the below mentioned V, H-Frequency and less than 100 MHz of Dot Clock. H-Freq. ON-SCREEN RESOLUTION (kHz) DISPLAY VGA 1 640 x 480 31.47 VGA 2 720 x 400 31.47...

  • Page 56: Technical Specifications

    Appendix Technical Specifications Mechanical Information Projector Type Dimensions (W x H x D) Net Weight Feet Adjustment Panel Resolution LCD Panel System Panel Resolution Number of Pixels Signal Compatibility Color System High Definition TV Signal Scanning Frequency Optical Information Projection Image Size (Diagonal)

  • Page 57: Optional Parts

    Accessories Owner's Manual AC Power Cord Remote Control and Batteries VGA Cable Lens Cover with String PIN Code Label ● The specifications are subject to change without notice. ● LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.

  • Page 58: Configurations Of Terminals

    Appendix Configurations of Terminals COMPUTER INPUT/S-VIDEO INPUT/COMPONENT INPUT/MONITOR OUTPUT TERMINAL (ANALOG) Terminal : Mini D-sub 15 pin SERVICE PORT CONNECTOR Terminal : Mini DIN 8-PIN 8 7 6 Red (R/Cr) Input/Output Green (G/Y) Input/Output Ground (Vert.sync.) Blue (B/Cb) Input/Output Ground / ----- ----- Ground (Horiz.sync.) Horiz.

  • Page 59: Pin Code Number Memo

    PIN Code Number Memo Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the numbers and unable to operate the projector, contact the service station. PIN Code Lock No.
  • Page 60 Printed in China Part No. 610 323 5387 (1AA6P1P4934-- KB6B) A-key to better communications Canada EIKI CANADA - Eiki International, Inc. P.O. Box 156, 310 First St. - Unit 2, Midland, ON, L4R 4K8, Canada Tel : 800-563-3454 (705)-527-4084 Fax : 800-567-4069 (705)-527-4087 E-Mail : canada@eiki.com...
