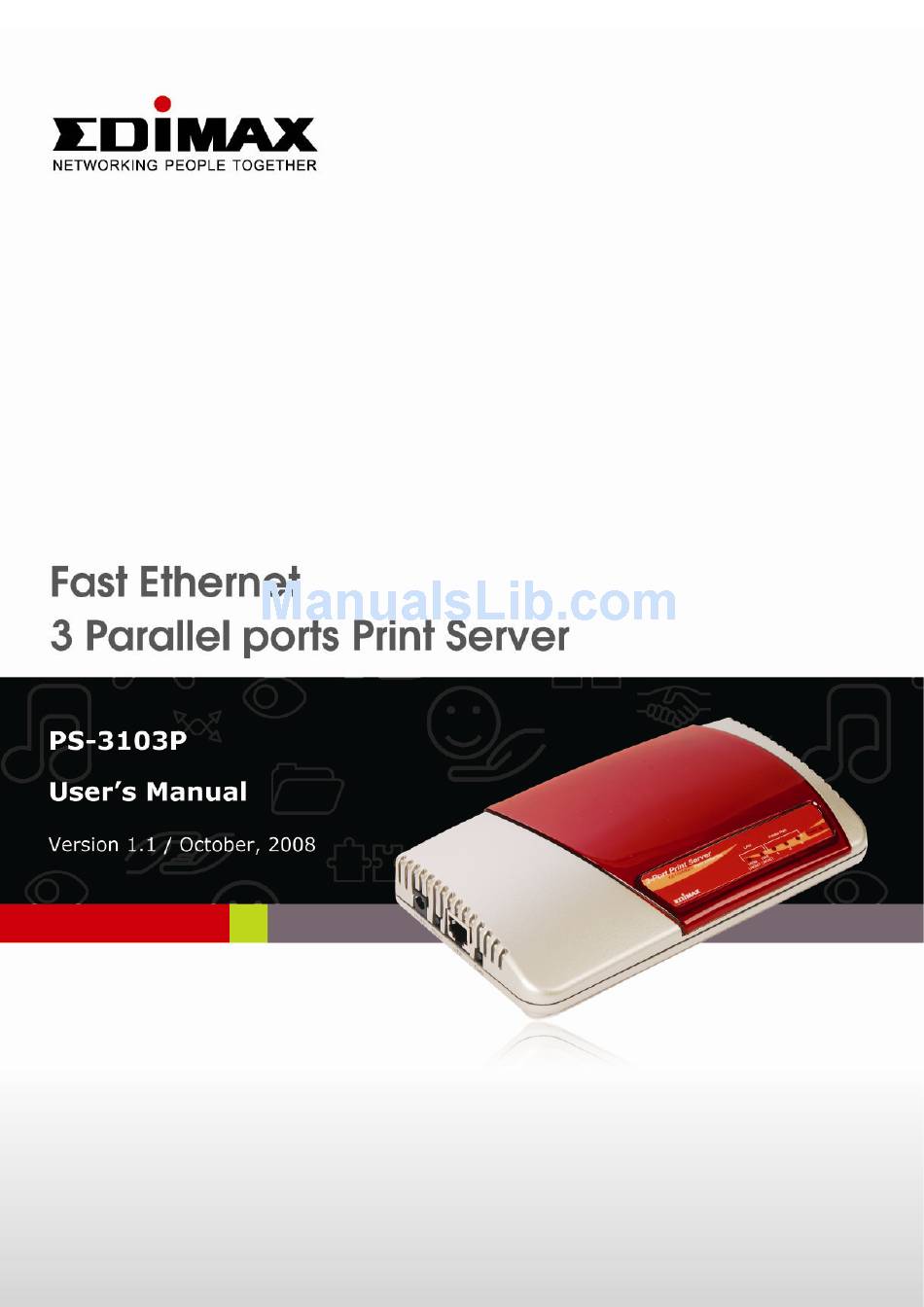

Edimax PS-3103P User Manual

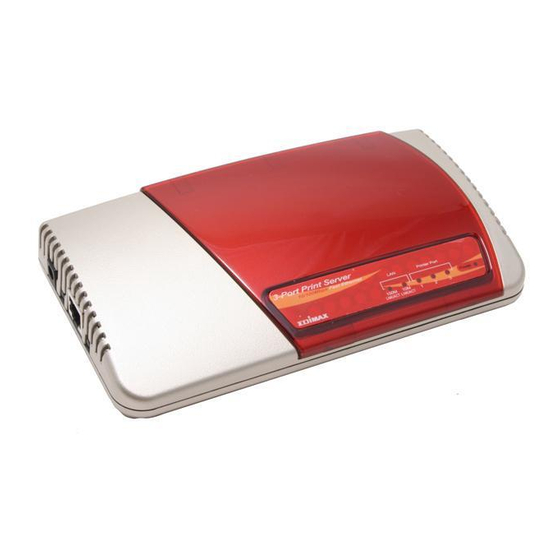

Fast ethernet 3 parallel ports print server
Hide thumbs Also See for Edimax PS-3103P:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Edimax PS-3103P and is the answer not in the manual?

Questions and answers

Related Manuals for Edimax Edimax PS-3103P

Summary of Contents for Edimax Edimax PS-3103P

  • Page 2 Copyright© by Edimax Technology Co, LTD. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.

  • Page 3: Federal Communication Commission Interference Statement

    Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4 DISCLAIMER This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in...

  • Page 5: Table Of Contents

    INTRODUCTION ...1 Product Introduction... 2 Product Package ... 3 Network Printing Architecture ... 4 1.3.1 Print Server Network Functions... 5 1.3.2 Network Printing Functions for Clients... 5 1.3.3 Network Printing Functions for Network Server... 8 Network Printing Environment ... 9 Contents of the User’s Manual ...
  • Page 6 NETWARE NETWORK ...50 System Architecture... 51 NetWare 3.x/4.x/5.x Installation & Setup ... 53 5.2.1 Installation Using PCONSOLE ... 53 UNIX SYSTEM NETWORK...57 Introduction ... 58 Enable Print Server’s TCP/IP Support ... 59 Setup Print Server’s IP Address ... 60 6.3.1 ARP &...
  • Page 7 WEB MANAGEMENT...92 Introduction ... 93 Getting Print Server Information ... 96 Getting Printer Status ... 97 Getting NetWare Information ... 98 Getting DHCP Status... 99 Changing Device Configuration ... 100 Setting IP Address ... 102 Configuring DHCP Parameters... 103 Configuring E-Mail Printing ... 105 8.10 Configuring SMB...

  • Page 8: Introduction

    Introduction...

  • Page 9: Product Introduction

    Product Introduction Thank you for purchasing and using our print server. This print server allows your printer to become a shared device on the network. It offers printing flexibility and manageability on your Local Area Network at an extremely low cost and with an absolute minimum setup and maintenance required.

  • Page 10: Product Package

    Product Package This package contains the following components: One Print Server One Power Adapter One Quick Installation Guide One CD (Utility, Multi-language Quick Installation Guide & User Manual)

  • Page 11: Network Printing Architecture

    Network Printing Architecture This section illustrates how print server functions and operates on the network. Before you install and use print server, it is strongly recommended that you read this section completely, and select only the chapters you need according to your network operating system by “Contents of the User ’s Manual”...

  • Page 12: Print Server Network Functions

    1.3.1 Print Server Network Functions Print Server Unix Print Server NetWare Server Windows NT Windows 2000 Windows 98 Workstation Because print server supports IPX/SPX, NetBEUI, TCP/IP and AppleTalk network protocols, any networked computer can directly print to the print server from any of its installed protocol.
  • Page 13 Common operating systems for clients are classified as following: Windows 98SE/Me/NT/2000/XP/2003/Vista Our print server system provides PTPP (Peer-to-Peer Printing) driver and utilities for Windows 98SE/Me/NT/2000/XP/2003/Vista users. PTPP (Peer-to- Peer Printing) supports TCP/IP protocol. In the client installation procedure, after PTPP (Peer-to- Peer Printing Driver) is installed into Windows, the system will automatically (manual configuration is also allowed) search all the print servers on the network, and then add...
  • Page 14 PTPP Windows 98 Print Server MIS-2 Print Server MIS-1 UNIX / Linux UNIX (include HP/UX, SCO Unix, SunOS, Solaris, Unixware DECUnix, IBM AIX and others) and Linux use the system-standard LPR to print through print server. MAC OS MAC OS can use the system-standard AppleTalk network to print through print server.

  • Page 15: Network Printing Functions For Network Server

    1.3.3 Network Printing Functions for Network Server Network Server Unix Print Server Windows NT Server NetWare Server Windows NT Windows 2000 Windows 98 Workstation Common network servers are classified as following: Windows NT/2000/2003 Our print server system provides PTPP (Peer-to-Peer Printing) driver and utilities for Windows NT/2000/2003.

  • Page 16: Network Printing Environment

    Network Printing Environment Common network environment are classified as following: Windows Peer-to-Peer Network The client’s PTPP driver will use TCP/IP protocol to print through print server. Windows NT/2000/2003 Network Network printing function will become available after PTPP driver is installed into Windows NT/2000/2003. Adding this printing function into Windows NT/2000/2003 Server allows print queue, user authority management, and many other advanced features to be used.
  • Page 17 NetWare Network (see below)

  • Page 18: Contents Of The User's Manual

    Contents of the User’s Manual Chapter 2 explains print server ’s hardware installation and configuration. It is strongly recommended for you to read. The following chapters 3, 4, 5, and 6 introduces: Chapter 3. Windows Peer-to-Peer Network Chapter 4. Windows NT/2000 Server-Based Network Chapter 5.
  • Page 19 Chapter 11 introduces Print Server ’s LPR Printing function and Windows XP/Vista and MAC OS 10.x standard setup procedures. The LPR Printing (Line Printer Remote technology) allows users to connect to printers via TCP/IP for printing sharing. Chapter 12 In Windows XP SP2, you may not find any print server listed on the “Available Ports”...

  • Page 20: Firmware & Printing Function

    Firmware & Printing Function The print server provides a complete network printing solution. The feature set is listed below: PTPP (Peer-to-Peer-Printing) TCP/IP (LPR) IPP Printing NetWare Bindery Printing AppleTalk SMB Printing...

  • Page 21: Hardware Installation

    Hardware Installation 1. Unpack the print server package and verify that all the items listed in the section 1.2 are provided. 2. Connect the print server to the printer you want to share on the network by standard Parallel cable. 3.

  • Page 22: Windows Peer-To-Peer Network

    Windows Peer-to-Peer Network...

  • Page 23: System Architecture

    System Architecture Print server supports Windows Peer-to-Peer network printing mode, which is suitable for most medium and small network environments. Through quick and simple installation procedure, users can immediately enjoy the convenience of network printing. Installation procedure is separated into following two parts: 1.
  • Page 24 Client users must install Windows PTPP driver (Peer-to- Peer Printing) for network printing. In addition, after PTPP is installed, the system will automatically search for all print servers on the network, and add the printing port of the print servers into Windows’...

  • Page 25: Installation Wizard

    Installation Wizard This wizard can be run in Windows 2000/XP/Vista. The following procedures are operated in Windows XP. If you lose the CD ROM or you prefer the traditional setup procedure, please follow the instruction as following step in this quick installation guide.

  • Page 26: Administrator Installation And Setup

    Administrator Installation and Setup **PLEASE FIND THE UTILITY MANUALLY FROM CD-ROM DRIVE’S ROOT DIRECTORY OR DOWNLOAD IT FROM EDIMAX WEBISTE. IF YOU HAVE ANY QUESTION PLEASE CHECK WITH EDIMAX LOCAL TECHNICAL SUPPORT TEAM. The Administrator Installation Program executes a wizard-driven procedure that performs the following tasks: Install all necessary utilities and drivers in your PC (including the client utilities).
  • Page 27 2.The “Print Server Utilities” window will be displayed. Click “Next”. 3.Click “Next” to install the utilities in the default folder or click “Change” to specify the destination folder where you would like to install the utilities.
  • Page 28 4.Select the components you want to install. It is highly recommended to install all provided components. Click “Next” to continue.
  • Page 29 5.The system will start to install the utilities automatically. 6.You have completed the installation phase and prepare to configure the Print Server. The “Choose Print Server” will list all Print Servers within the network. Select the Print Server you would like to configure and click “Next”.
  • Page 30 NOTE 1: If this is the first time you configure the Print Server, the “Print Server Name” is the last 6- digit of MAC ID with prefix “PS”. Please check the MAC ID on the print server. NOTE 2: The list can only display the devices from the same manufacturer.
  • Page 31 8.Specify the IP Address for the Print Server manually or click “Next” to keep default IP Address, i.e. 10.0.0.1 9.The configuration summary is displayed in the window. Now, you have completed the Print Server setup. Click “Finish” and your system will add network port of the Print Server to your PC automatically.
  • Page 32 10.The Administrator Installation procedure is totally completed. Click “Finish”. The Administrator Installation Program have executed the installation procedure that performs the following tasks: Install all utilities and drivers to the administrator ’s PC. Configure the print server (including the print server name and network protocol) Add the network port of the print server to the administrator ’s PC.

  • Page 33: Administrator Utilities

    Administrator Utilities After Administrator Installation is completed, there will be four utilities in print server ’s Program folder. Network Ports Quick Setup – Add the network ports of print servers within the network to your PC. Print Server Configuration – Allows you to configure the print server ’s IP Address, network protocols and other advanced functions.

  • Page 34: Client Installation And Setup

    Client Installation and Setup *PLEASE FIND THE UTILITY MANUALLY FROM CD-ROM DRIVE’S ROOT DIRECTORY OR DOWNLOAD IT FROM EDIMAX WEBISTE. IF YOU HAVE ANY QUESTION PLEASE CHECK WITH EDIMAX LOCAL TECHNICAL SUPPORT TEAM. The Client Installation Program is a wizard driven procedure which will perform the following tasks: Install client utilities and drivers into your PC.
  • Page 35 2.The “Print Server Utilities” window will be displayed. Click “Next”. 3.Click “Next” to install the utilities in the default folder or click “Browse” to specify the destination folder where you would like to install the utilities.
  • Page 36 4.The system will start to install the utilities automatically.
  • Page 37 5.Now, the installation procedure is completed, you are ready to set up the client’s computer. All network ports of the Print Servers detected on the network will be added to your PC automatically, click “Continue”. Note that if there are no print servers detected in the network currently, please click “Continue”...
  • Page 38 6.The Client Installation procedure is completed. Click “Finish”. After the installation, you have completed the following tasks: Install all utilities and drivers to the client’s PC. Add all the print server ’s network ports of the network to the client’s PC. You can then perform the Windows’...

  • Page 39: Client Utilities

    Client Utilities After Client Installation is completed, there will be three tools in print server ’s Program folder. Network Ports Quick Setup Remote Ports Uninstall Network Driver The Uninstall Network Driver will assist you in removing all installed client software. The other two tools are described as follows.

  • Page 40: Network Ports Quick Setup

    3.6.1 Network Ports Quick Setup Network Ports Quick Setup Utility offers a very simple method to add or remove print server ’s printer port from the client’s computer. During the client’s installation procedure, the system will automatically search for all print servers on the network, and add them into the printer ports of the client’s computer (see below).
  • Page 41 Please be aware that Network Ports Quick Setup Utility can only detect and configure all print servers on the same network, it cannot search and configure print servers on other subnets across network segments. You must use Remote Ports Utility described in the next section to manage remote (across network segments) print servers.

  • Page 42: Remote Ports (Utility)

    3.6.2 Remote Ports (Utility) Remote Ports Utility offers a convenient way for you to manage and add printer port of the remote print server. From the assistant of this utility, you can print to other print servers outside the subnet across network segment. However, please note that this function only supports TCP/IP network protocol.
  • Page 43 Step3. The new remote print port is displayed as follows. In order to use the remote printing function, you will have to proceed with normal Add Printer procedure and select your printer port as the newly added remote printer port.

  • Page 44: Windows Add Printer Procedure

    Windows Add Printer Procedure After adding a “Network Port” of the print server to your PC by Administrator or Client Installation Program, you can follow the procedures described in the following sections to add printer to the Windows. 3.7.1 Windows Vista The following “Add Printer”...
  • Page 45 Choose the suitable printer port which was created by the installation process and click “Next”. Select the printer manufacturer and the printer model and click “Next”. If your printer is not in the list, click “Have Disk…” to install the driver of the printer. After installation, the printer model will be added to the list.
  • Page 46 Name your printer and set the default printer, click “Next”. The printer drivers are being installed.
  • Page 47 It is recommended to print a test page. Click “Finish”. The printer is added to “Printers” page, you have added the printer to your computer successfully. Now you can start to print from your computer to the print server.

  • Page 48: Windows Xp

    3.7.2 Windows XP The following “Add Printer” steps are running in Windows XP, the steps in other Operating Systems such as Windows 98SE/Me/2000 are similar. Click “Start”, choose “Settings” and select “Printers and Faxes”. Click “Add a Printer”. The “Add Printer Wizard” is displayed. Click “Next”.
  • Page 49 Select “Local printer attached to this computer” and make sure that “Automatically detect and install my Plug and Play printer” is not selected. Click “Next”. Choose the suitable “Print Server Network Port” which was created by the Administrator Installation or Client Installation process and click “Next”.
  • Page 50 Select a suitable printer manufacturer and the printer model and click “Next”. If your printer is not in the list, click “Have Disk…” to install the driver of the printer. After installation, the printer model will be added to the list. Name your printer and setup the default printer, click “Next”.
  • Page 51 Choose to print the test page or not. It is recommended to print a test page. Click “Next”. You have added the printer to the PC successfully. The information of the printer is displayed in the windows. Click “Finish”. Now you can start to print from your PC to the print server.

  • Page 52: Windows Nt/2000/2003 Network

    Windows NT/2000/2003 Network...

  • Page 53: System Architecture

    System Architecture In Windows network environment, other than the Peer-to- Peer network printing architecture described in the previous chapter, we also offer the Server-Based Printing architecture for Windows NT/2000/2003 server. Only one Windows NT/2000/2003 is required to have Windows PTPP (Peer-to-Peer Printing) driver installed and share the printing service on the network.

  • Page 54: Windows Nt/2000/2003 Server Installation And Setup

    Windows NT/2000/2003 Server Installation and Setup Please follow the procedures described below for installation and construct a peer-to-peer connection (PTPP) between Windows NT/2000/2003 Server and Print Server. Step1. If this is your first time installing print server, please install the administrator software on Windows NT/2000/2003 server first.
  • Page 55 Step2. Please add/configure the Peer-to-Peer Printing of the Windows NT/2000/2003 network printer and verify that you can print from Windows NT/2000/2003 to the print server by the installed PTPP driver. Step3. Share the above server ’s printer to the network by performing the standard Windows printer sharing process.

  • Page 56: User Installation And Setup

    User Installation and Setup After server side’s installation is completed, client side will be able to find the server ’s shared printer in Network Neighborhood. You only need to perform Window’s standard Add New Printer procedure, select “Network Printer” shown in the screen below, and complete the configurations afterwards to access the shared printer.

  • Page 57: Netware Network

    NetWare Network...

  • Page 58: System Architecture

    System Architecture We implemented NetWare printer sharing functionality into the print server itself, thus allowing one or more printers attached by a print server to be connected to the network. We have developed the print server to support NetWare print server. Embedded print server, which emulates the “queue management functionality”...
  • Page 59 Printing performance is enhanced. Relieve NetWare file server ’s burden. Relieve the need of a workstation running the remote printer utility. Improve productivity by locating the printer near the workgroup. Each print server should log into a NetWare server before servicing the print jobs.

  • Page 60: Netware 3.X/4.X/5.X Installation & Setup

    NetWare 3.x/4.x/5.x Installation & Setup Once your print server is connected to your Ethernet network, you can set it up for use with your networking software. 5.2.1 Installation Using PCONSOLE 5.2.1.1 Configuring as Print Server Mode Run the NetWare PCONSOLE program. Change the current file server, if necessary, using the Change Current File Server menu selection.
  • Page 61 You have now successfully created the print queue that your print server will serve. Press the Escape key until the Available Options main menu is displayed. Select Print Server Information. Press the Insert key to add a new NetWare print server object.
  • Page 62 Press Escape, and answer Yes to the Save Changes question. Select Queues Serviced by Printer, then select Printer 0 (or Printer 1, Printer 2) and press Enter. Press Insert and add your newly created print queue to the list of queues serviced by the printer. Enter a priority number for the queue service, or press Enter to accept the default.
  • Page 63 Repeatedly press Escape to exit the PCONSOLE program. Reset the print server to have the changes take effect. NOTE: If the print server you have is with multiple printer connectors, you may create multiple print queues and printer objects. Your print server should now be ready to use. You should be able to redirect printing to your print server using a CAPTURE command such as the one shown in the previous section.

  • Page 64: Unix System Network

    UNIX System Network...

  • Page 65: Introduction

    Introduction The print server is available for TCP/IP printing by Unix LPD (Line Printer Daemon) protocol. The LPD protocol originated with Unix release is based on the BSD version of Unix and supported under most versions of Unix. This chapter explains how to configure the print server for TCP/IP operation, and how to modify configuration files on your Unix system to allow printing to the print server.

  • Page 66: Enable Print Server's Tcp/Ip Support

    Enable Print Server’s TCP/IP Support The default configuration of the print server is with TCP/IP support enabled. Anyway, you can configure the print server to enable TCP/IP support using the configuration program.

  • Page 67: Setup Print Server's Ip Address

    Setup Print Server’s IP Address The print server must have a unique IP address in order to be recognized by the network. You can set up the IP address on the various Unix systems using any one of the following methods: 1.

  • Page 68: Dhcp

    (the Node ID is printed on the rear side of the print server) Assign IP address: 203.66.191.12 arp –s 203.66.191.12 00-00-B4-01-01-01 ping 203.66.191.12 At the mean time, print server ’s IP will “temporarily” be set to 203.66.191.12 (will restore after reboot). Therefore, you need to run your web browser to set a permanent IP address (refer to section 8.3.7 for detailed IP configuration).

  • Page 69: Bootp

    6.3.3 BOOTP If you have the BOOTP daemon, bootpd, running on your UNIX system that is accessible by the print server, you can use the BOOTP protocol to set up the IP address of the print server. We recommend that the BOOTP server should be located on the same subnet as the print server.
  • Page 70 Lines should be indented with tabs. Where hostname is the device name of a print server, the ht=1 tag specifies the hardware type is Ethernet, the ha= tag specifies the Ethernet address of a print server, which is the Node ID located on the print server. The ha tag must be preceded by the ht tag.

  • Page 71: Rarp

    6.3.4 RARP The procedure below enables the RARP daemon running on your system to respond to a RARP request from the print server and to assign the IP address to the print server. 1. Log in the host of RARP server as the superuser (root). 2.

  • Page 72: Verify Print Server's Ip Address

    Verify Print Server’s IP Address To verify that your print server is responding to the newly assigned IP address using a PING command: ping ip-address...

  • Page 73: Configure Remote Lpd Printing On The Host

    Configure Remote lpd Printing on the Host The procedure you use to configure your Unix host(s) to allow printing to your network remote print server varies between different varieties of Unix. The procedure below can be used for Unix variants that are related to BSD Unix, such as SunOS or Linux.
  • Page 74 3. Add an entry to the host’s /etc/printcap file, similar to the following: Lines should be indented with tabs. More than one printer name can be used, with variants separated by vertical bars (name1|name2). The rm= entry should correspond to the IP address you have assigned to the print server.
  • Page 75 The rp= entry should correspond to the port name of the remote printer. The values should be one of lpt1, lpt2 or lpt3 depends on the printer port. The print server should now be available for printing from your Unix host.

  • Page 76: Print A Test Page

    Print a Test Page To print to the print server, you can use the lpr command: lpr -Pprinter-name file ... or, you can use the lp command on SCO Open Server: lp –d printer-name file ... Where printer-name is one of the names for the printer in the /etc/printcap file, which you created in the previous step.

  • Page 77: Configuration Utility

    Configuration Utility...

  • Page 78: Introduction

    Introduction This chapter introduces print server ’s system configuration utility in Windows environment. This utility is automatically installed during Windows Administrator Utility installation procedure - refer to section 3.2 and 3.3. This utility provides the most complete management and configuration functions on the print server side. This utility only provides configuration functions for print server itself;...
  • Page 79 SMB: Configure the SMB Group Name. System Configuration: Print Server Network Ability Setting and Firmware Upgrade. E-Mail Printing: E-Mail Printing configuration. Please refer to Chapter 9. Setup Wizard: Guide You Through All the Settings. Report: List the Status of All Available Print Servers on the Network.

  • Page 80: Search For All Available Print Server

    Search for All Available Print Server Every time when you run print server ’s configuration utility, click the “Search” icon on the tool bar. The configuration utility will delay for several seconds because the utility is using system’s available network protocols to search for all print servers on the network.

  • Page 81: Status Of Print Server

    Status of Print Server Click “Status” icon on the tool bar, the status of the current selected print server will be showed on the right side of the window. The information of the print server displayed are MAC ID, Model Type, Firmware Version, status of each printer port, NetWare file server name, NetWare file server polling interval, NetWare printer queue names, IP address, subnet mask, default gateway, AppleTalk printer type,...
  • Page 82 You can restart the print server by pressing the “Reboot” button...

  • Page 83: Setup The Print Server

    Setup the Print Server Click “Setup” icon the current selected print server will be showed on the right side of the window. Double click one of the icons to set up the selected print server. A screen will pop up to verify “User Name” and “Password”...

  • Page 85: General Configuration

    General Configuration Double Click “General” icon and the General configuration window will pop-up. You can see basic print server information in this page. You also can configure the “Print Server Name”, “SMB Group Name”, “User Name” and “Password” here. Server Name, the name of the print server. You can use this name to identify the print server when you are searching for the print server by the administration and client utilities.

  • Page 86: Tcp/Ip Configuration

    TCP/IP Configuration Double Click “TCP/IP” icon and the TCP/IP configuration window will pop-up. You can configure the print server to automatically get IP from DHCP server or manually specify static IP. The print server also has a built-in DHCP server. You can enable this DHCP server and let it manages IP for you.
  • Page 87 Click the “IP” button to enter the IP setting page. If you need the print server to automatically get an IP from DHCP server, select “Auto IP”. You also can select “Static IP” to manually assign “IP Address”, “Subnet Mask” and “Gateway”...

  • Page 88: Netware Print Server Configuration

    Netware Print Server Configuration Double Click “NetWare” icon and the NetWare configuration window will pop-up. This print server supports NetWare Bindery Printing method. The print server periodically polls the NetWare server printer queues for printing jobs. You have to assign the NetWare server name, print server polling interval and the name of queue on the NetWare server for each printer port.

  • Page 89: Appletalk Configuration

    AppleTalk Configuration Double Click “AppleTalk” icon and the AppleTalk configuration window will pop-up. AppleTalk is a data communication protocol often used by Macintoshes. The print server can use these parameters to join the AppleTalk network and share the printer to other AppleTalk workstations.

  • Page 90: Snmp Configuration

    SNMP Configuration Double Click “SNMP” icon and the SNMP configuration window will pop up. Contact: You can enter the print server administrator ’s contact information here. This information will be displayed in the SNMP management tool. Location: You can enter the installed location of the print server here.

  • Page 91: Smb Configuration

    7.10 SMB Configuration SMB Group Name, the name of SMB group that this print server belongs to. All PC should join the same group before they can use this print server by SMB protocol. Pass Job when Error Occurred: When the printer is interrupted because of paper out or off line while printing, user can set the interval time to bypass the current printing job.

  • Page 92: System Configuration

    7.11 System Configuration Double Click “System” icon and the System configuration window will pop-up. In the System configuration page, you can select to enable/disable each printing or management protocol, assign name for each printer port of this print server, and upgrade the new firmware for this print server.
  • Page 93 Note that before you upgrade the firmware please make sure that the IP Address settings of the MFP Server are in the same network as your computer.

  • Page 94: Wizard

    7.12 Wizard Click “Wizard” icon on the tool bar, the setup wizard item of the current selected print server will be showed on the right side of the window. Double click the “Print Server Setup Wizard” the setup wizard will guide you through all the setup process.
  • Page 95 Step 1: Set up the name of this print server. Step 2: Select to enable required printing protocol. Please refer to section 7.11 for detail information.
  • Page 96 Step 3: Setup the IP of this print server and the DHCP server. Please refer to section 7.6 for detail information. Step 4: Setup the AppleTalk printing. Please refer to section 7.8 for detail information.
  • Page 97 Step 5: Setup the NetWare printing. Please refer to section 7.7 for detail information. Step 5: Click “Save” to finish setting.

  • Page 98: Report

    7.13 Report Click “Report” icon on the tool bar, the Report window will pop up. The report lists basic information of all available print servers on the network. The information includes Device Name, MAC ID, Model Type and Firmware Version of print server.

  • Page 99: Web Management

    Web Management...

  • Page 100: Introduction

    Introduction Print server can be configured and managed on the Web. Through Local Area Network, or even Internet, administrator can easily configure and manage print server ’s various main functions in browsers. Simply enter print server ’s IP address into your browser ’s address field to manage a print server by print server ’s built-in Web Server.
  • Page 101 Print Server Info: General Information of print server. Printer Status: Current status of the attached printers. NetWare Status: Print Server connection information of NetWare. DHCP Status: Current IP Address and DHCP server status and information. Device Cfg: Device configuration. IP Cfg: IP configuration. DHCP Cfg: DHCP parameter configuration.
  • Page 102 password at that moment and reload the configuration pages again. The configuration pages will now be displayed in the browser window.

  • Page 103: Getting Print Server Information

    Getting Print Server Information Each time you run browser to connect to a print server, you will get this print server information page initially. The print server information page displays some general information of print server.

  • Page 104: Getting Printer Status

    Getting Printer Status The Printer status page can be used to display the status of attached printer(s) for each port.

  • Page 105: Getting Netware Information

    Getting NetWare Information The NetWare status page displays the NetWare connection information of the print server.

  • Page 106: Getting Dhcp Status

    Getting DHCP Status The DHCP status page can be used to display the print server ’s IP address and the DHCP Server information.

  • Page 107: Changing Device Configuration

    Changing Device Configuration The Device Cfg page allows you to set: Alias name, an alternate name by which the print server can be called (in addition to the PSxxxxxx name printed on the label). NetWare Protocol Support, which determines whether or not the print server support NetWare printing function.
  • Page 108 Save to Print Server button: save the configuration to the print server. Type new password, change to new password. Re-type new password, confirm the new password. Change password button: save the new password to the print server. The print server will verify your password (it will ignore the User Name item) when you save the configuration.

  • Page 109: Setting Ip Address

    Setting IP Address The IP Cfg page allows you to configure the IP address where the print server is to be located. The print server will obtain its IP address automatically by the protocol DHCP, BOOTP, RARP if you configure the IP address as Automatic.

  • Page 110: Configuring Dhcp Parameters

    Configuring DHCP Parameters The print server can be configured as DHCP server to provide dynamic IP addresses assignment. The DHCP Cfg page allows you to set. The DHCP server startup, which determine if the print server will act as DHCP server. If this item is set to Auto, the print server will detect if there is any other DHCP server on the network when it boots up.
  • Page 111 automatically; otherwise you will configure the following parameters: Starting IP: specifies the starting IP address for assigning to DHCP clients. IP range: specifies how many IP addresses are available to DHCP clients. Net mask: gives the network mask. Gateway IP: gives the IP address of the default gateway. DNS server: gives the IP address of the domain name server.

  • Page 112: Configuring E-Mail Printing

    Configuring E-Mail Printing Using print server ’s email printing function, the client user on the Internet can email the printing file to a dedicate mailbox, print server will automatically get the email from that mailbox and print it to the attached printer. The detail function description is described in the Email Printing Chapter.
  • Page 113 Mail Account, the account of the mailbox in the mail server. Mail Password, the password of the mail account. Print Mail Header, which determines whether or not the printing job will print out the mail header.

  • Page 114: Configuring Smb

    8.10 Configuring SMB All PC should join the same group before they can use this print server by SMB protocol. SMB Group Name, the name of SMB group that this print server belongs to. Save to Print Server, save the configuration to the print server.

  • Page 115: Configuring Appletalk

    8.11 Configuring AppleTalk AppleTalk is a data communication protocol often used by Macintoshes. The print server can use these parameters to join the AppleTalk network and share the printer to other AppleTalk workstations. You have to setup the “Zone Name” and “Printer Type” for each printer port of this print server.

  • Page 116: Configuring Snmp Parameters

    8.12 Configuring SNMP Parameters The SNMP Cfg page allows you to configure the SNMP parameters of this print server. These information can be browsed by the SNMP MIB browser. The page allows you to set: System Contact, the system Administrator information of this print server.

  • Page 117: System Utilities

    8.13 System Utilities You can perform several tasks from this Utilities page, as described below: The Software reset: which determines whether or not to reset the print server. The Restore to factory default: which determines whether or not to erase all of the print server ’s setting and restore to the default configuration the print server had when it was shipped from the factory.
  • Page 118 make sure it is operating properly, or to isolate any installation problems. The Do it button: do the action specified in the above.

  • Page 119: Firmware Upgrading

    8.14 Firmware Upgrading The page allows you to upgrade firmware of the print server. Click “Do it” button and enter the password, the system will guide you to finish the firmware upgrading. Be aware that if you have started upgrading firmware, you have to follow all the upgrading steps or the print server can’t turn back to normal configuration.

  • Page 120: Ipp Printing

    IPP Printing...

  • Page 121: Introduction

    Introduction IPP (Internet Printing Protocol) Printing provides a convenient way of remote printing service by TCP/IP. The print server can support IPP printing by default. It is needless to do any setting. Any PC that can support IPP printing, for example Windows 2000/XP, can directly uses the print server by IP.

  • Page 122: System Setup

    System Setup 9.2.1 Print Server Side It is needless to do any setting on the print server side. Make sure the print server has correct IP settings. If you want to share the printers to Internet users, you have to set a real IP to the print server.
  • Page 123 Step3. The “Add Printer Wizard” is displayed. Click “Next”. Step4. Select “A network printer, or a printer attached to another computer”. Click “Next”.
  • Page 124 Step5. Select “Connect to a printer on the Internet or on a home or office network” and enter the URL of print server. The URL format is “http://IP:631/Port Name”. The IP should be the print server ’s IP. The number 631 is IPP standard port number.
  • Page 125 Step6. Select a suitable printer manufacturer and the printer model and click “Next”. If your printer is not in the list, click “Have Disk…” to install the driver of the printer. After installation, the printer model will be added to the list.
  • Page 126 Step8. You have added the network printer to the PC successfully. The information of the printer is displayed in the windows. Click “Finish”.

  • Page 127: Lpr Printing

    LPR Printing...

  • Page 128: Introduction

    10.1 Introduction LPR Printing (Line Printer Remote technology) allows users to connect to printers via TCP/IP for printing sharing. The computer with Windows 98SE/Me/NT/2000/XP/2003, Windows Vista and MAC OS 10.x Operating Systems can use the protocol to share printing in the network. Print Server can support LPR printing by default.

  • Page 129: Standard Lpr Settings In Windows Xp

    10.2 Standard LPR Settings in Windows To configure the LPR setting in Windows XP, please follow the steps below. The LPR setup procedures in Windows 2000 and 2003 are similar. Click “Start”, choose “Settings” and select “Printers and Faxes”. Click “Add a Printer”. The “Add Printer Wizard”...
  • Page 130 Select “Local Printer attached to this computer” and click “Next”. Choose “Create a new port” and “Standard TCP/IP Port”. Click “Next”.
  • Page 131 Please make sure that the Print Server and the Printer have turned on and connected to the network correctly before you continue. Click “Next”. Enter the IP Address of the Print Server in the “Printer Name or IP Address”. Click “Next”.
  • Page 132 Select “Custom” and click “Settings”. When you have finished the settings at step 9, click “Next” to continue. Select “LPR” and enter “lpt1” in the “Queue Name”, click “OK”. By default the queue name of the Print Server is “lpt1”.
  • Page 133 Click “Finish”.
  • Page 134 Select a suitable printer manufacturer and the printer model and click “Next”. If your printer is not in the list, click “Have Disk…” to install the driver of the printer. After installation, the printer model will be added to the list. Choose to set the print whether as a default printer or not.
  • Page 135 You have added the network printer to the PC successfully. The information of the printer is displayed in the windows. Click “Finish”.

  • Page 136: Standard Lpr Settings In Windows Vista

    11.3 Standard LPR Settings in Windows Vista To configure the LPR setting in Windows Vista, please follow the steps below. Click “Start”, select “Settings\Printers”. Click “Add a Printer”. The “Add Printer” wizard is displayed. Select “Add a local printer”.
  • Page 137 Choose “Create a new port” and select “Standard TCP/IP Port”. Click “Next”. Enter the IP Address of the Print Server in the “Hostname or IP address” field. Click “Next”.
  • Page 138 Select “Custom” and click “Settings”. When you have finished the settings at step 7, click “Next” to continue. Select “LPR” and enter “lpt1” in the “Queue Name”, click “OK”. By default the queue name of the Print Server is “lpt1”.
  • Page 139 Select the printer manufacturer and the printer model and click “Next”. If your printer is not in the list, click “Have Disk…” to install the driver of the printer. After installation, the printer model will be added to the list.
  • Page 140 Name your printer and set the default printer, click “Next”. The printer drivers are being installed.
  • Page 141 It is recommended to print a test page. Click “Finish”. The printer is added to “Printers” page, you have added the printer to your computer successfully. Now you can start to print from your computer to the print server.

  • Page 142: Standard Lpr Settings In Mac Os 10.X

    11.4 Standard LPR Settings in MAC OS 10.x 11.4.1 MAC 10.4.x To enable LPR Printing in Macintosh 10.4.x, please follow the procedures below. Open Print and Fax from the System Preferences. With the Printing tab selected, click the “Add” button. When the Printer Browser opens, select “IP Printer”.

  • Page 143: Mac 10.3.X

    11.4.2 MAC 10.3.x To enable LPR Printing in Macintosh 10.3.x, please follow the procedures below. In the Desktop, click “System Preferences”. Click “Print & Fax”.
  • Page 144 From the “Print & Fax” screen, click “Set Up Printers…”. Click “Add” to add the new Print Server through TCP/IP.
  • Page 145 Enter the “Printer Type”, “Printer Address” and “Queue Name” and select the “Printer Model” to setup the Print Server. Click “Add” to continue. Printer Type: LPD/LPR Printer Address: Input the IP Address of the Print Server Queue Name: The queue name of the Print Server is “lpt1”.
  • Page 146 The Print Server is installed completely. You can see it in the “Printer List”. You can print a file to check whether the Print Server is installed successfully.

  • Page 147: Windows Xp Sp2 Setup

    Windows XP SP2 Setup In Windows XP SP2, XP SP2’s firewall would block the unknown communications. This print server has allowed the communications data passed through the XP SP2’s firewall. In case that you do not find any print server listed on the “Available Ports”...
  • Page 148 Step3. Select “Advanced” tab and click “Settings…”.
  • Page 149 Step4. Select “Exceptions” tab and click “Add Program…”.
  • Page 150 Step5. Click “Browse” to add a new program. Step6. Open the “NPUtil” file from “C:\Program Files\PrintServer Utilities” (where C:\ is the system drive).
  • Page 151 Step7. A new program “Network Ports Quick Setup” is displayed in the list, click “Ok”.
  • Page 152 Step8. Click “Ok”. You have completed the setting. The Windows XP SP2 will allow the incoming network connections activated by the program. N20379...
