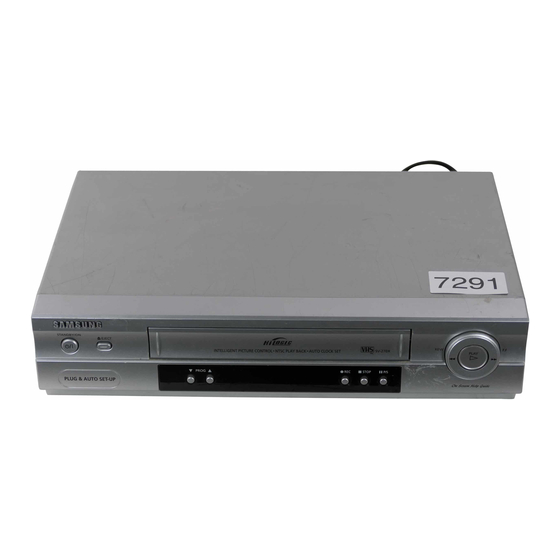

Samsung SV-270GX Instruction Manual

Video cassette recorder.
Hide thumbs

Advertisement

VIDEO
CASSETTE RECORDER
KAZETOV¯
VIDEOREKORDÉR
VIDEOREKORDÉR
SV-675GX SV-275GX
SV-671GX SV-270GX
SV-475GX
SV-470GX
Instruction Manual
UÏivatelská Pfiíruãka
Príruãka pre uÏívatel'a
www.samsungvcr.com

Advertisement

   Related Manuals for Samsung SV-270GX

   Summary of Contents for Samsung SV-270GX

  • Page 1

    VIDEO CASSETTE RECORDER KAZETOV¯ VIDEOREKORDÉR VIDEOREKORDÉR SV-675GX SV-275GX SV-671GX SV-270GX SV-475GX SV-470GX Instruction Manual UÏivatelská Pfiíruãka Príruãka pre uÏívatel’a www.samsungvcr.com...

  • Page 2: Safety Instructions

    About this manual Features Chart Thank you for purchasing a Samsung Video Model Feature 675GX 671GX 475GX 470GX 275GX 270GX Cassette Recorder (VCR). IPC (Intelligent Your Owner’s Instructions contain much Picture Control) valuable information on setting up and using Format 16:9 your VCR.

  • Page 3: Table Of Contents

    Contents Using the Timer Programming Feature ..19 Foreword Safety Instructions ..... 2 Checking a Preset Recording ... . 20 Cancelling a Preset Recording .

  • Page 4: Front View Of The Vcr

    Front View of the VCR (SV-675GX/SV-671GX) STANDBY/ON EJECT PLAY STOP VIDEO CASSETTE BUTTON BUTTON BUTTON BUTTON BUTTON COMPARTMENT STANDBY/ON EJECT PLAY VIDEO L AUDIO R STOP PROG AUX AUDIO L, R PROGRAMME RECORD PAUSE/STILL AUX VIDEO INPUT SOCKETS SELECTION BUTTONS BUTTON BUTTON BUTTON...

  • Page 5: Rear View Of The Vcr

    Rear View of the VCR AERIAL IN AV2 (DEC./EXT.) SCART (EURO-21) SOCKET CONNECTOR (SV-675GX/SV-671GX/SV-475GX/SV-275GX ONLY) AV2 (SATELLITE IN) AV1 (EURO AV) AV1 (EURO AV) IN/OUT RCA AUDIO L, R OUTPUT SOCKETS OUT TO TV SCART (EURO-21) SOCKET CONNECTOR (SV-675GX/SV-671GX ONLY) ENG-5...

  • Page 6: Infrared Remote Control

    Infrared Remote Control (SV-675GX) VCR STANDBY/ON TV STANDBY/ON VCR STANDBY/ON BUTTON TV STANDBY/ON BUTTON SLOW SLOW BUTTON SHUTTLE SHUTTLE BUTTON V-LOCK V-LOCK BUTTON CLR/RST F.ADV INDEX INDEX BUTTON CLEAR AND RESET BUTTON -/-- FRAME ADVANCE BUTTON SELECT INPUT TV BUTTON TUNER, AV1, AV2, AUX SELECTION / VCR BUTTON REPEAT SELECTION BUTTON...

  • Page 7: Display Indicators, Accessories, Inserting Batteries In The Remote Control

    4 Timer indicator 7 Rec indicator SATELLITE IN) Accessories (EURO AV) You have just purchased a SAMSUNG Video Cassette Recorder (VCR). Together with your VCR, you will find the following accessories in the box. REMOTE CONTROL OWNER’S INSTRUCTIONS Plug the coaxial cable supplied into the...

  • Page 8: Connecting Your Vcr To The Tv Using The Scart Cable

    Connecting Your VCR to the TV Connecting a Decoder for scram- bled PAY TV broadcasts (SV-675GX/ using the SCART Cable SV-671GX/ SV-475GX/SV-275GX Only) You can connect your VCR to the television using the SCART cable if the appropriate input is available on the This VCR is fully equipped to receive scrambled Pay TV television.

  • Page 9: Plug & Auto Set Up

    Connecting Your VCR to the Satellite Plug & Auto Set Up receiver or Other Equipment (SV 675GX/ SV-671GX/SV-475GX/SV-275GX Only) Your VCR will automatically set itself up when it is plugged into the mains for the first time. TV stations You can connect your VCR to the Satellite receiver or will be stored in memory.

  • Page 10: Tuning Your Television For The Vcr, Setting The Date And Time

    Tuning Your Television for the VCR Setting the Date and Time You must tune your television for the VCR only if you our VCR contains a 24-hour clock and calendar used are not using a Scart cable Automatically stop programme recording Preset your VCR to record a programme To view pictures from your VCR when a Scart cable automatically...

  • Page 11: Displaying/hiding On-screen Information, Choosing Your Language, Setting The Vcr Output Channel

    Displaying/Hiding On-Screen Setting the VCR Output Information Channel Your VCR displays most information both on the Your VCR output channel may need to be VCR and the television. changed if the pictures suffer from interference or if your TV cannot find the pictures. Also, You can choose to display or hide this information you can change the VCR output channel to on the television screen (except for the Index,...

  • Page 12: Presetting The Stations Automatically

    Presetting the Stations Automatically You do not need to preset the stations if The number of stations automatically you have already set them automatically stored by the VCR depends on the (see Plug & Auto Set Up on page 10). number of stations that it has found.

  • Page 13: Presetting The Stations Manually

    Presetting the Stations Manually Press the ❿ button to activate or deactivate use of You do not need to preset the stations the decoder for the TV station, if necessary. manually if you have already set them automatically. Press the buttons until the NAME is selected.

  • Page 14: Clearing A Preset Station, Changing The Preset Station Table

    Clearing a Preset Station Changing the Preset Station Table If you have stored a TV station: You can rearrange the preset TV stations according to your own preferences programme number assigned to That you do not require the station. At the wrong programme position you can cancel it.

  • Page 15: Selecting The Cassette Type, Selecting The Recording Speed (sv-675gx Sv-671gx/ Sv-475gx/sv-470gx Only)

    Switching between the TV and Selecting the Recording Speed VCR Modes (SV-675GX/SV- (SV-675GX/SV-671GX/ SV- 671GX/475GX/SV-275GX Only) 475GX/SV-470GX Only) The TV/VCR button allows you to record one channel with the VCR while you watch another You can record a cassette at two different channel on the TV.

  • Page 16: Nicam (sv-675gx/ Sv-671gx Only), Protecting A Recorded Cassette, Recording A Programme Immediately

    NICAM Recording a Programme (SV-675GX/SV-671GX Only) Immediately NICAM programmes are divided into 3 types. Before recording a programme, you must have NICAM Stereo, NICAM Mono and Bilingual preset the corresponding station (unless you are (transmission in another language). NICAM recording via an external video source). If you programmes are always accompanied by a standard have not done so, refer to pages 12 and 13.

  • Page 17: Recording A Programme With Automatic Stop, Using The Showview Feature (sv-675gx Sv-475gx/sv-275gx Only)

    Recording a Programme with Using the ShowView Feature ( SV- Automatic Stop 675GX/SV-475GX/SV-275GX Only) BThis function enables you to record up to nine Before presetting your VCR: hours of programmes. (LP) Switch on both the television and your VCR Check that the date and time are correct Your VCR stops automatically after the Insert the cassette on which the programme requested length of time.

  • Page 18

    Modifying ShowView Using the ShowView Feature ( SV- Programming ( SV-675GX/SV- 675GX/SV-475GX/SV-275GX Only) 475GX/SV-275GX Only) If no cassette has been inserted when you press VCR STANDBY/ON (STANDBY/ON) the Record indicator ( ) flashes. If the Press the ➛ or ❿ buttons, Record a programme safety tab on the cassette has been broken, NICAM...

  • Page 19: Using The Timer Programming Feature

    Using the Timer Programming Feature The Timer Programming feature allows you to With SV-675GX/SV-671GX you can select the preset the VCR to record a programme up to VPS or PDC recording mode. one month before that programme is to be a.

  • Page 20: Checking A Preset Recording, Cancelling A Preset Recording, Playing A Cassette, Adjusting Picture Alignment Manually

    Checking a Preset Recording Playing a Cassette You can check your preset recordings: This function allows you to play back any pre- recorded cassette. When you have finished presetting the VCR If you have forgotten which programmes Switch on both the television and your VCR. will be recorded Insert the video cassette to be played.

  • Page 21: Intelligent Picture Control

    Intelligent Picture Control Intelligent Picture Control (SV-671GX/ SV-475GX/SV-470GX/ SV-275GX/SV-270GX Only) The Intelligent Picture Control Feature allows you to adjust the sharpness of the image The Intelligent Picture Control Feature allows automatically, according to your own you to adjust the sharpness of the image preferences.

  • Page 22: Format 16:9 (wide Screen)(sv-675gx Sv-671gx/sv-475gx/ Sv-275gx Only)

    Selecting the Audio Output Mode Format 16:9 (WIDE SCREEN) (SV-675GX/SV-671GX Only) (SV-675GX/SV-671GX/ SV-475GX/SV-275GX Only) When monitoring a TV programme or playing back a Hi-Fi recorded video tape, press the Your VCR can automatically read a 16:9 signal AUDIO button to select a desired sound output. from the AV2 input or a prerecorded 16:9 tape.

  • Page 23: Selecting The Colour Mode, Selecting The Audio Mute Mode (sv-475gx Sv-470gx/sv-275gx/ Sv-270gx Only)

    Selecting the Colour Mode Playing a Cassette in Slow Motion Before recording or playing back a cassette, You can play a cassette in slow motion. you can select the required system standard. No sound is heard when playing back Otherwise, the system automatically selects the a cassette in slow motion.

  • Page 24: Picture Search, Fast Forward/rewind, Searching For A Specific Sequence

    Searching for a Specific Picture Search, Fast Forward/Rewind Sequence Picture Search enables you to Fast Forward or Each time you record a cassette on this VCR, an Rewind and look for a particular part of a tape. “index” is automatically marked on the tape when recording starts.

  • Page 25: Interval Repeat Play, Auto Repeat Play

    Interval Repeat Play Auto Repeat Play You can set interval repeat play to repeat the You can set repeat play to repeat the tape cassette several times for special interval. continuously from beginning to end. Press MENU on the remote control. Press MENU on the remote control.

  • Page 26: Using The Tape Counter

    Connecting an RCA Audio/Video Input Using the Tape Counter Cable (SV-675GX/SV-671GX Only) The tape counter: You can connect other audio/video equipment to your VCR using audio/video cables if the Indicates the elapsed time in the play and record appropriate outputs are available on the modes (hours, minutes and seconds) equipment chosen.

  • Page 27: Using The Assemble Edit Function, Recording From Another Vcr Or Camcorder

    Using the Assemble Edit Recording from Another VCR or Camcorder Function This function allows you to start a new recording ou can copy a cassette to your VCR from at a specific position on the cassette while another video source, such as another VCR or a maintaining a very smooth scene change.

  • Page 28: Auto Power Off

    Using the TV Buttons on the Remote Control (SV-675GX Only) Your VCR remote control will work with You can then control the television using the following Samsung televisions and compatible brands. buttons. To determine whether your television is compatible, follow the instructions below.

  • Page 29: Technical Specifications

    Technical Specifications Design and specifications are subject to change without notice. MODEL SV-675GX/SV-671GX SV-475GX/SV-470GX/ SV-275GX/SV-270GX Format VHS PAL standard VHS PAL standard Heads Video: 4 rotary heads Video: 4 rotary heads (SV-445G/SV-441G) Video: 2 rotary heads (SV-245G/SV-241G) Hi-Fi audio: 2 rotary heads Audio/Control: 1 stationary head Audio/Control: 1 stationary head Erase: 1 full track erase head...

  • Page 30: Problems And Solutions

    Problems and Solutions Before contacting the Samsung after-sales service, perform the following simple checks. Problem Explanation/Solution No power Check that the power plug is connected to a wall outlet. Have you pressed the VCR STANDBY/ON (STANDBY/ON) button? You cannot insert a video cassette A video cassette can only be inserted with the window side up and the safety tab facing you.

  • Page 31: Tv Frequency Table (system-d/k + B/g)

    TV Frequency Table (System-D/K + B/G) 002~012 :CCIR STD VHF 201~241 :CCIR STD CABLE 013~020 :ITALY 244~250 :MOROCCO 021~069 :CCIR STD UHF 251~255 :BELGUIM 071~075 :CCIR CABLE DISP CH Band DISP CH Band DISP CH Band 48.25 CCIR 783.25 CCIR 43.25 Angola 55.25...

  • Page 32
