Installing the unit

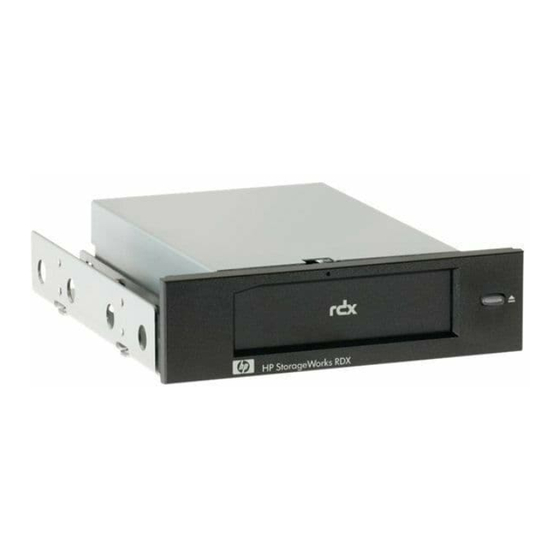

HP StorageWorks RDX DL Server Module is an internal assembly for a Proliant DL server. It is

supplied with a USB and a power cable.

1. Power down the server, remove the power cord and then remove the access panel.

2. If an optical drive is already installed, remove it, leaving the SATA cable connected to the system

board. You can re-use the drive and cable with the HP StorageWorks RDX DL Server Module.

3. Remove the optical drive cage from the server, as instructed in the HP ProLiant Server User Guide.

Retain the screws.

4. Install and route the supplied

power and USB cables from the

server's system board.

1 internal USB connector

2 power connector

3 SATA optical drive connector

(optional)

5. Slide the HP StorageWorks RDX DL Server Module partially into the empty server bay.

6. Connect the other end of the power

and USB cables to the connectors

on the rear of the HP StorageWorks

RDX DL Server Module.

1 USB connector

2 power connector

3 SATA optical drive connector

(optional)
