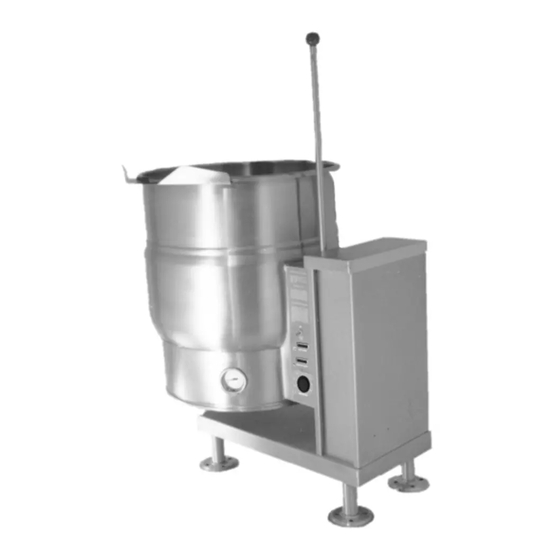

Blodgett KTT-20E Parts List
Self-generating steam jacketed tilting kettle
Hide thumbs
Also See for KTT-20E:
- Brochure & specs (12 pages) ,
- Installation and operation manual (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for Blodgett KTT-20E
Summary of Contents for Blodgett KTT-20E
-
Page 1: Parts List
PARTS LIST - SELF-GENERATING STEAM JACKETED TILTING KETTLE, MODEL: KTT-20E PARTS LIST SELF-GENERATING STEAM JACKETED TILTING KETTLE MODEL: KTT-20E October 26, 2006 PART NUMBER 10035R3 2006-10-26... - Page 2 PARTS LIST - SELF-GENERATING STEAM JACKETED TILTING KETTLE, MODEL: KTT-20E PART NUMBER 10035R3 2006-10-26...
- Page 3 PARTS LIST - SELF-GENERATING STEAM JACKETED TILTING KETTLE, MODEL: KTT-20E ITEM Part # DESCRIPTION QUANTITY 40613 Relief Valve 50 PSI 41044 Down Tube 40548 Air Vent Assembly 40259 Phenolic Knob 42795 Handle 40352 Console Cover 40473 Console Cover Gasket 42948 Acorn Nut ½...
- Page 4 PARTS LIST - SELF-GENERATING STEAM JACKETED TILTING KETTLE, MODEL: KTT-20E ITEM Part # DESCRIPTION QUANTITY 41619 Element Gasket 41367 Element Assembly, 208V, 12 kW 41368 Element Assembly, 220/380V, 12 kW 41369 Element Assembly, 240/415V, 12 kW 41370 Element Assembly, 480V, 12 kW 42221 Element Assembly, 600V, 12 kW 42886...
- Page 5 PARTS LIST - SELF-GENERATING STEAM JACKETED TILTING KETTLE, MODEL: KTT-20E ITEM Part # DESCRIPTION QUANTITY 40994 Bezel 41006 Dial 40095 Bolt 41565 Bottom Cover 49053 Pilot Light 40953 Pilot Light 41883 Power Switch 40076 Screw 10-32 x 1/2 42692 Pressure Gauge 41609 Pressure Gauge Mounting Bracket 40415...
