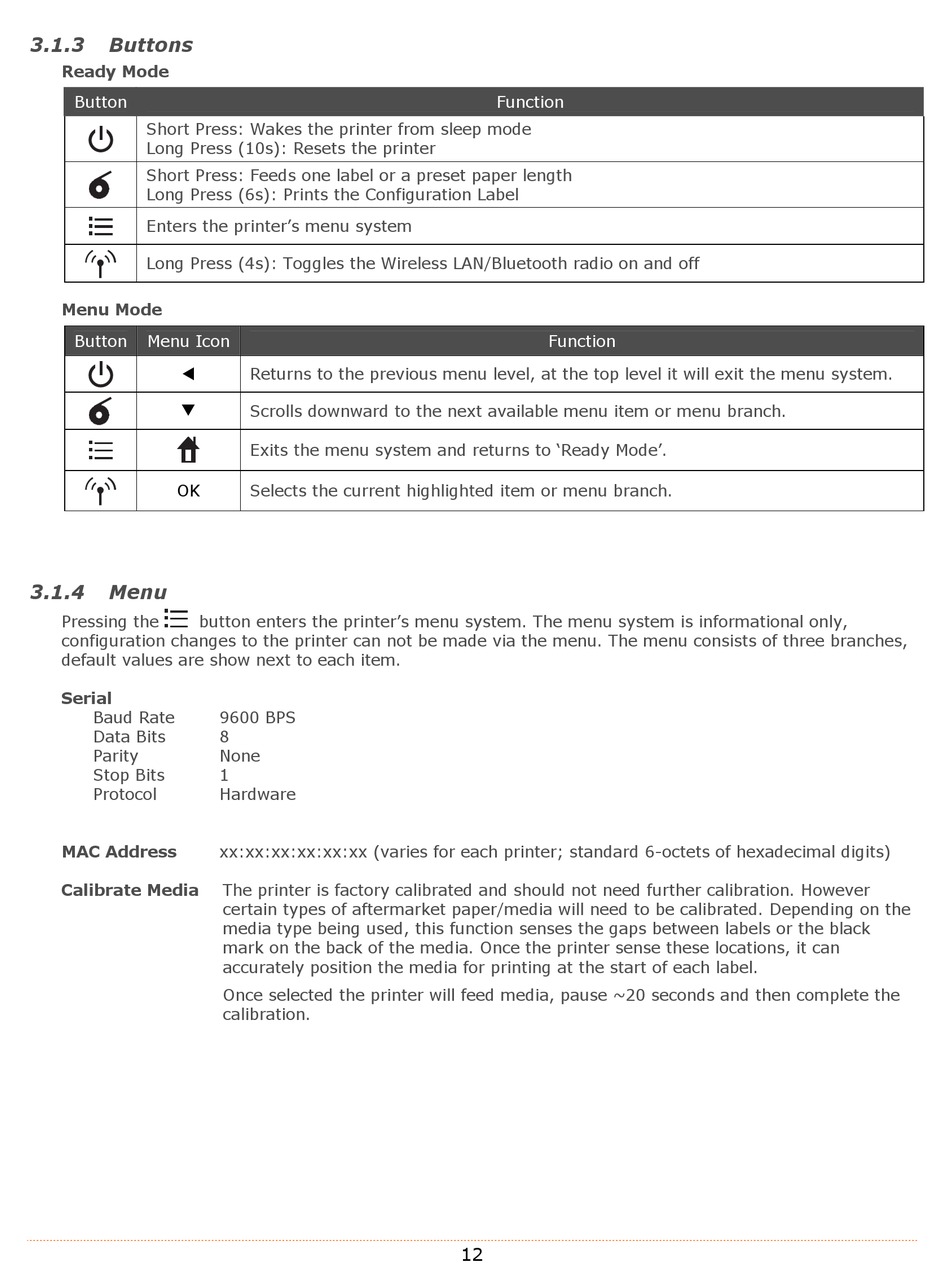

Buttons; Menu - Datamax RL4 User Manual

3.1.3

Buttons

Ready Mode
Button
Short Press: Wakes the printer from sleep mode
Long Press (10s): Resets the printer
Short Press: Feeds one label or a preset paper length
Long Press (6s): Prints the Configuration Label
Enters the printer's menu system
Long Press (4s): Toggles the Wireless LAN/Bluetooth radio on and off
Menu Mode
Button Menu Icon


OK
3.1.4

Menu

Pressing the button enters the printer's menu system. The menu system is informational only,
configuration changes to the printer can not be made via the menu. The menu consists of three branches,
default values are show next to each item.
Serial
Baud Rate
Data Bits
Parity
Stop Bits
Protocol
MAC Address
Calibrate Media
Returns to the previous menu level, at the top level it will exit the menu system.
Scrolls downward to the next available menu item or menu branch.
Exits the menu system and returns to 'Ready Mode'.
Selects the current highlighted item or menu branch.
9600 BPS
8
None
1
Hardware
xx:xx:xx:xx:xx:xx (varies for each printer; standard 6-octets of hexadecimal digits)
The printer is factory calibrated and should not need further calibration. However
certain types of aftermarket paper/media will need to be calibrated. Depending on the
media type being used, this function senses the gaps between labels or the black
mark on the back of the media. Once the printer sense these locations, it can
accurately position the media for printing at the start of each label.
Once selected the printer will feed media, pause ~20 seconds and then complete the
calibration.
