CABINET PARTS
REFRIGERATOR
For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11
(White)
(Black)
(Bisque)
(Stainless)
(Ultra Silver)
10−08 Litho In U.S.A. (mat) (psw)
1
Part No. W10239572 Rev.A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MFI2266AEU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Maytag MFI2266AEU

  • Page 1 CABINET PARTS REFRIGERATOR For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11 (White) (Black) (Bisque) (Stainless) (Ultra Silver) 10−08 Litho In U.S.A. (mat) (psw) Part No. W10239572 Rev.A...
  • Page 2: Cabinet Parts

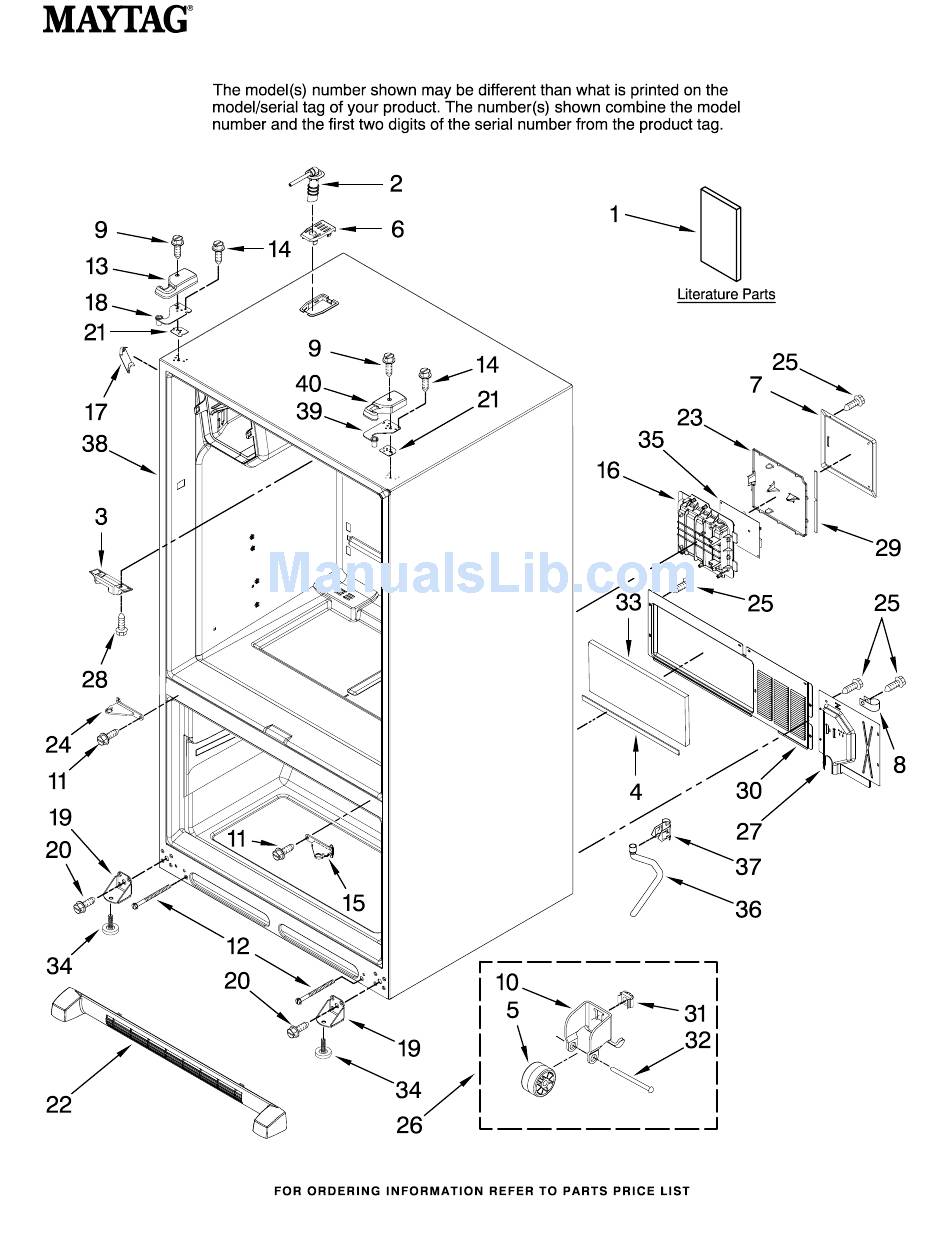

    CABINET PARTS For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11 (White) (Black) (Bisque) (Stainless) (Ultra Silver) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006303 Screw, Top Hinge Hinge, Center (LT) Literature Parts Hinge, Center (RT) 67006277 White 12827970 Tech Sheet 67006379 White 67006442 Black W10175444 Use &...
  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11 (White) (Black) (Bisque) (Stainless) (Ultra Silver) W10239572...
  • Page 4 REFRIGERATOR LINER PARTS For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11 (White) (Black) (Bisque) (Stainless) (Ultra Silver) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 67006328 Module, Light 67006326 Foil, Light 67006327 Cover, Light 67006316 Grille, Air 12466103 Switch, Light (2) 67006318 Cover, Light 67003901 Housing, Light A0282812 Bulb, Light...
  • Page 5: Shelf Parts

    SHELF PARTS For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11 (White) (Black) (Bisque) (Stainless) (Ultra Silver) W10239572...
  • Page 6 SHELF PARTS For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11 (White) (Black) (Bisque) (Stainless) (Ultra Silver) Illus. Part DESCRIPTION 1 W10165870 Glass, Pantry 2 W10165872 Extr, Glass Support 67005920 Front, Crisper Pan 4 W10166785 Extr, Glass Support (1) 5 12227301WD Brace, Pantry (2) 67001719 Track, Pantry Support, Pantry 67001721 Left...
  • Page 7: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11 (White) (Black) (Bisque) (Stainless) (Ultra Silver) W10239572...
  • Page 8 MOTOR AND ICE CONTAINER PARTS For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11 (White) (Black) (Bisque) (Stainless) (Ultra Silver) Illus. Part DESCRIPTION 1 D7824706Q Icemaker (Includes Fill Tube Cup, Wire Harness & Sensor Arm 2 W10121269 Impinger Assembly 67006424 Shroud, Ice Box Fan 4 W10162697 Motor, Fan 67006337 Blade, Fan...
  • Page 9: Freezer Liner Parts

    FREEZER LINER PARTS For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11 (White) (Black) (Bisque) (Stainless) (Ultra Silver) W10239572...
  • Page 10 FREEZER LINER PARTS For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11 (White) (Black) (Bisque) (Stainless) (Ultra Silver) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 12002355 Thermistor Kit 12002497 Gear (Left) (Incl. #7) 67003924 Cover, Thermistor 67004261 Shaft, Rack Y12570701 Socket, Light 12002497 Gear, (Right) (Incl.
  • Page 11: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11 (White) (Black) (Bisque) (Stainless) (Ultra Silver) W10239572...
  • Page 12 REFRIGERATOR DOOR PARTS For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11 (White) (Black) (Bisque) (Stainless) (Ultra Silver) Illus. Part DESCRIPTION Door, Left W10160133 White W10160124 Black W10160127 Bisque W10160130 Stainless W10166239 Ultra Silver 67003637 Door, Dairy 67001279 Tray, Dairy 67006313 Bin, Shelf (Chiller Top) 67006400 Screw 67006901 Screw, Handle...
  • Page 13: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11 (White) (Black) (Bisque) (Stainless) (Ultra Silver) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Housing, Dispenser Sump, Dispenser 67006400 Screw (3) (Not Serviced) 67006394 White 67006295 Ring, Target Keyboard 67006399 Black Facade, Dispenser W10175744 White...
  • Page 14: Freezer Door Parts

    FREEZER DOOR PARTS For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11 (White) (Black) (Bisque) (Stainless) (Ultra Silver) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Gasket, Door Freezer Door 10 W10163002 Adapter, Bin W10164046 White W10160134 White (Inner) W10164047 Black W10160125 Black 67006372 Bracket/Glide 67006901 Screw, Handle...
  • Page 15: Unit Parts

    UNIT PARTS For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11 (White) (Black) (Bisque) (Stainless) (Ultra Silver) W10239572...
  • Page 16 UNIT PARTS For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11 (White) (Black) (Bisque) (Stainless) (Ultra Silver) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006434 Axle (2) 67006433 Screw 22 W10166256 Evaporator 2 W10156818 Blade, Fan Following Parts Not Illustrated 12591404 Basepan and Optional Parts Not Included W10162951 Right Side...
  • Page 17 OPTIONAL PARTS (NOT INCLUDED) For Models: MFI2266AEW11, MFI2266AEB11, MFI2266AEQ11, MFI2266AES11, MFI2266AEU11 (White) (Black) (Bisque) (Stainless) (Ultra Silver) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous Refinishing Material Parts Not Illustrated and Optional Parts (Not Included) 212643 Sealer, Gum 799340 Enamel, Black (4 Feet) (1 Qt.
