- Page 1 CABINET PARTS REFRIGERATOR For Models: MFI2266AEB10, MFI2266AEQ10, MFI2266AES10, MFI2266AEU10, MFI2266AEW10 (Black) (Bisque) (Stainless) (Ultra Silver) (White) 9−07 Litho In U.S.A. (pl) Part No. W10166583 Rev.A...
-
Page 2: Cabinet Parts

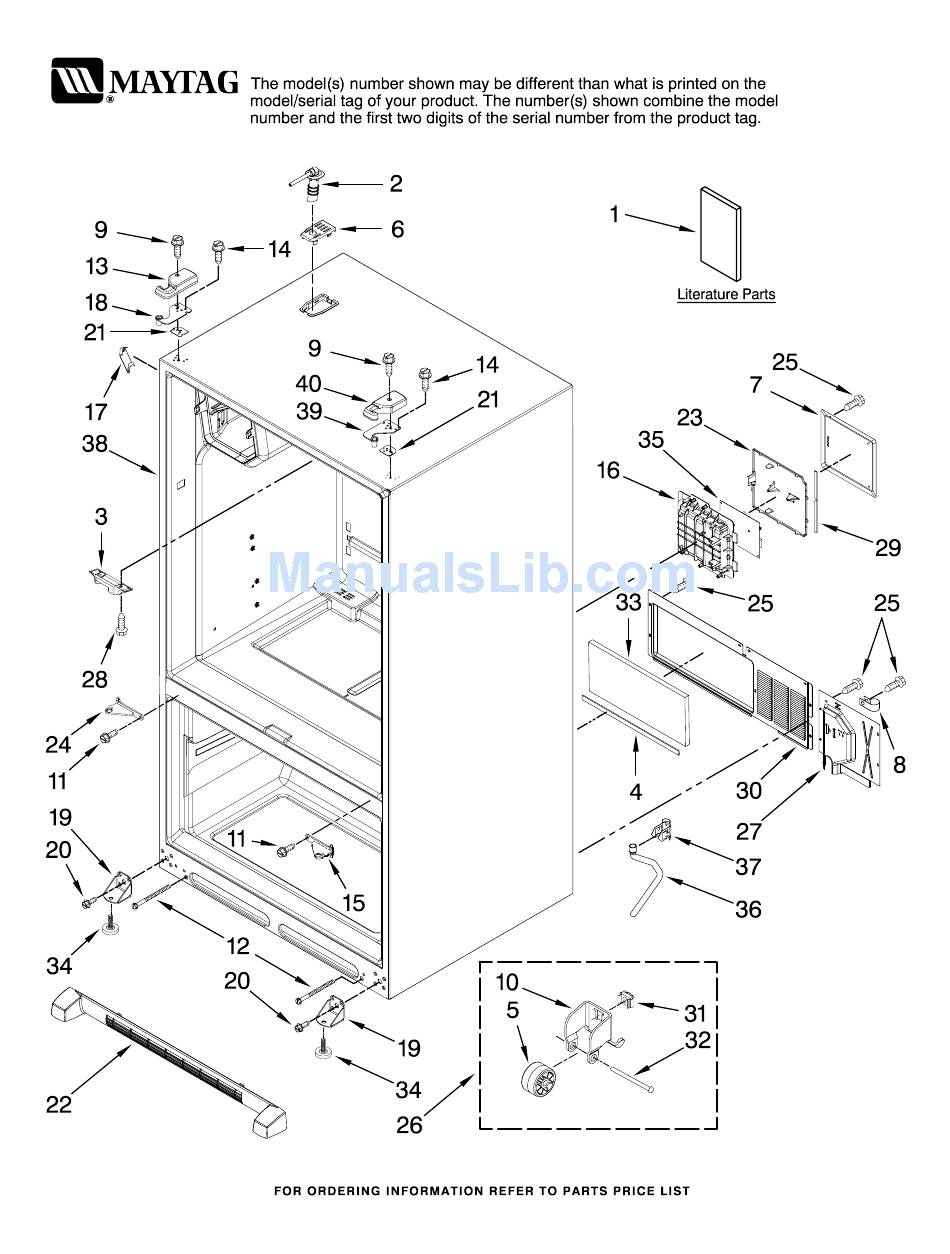

For Models: MFI2266AEB10, MFI2266AEQ10, MFI2266AES10, MFI2266AEU10, MFI2266AEW10 (Black) Illus. Part DESCRIPTION Literature Parts W10164009 Tech Sheet W10164010 Use & Care Guide W10166619 Tag, Energy 16026312 Service Manual (Bottom Mount) 2 W10165840 Tube W/Waterline, Fill−IM 67003405 Block, Pivot B5759649 Gasket, MC Back... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: MFI2266AEB10, MFI2266AEQ10, MFI2266AES10, MFI2266AEU10, MFI2266AEW10 (Black) (Bisque) (Stainless) (Ultra Silver) (White) W10166583... - Page 4 REFRIGERATOR LINER PARTS For Models: MFI2266AEB10, MFI2266AEQ10, MFI2266AES10, MFI2266AEU10, MFI2266AEW10 (Black) (Bisque) Illus. A0282812 Bulb, Light Y12570701 Socket, Light 14 UKF8001AXX Filter, Water 21 W10165861 Cover, Ice Box 22 M0238642 Screw 24 W10165864 Waterline, Cabinet 25 W10118193 Enclosure, Water 26 W10118194 Lid, Enclosure...
-
Page 5: Shelf Parts
SHELF PARTS For Models: MFI2266AEB10, MFI2266AEQ10, MFI2266AES10, MFI2266AEU10, MFI2266AEW10 (Black) (Bisque) (Stainless) (Ultra Silver) (White) W10166583... - Page 6 SHELF PARTS For Models: MFI2266AEB10, MFI2266AEQ10, MFI2266AES10, MFI2266AEU10, MFI2266AEW10 (Black) (Bisque) Illus. 1 W10165870 Glass, Pantry 2 W10165872 Extr, Glass 4 W10166785 Extr, Glass 5 12227301WD Brace, Pantry (2) W10166660 Left W10166668 Right 9 W10165873 Gasket, Pantry 10 W10165876 Housing, Control...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: MFI2266AEB10, MFI2266AEQ10, MFI2266AES10, MFI2266AEU10, MFI2266AEW10 (Black) (Bisque) (Stainless) (Ultra Silver) (White) W10166583... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: MFI2266AEB10, MFI2266AEQ10, MFI2266AES10, MFI2266AEU10, MFI2266AEW10 (Black) (Bisque) Illus. 1 W10149456 Icemaker (Includes 4 W10162697 Motor, Fan 6 W10165970 Clip, Fan Motor 8 W10162707 Divider, Ice Box 11 W10127427 Damper, Control 20 W10165971 Ice Bin Assembly...
-
Page 9: Freezer Liner Parts
FREEZER LINER PARTS For Models: MFI2266AEB10, MFI2266AEQ10, MFI2266AES10, MFI2266AEU10, MFI2266AEW10 (Black) (Bisque) (Stainless) (Ultra Silver) (White) W10166583... - Page 10 FREEZER LINER PARTS For Models: MFI2266AEB10, MFI2266AEQ10, MFI2266AES10, MFI2266AEU10, MFI2266AEW10 (Black) (Bisque) Illus. Y12570701 Socket, Light A0282812 Bulb, Light 11 W10165973 Cover, Evap W10122147 Left W10122148 Right 19 W10120018 Slide, Drawer (2) W10120017 Left W10120083 Right 26 W10162809 Motor, Evaporator...
-
Page 11: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: MFI2266AEB10, MFI2266AEQ10, MFI2266AES10, MFI2266AEU10, MFI2266AEW10 (Black) (Bisque) (Stainless) (Ultra Silver) (White) W10166583... - Page 12 REFRIGERATOR DOOR PARTS For Models: MFI2266AEB10, MFI2266AEQ10, MFI2266AES10, MFI2266AEU10, MFI2266AEW10 (Black) (Bisque) Illus. W10160133 White W10160124 Black W10160127 Bisque W10160130 Stainless W10166239 Ultra Silver W10165975 White W10165977 Black W10165979 White W10165978 Black W10136871 Stainless 12 W10166007 Bin, Shelf W10164404 White...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: MFI2266AEB10, MFI2266AEQ10, MFI2266AES10, MFI2266AEU10, MFI2266AEW10 (Black) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) Keyboard W10145241 White W10145242 Black W10145246 Bisque 67006294 Board, L.V. W10166583 (Bisque) (Stainless) Illus. Part DESCRIPTION Sump, Dispenser 67006394 White 67006399 Black... -
Page 14: Freezer Door Parts
For Models: MFI2266AEB10, MFI2266AEQ10, MFI2266AES10, MFI2266AEU10, MFI2266AEW10 (Black) Illus. Part DESCRIPTION Freezer Door W10160134 White W10160125 Black W10160128 Bisque W10160131 Stainless W10166241 Ultra Silver Handle, Door W10123792 White W10123794 Black W10123793 Bisque W10123795 Stainless 67006408 Screw FREEZER DOOR PARTS (Bisque) (Stainless) Illus. -
Page 15: Unit Parts
UNIT PARTS For Models: MFI2266AEB10, MFI2266AEQ10, MFI2266AES10, MFI2266AEU10, MFI2266AEW10 (Black) (Bisque) (Stainless) (Ultra Silver) (White) W10166583... - Page 16 For Models: MFI2266AEB10, MFI2266AEQ10, MFI2266AES10, MFI2266AEU10, MFI2266AEW10 (Black) Illus. Part DESCRIPTION 67006433 Screw 2 W10162928 Blade, Fan 67005744 Basepan 67006425 Screw 67004954 Screw (3) 67006737 Screw, Clip 7 W10119239 Harness, Evap Heater 67004713 Pan, Drain 61004743 Grommet (3) 10 W10166768 Heater, Defrost...
- Page 17 OPTIONAL PARTS (NOT INCLUDED) For Models: MFI2266AEB10, MFI2266AEQ10, MFI2266AES10, MFI2266AEU10, MFI2266AEW10 (Black) Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) Customer Touch−Up Material 350942 Primer, White (13 Oz. Spray Can) 350939 Enamel, Black (13 Oz. Spray Can) 350930 Enamel, White (13 Oz.
