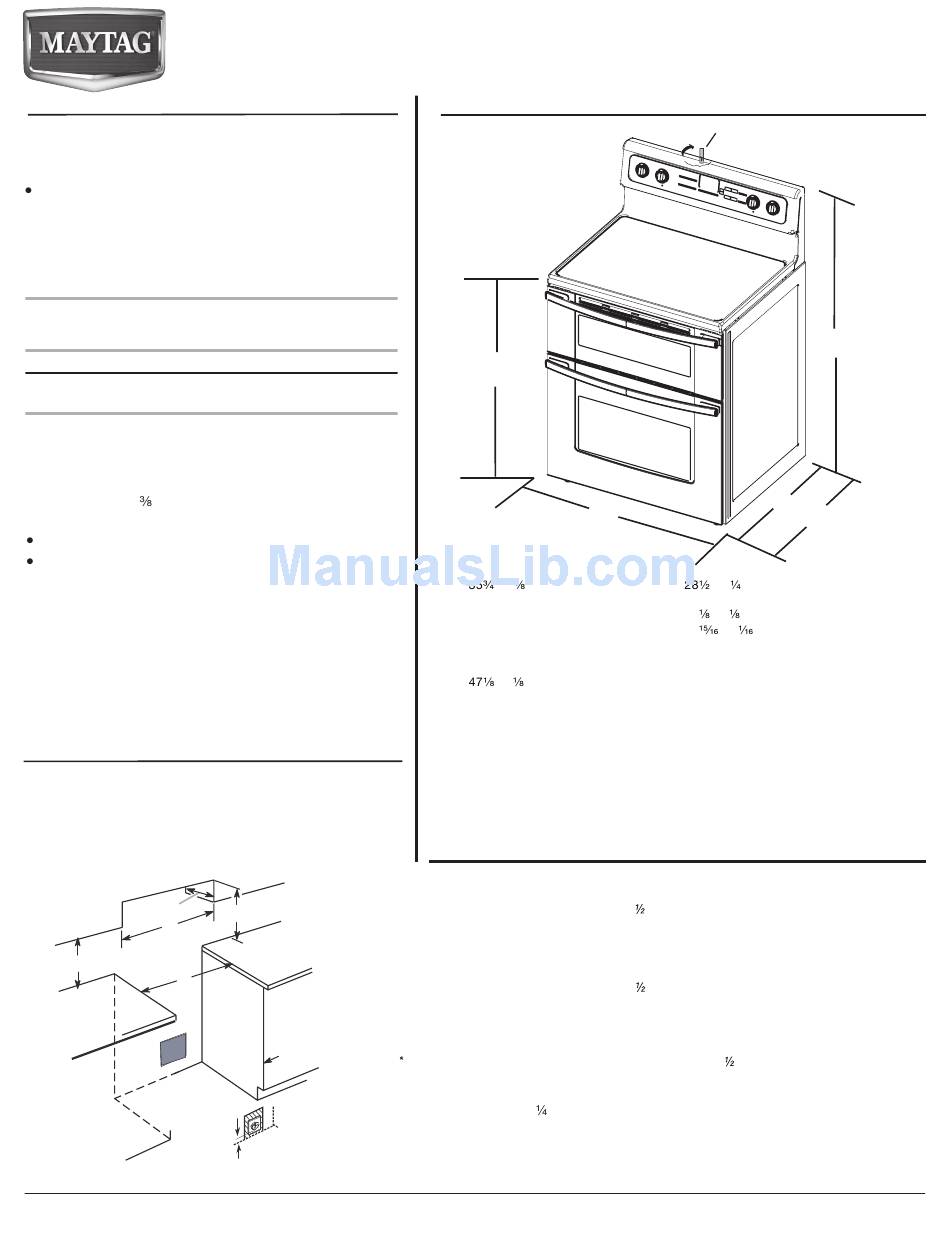

Maytag MET8665X Dimension Manual

30" (76 cm) Freestanding Electric Range
PRODUCT MODEL NUMBERS
MET8665X MET8885X
MET8775X
Electrical Connection:
is range is manufactured with the neutral terminal
Th
connected to the cabinet. Use a 3-wire, UL listed, 40- or
50-amp power supply cord (pigtail) (see the following Range
Rating chart). If local codes do not permit ground through the
neutral, use a 4-wire power supply cord rated at 250 volts, 40
or 50 amps and investigated for use with ranges.
Range Rating*
120/240 Volts 120/208 Volts
8.8 - 16.5 KW 7.8 - 12.5 KW
16.6 - 22.5 KW 12.6 - 18.5 KW
** The NEC calculated load is less than the total connected load
listed on the model/serial rating plate.
** If connecting to a 50-amp circuit, use a 50-amp rated cord
with kit. For 50-amp rated cord kits, use kits that specify use
with a nominal 1 " (34.9 mm) diameter connection
opening.
A circuit breaker is recommended.
The range can be connected directly to the circuit breaker box
(or fused disconnect) through flexible or nonmetallic
sheathed, copper or aluminum cable. See the "Electrical
Connection - U.S.A Only" section.
CABINET OPENING DIMENSIONS
Cabinet opening dimensions shown are for:
25" (63.5 cm) countertop depth,
24" (61 cm) base cabinet depth,
36" (91.4 cm) countertop height
B
C
A
E
J
G
I
H
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Specified Rating of
Power Supply Cord Kit
and Circuit Protection
Amps
40 or 50**
50
A. 18" (45.7 cm) upper cabinet
B. 13" (33.0 cm) upper cabinet
D
C. 30" (76.2 cm) min. opening
D. For minimum clearance to the
E. 30" (76.2 cm) min. opening
Proper positioning of outlet shown above.
F
Nothing located in shaded areas can extend more than 1 " (3.8 cm)
from wall or range will not slide all the way back.
NOTE: 24" (61.0 cm) minimum when bottom of wood or metal cabinet is
covered by not less than " (0.64 cm) flame retardant millboard covered
with not less than No. 28 MSG sheet steel, 0.015" (0.4 mm) stainless steel,
0.024" (0.6 mm) aluminum or 0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the top of the cooking platform
K
and the bottom of an uncovered wood or metal cabinet.
PRODUCT DIMENSIONS
A*
A. " ± " (90.8 cm ± 0.3 cm)
cooktop height (minimum) with
leveling legs screwed all the
way in*
B. Model/serial/rating plates
(located behind the control
panel)**
C. " ± " (119.7 cm ± 0.3 cm)
overall height (minimum) with
leveling legs screwed all the
way in*
*Range can be raised approximately 1" (2.5 cm) by adjusting
the leveling legs.
**Model/serial/rating plates may be rotated up from behind the
control panel for viewing from the front of the range.
***Excludes handle. Dimension given is from wall to front of oven
door and will vary based on electric outlet receptacle
installation.
to countertop
depth
width.
top of the cooktop, see
NOTE.
width
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
B**
D
F
D. " ± " (72.4 cm ± 0.6 cm)
depth with handle
E. 26 " ± " (66.4 cm ± 0.3 cm)***
F. 29 " ± " (76.0 cm ± 0.2 cm)
width
F. Cabinet door or hinge should
not extend into cutout*
G. 1 " (3.8 cm) min. from right
side cabinet
H. 2" (5.1 cm) min. from floor
I. 7" (17.8 cm) min. from floor
J. 8" (20.3 cm) width
K. 3 " (8.91 cm) min. from floor
C*
E***
Ref. W10289536A
8/18/10
