4

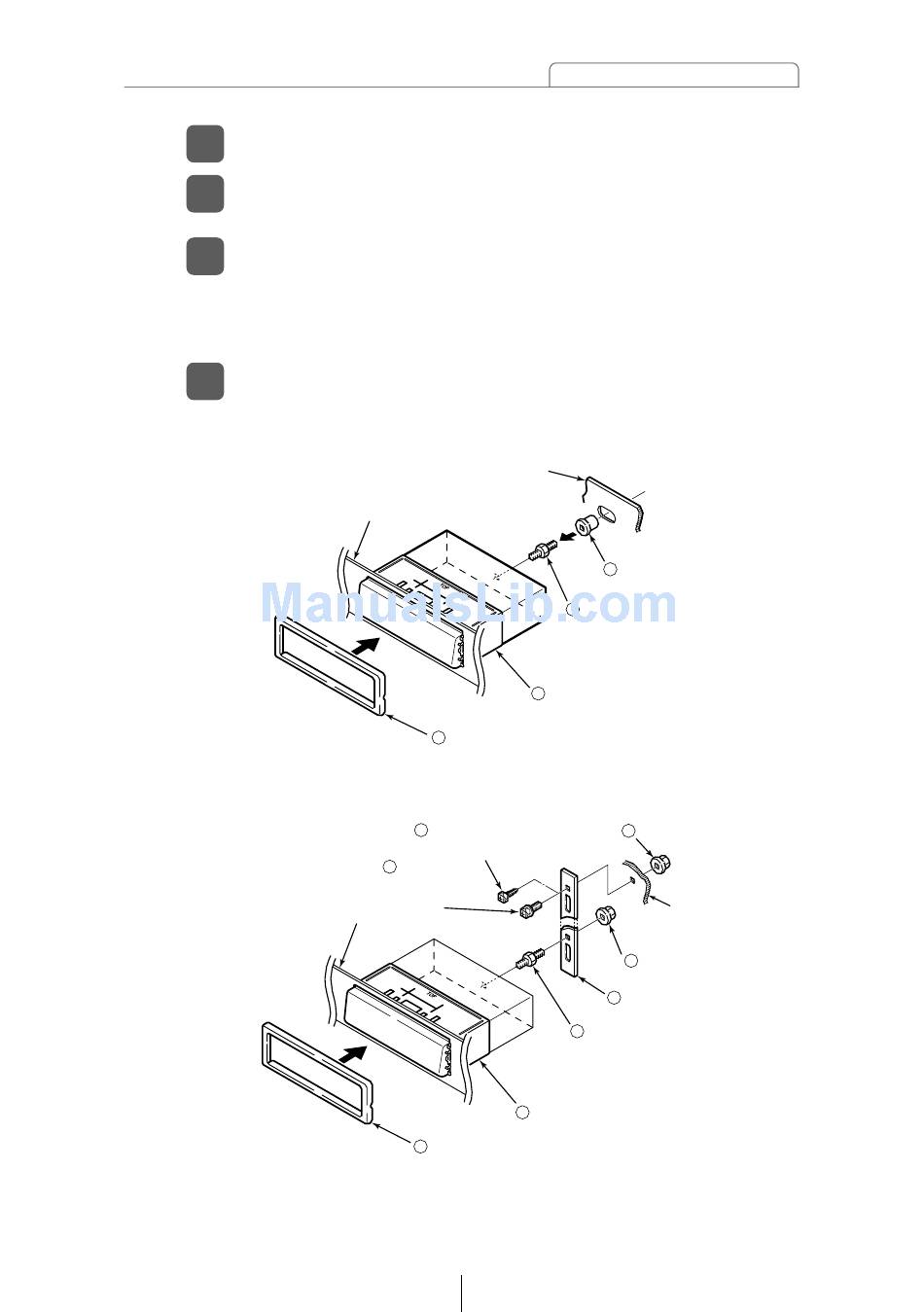

Mount the stud bolt to the main unit.
Insert the main unit into the mounting sleeve until it locks
5
in place.
Fasten the rear of the main unit using either method [A]
6
or [B].
Select method [A] or [B] to suit the interior configuration of the
vehicle.
7
Install the bezel on the main unit.
[A]
DASH BOARD
OR CONSOLE BOX
[B]
DASH BOARD
OR CONSOLE BOX
METAL OF
VEHICLE
2 MOUNTING SLEEVE
BEZEL
5
SELF TAPPING
7
SCREW (6 x 16mm)
HEX
11
HEAD
BOLT
(6 x 20mm)
2
MOUNTING SLEEVE
5
BEZEL
85
Mounting instruction
6 BUSHING
STUD BOLT
8
HEX NUT (6mm)
13
METAL OF
VEHICLE
HEX NUT (5mm)
12
REAR BRACKET
4
STUD BOLT
8
