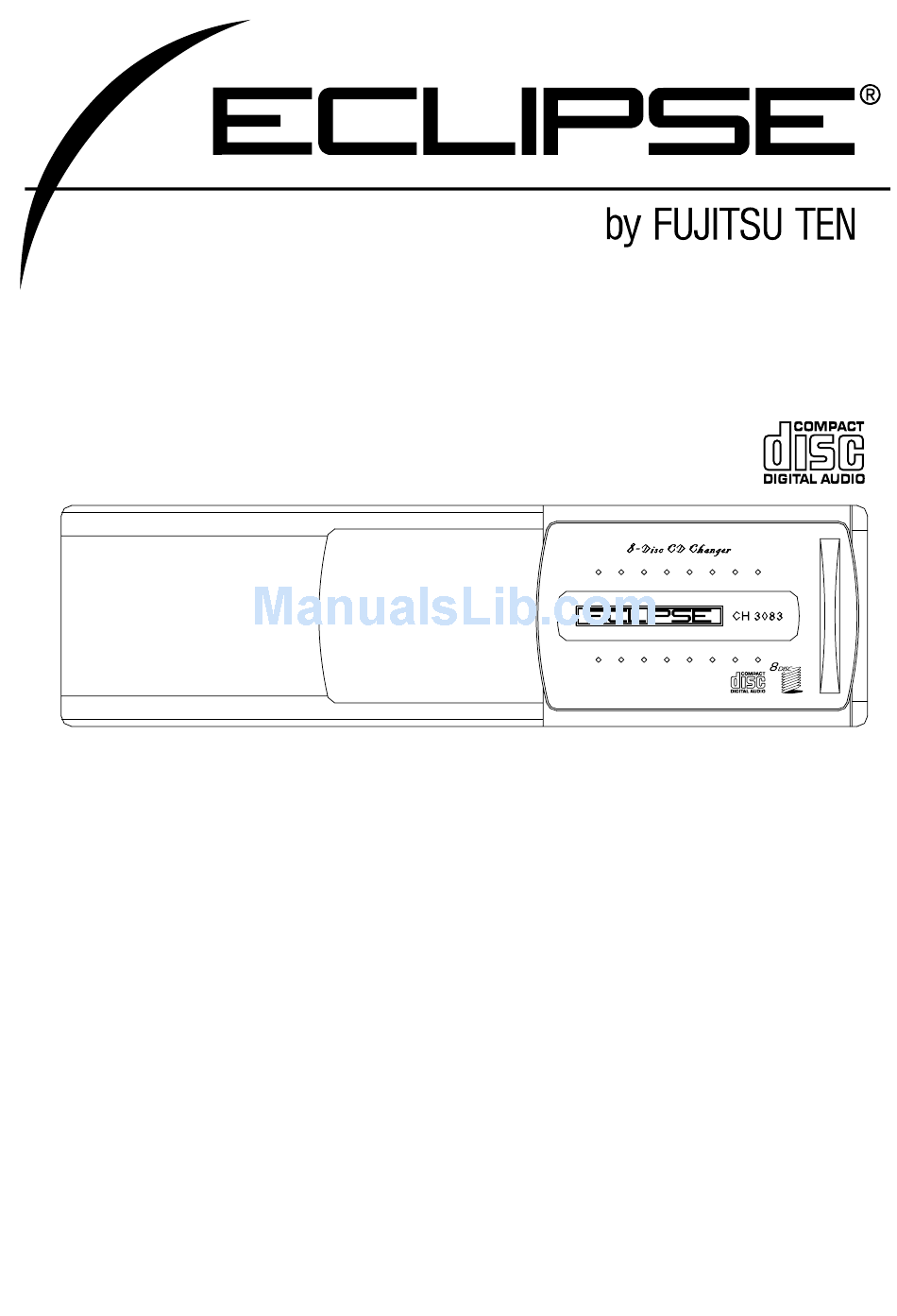

- Page 1 CH3083 MODEL 8 - DISC CD CHANGER OWNER'S MANUAL We appreciate your purchase of this product. Please read through this manual for correct operation. We suggest that after reading it you keep this manual in a safe place for future reference.
- Page 2 For your safety in using the CH3083 Warnings and caution signs, illustrated below, are posted throughout this manual as well as on the CH3083. They show safe and correct ways to handle the product so as to prevent personal injury to you and others and avoid damage to property. Before reading through the manual, take time to read through and learn the important information listed in this section.
- Page 3 Warning • Do not place the vinyl storage bag over a person. It may cause a serious accident or death by suffocation. • Do not disassemble or rebuild this product. Doing so may cause an accident, fire or electrical shock. •...
- Page 4 Warning • To prevent a short circuit from occuring, disconnect the battery's negative terminal before installing this product. Otherwise, an electric shock or injury may result • When using an existing nut and/or bolt from the vehicle to ground this product, do not use any that secure parts of the steering or braking systems.
- Page 5 Caution • Play the audio at a moderate volume level that permits you to hear sounds from outside the car. Driving without being able to hear outside sounds may result in an accident. • Keep foreign objects out of the disc slot. They may cause fire or electrical shock.
- Page 6 Caution • Do not install this product in locations where it cannot be fastened securely, such as places subject to frequent vibration. Otherwise, it may become dislodged and cause an accident or injury. • If this product is not connected properly, a short circuit, fire or accident may occur.
-
Page 7: Table Of Contents
Table of Contents Operating precautions ..........8 Notes on operation ................ 8 About compact discs ..............9 About cleaning a CD ..............11 Preparation ..............12 How to place the disc into the CD magazine ....... 12 How to place the CD magazine into the changer ......13 How to eject the CD magazine ............ -
Page 8: Operating Precautions
Operating precautions N Operating precautions Your CH3083 will perform well over a long period of time through correct handling and care. Notes on operation • For your safety, play only at volume levels that allow outside sounds to be heard. •... -
Page 9: About Compact Discs
Operating precautions About compact discs • The signal recorded on a compact disc is read by a laser beam, so nothing touches the disc surface. A scratch on the recorded surface or a badly warped disc may cause deteriorated sound quality or intermittent playback. - Page 10 Operating precautions About brand new CDs About CD accessories • You may notice that some brand • Do not use accessories new discs are rough around the (stabilizers, protective seals, laser center hole or outside edge. lens cleaners, etc.) sold for Remove the rough edges with “improving sound performance”...
-
Page 11: About Cleaning A Cd
Operating precautions About borrowed CDs About irregularly-shaped CDs • Do not use a CD with glue or • Specially-shaped CDs, like remnants of adhesive tape or heart-shaped or octagonal CDs, labels. They may cause the CD cannot be played. Do not to get stuck inside or damage attempt to play them, even with the deck. -
Page 12: Preparation
Preparation N Preparation When you listen to a CD with this CD auto changer, please proceed as follows before playing the CD. How to place the disc into the CD magazine Unloading knob • Slide a tray out of the CD magazine. -
Page 13: How To Place The Cd Magazine Into The Changer
Preparation How to place the CD magazine into the changer • Slide the CD changer door completely open to the left. • Load the magazine into the CD changer in the direction of the arrow on the top of the magazine. -
Page 14: How To Eject The Cd Magazine
Preparation How to eject the CD magazine • Slide the CD changer door completely open to the left. • press the eject button the changer to eject the magazine. Note: The CD magazine will not be ejected if the door is not completely open. -
Page 15: Specifications
Specifications Specifications System Compact Disc Digital Audio System Decoding (D/A) 1bit dual D/A converter Dynamic range 95dB or more(1kHz) S/N (IHF-A.1kHz) 95dB Harmonic distortion ratio 0.01% at 1kHz Wow/flutter Below measurable limits Nominal output level 2.0V RMS (0dB) Line voltage DC 13.2V (11 to 16V) Current consumption about 1.8A max. -
Page 16: Before Installation
Before installation Before installation Notes Be sure to disconnect the vehicle battery's negative terminal before installing CD changer unit. Components Item Q'ty CD changer unit Base bracket Side bracket Hex bolt (4 x 8mm) Hex nut (5mm) Self-adhesive pad Din cable (13P-13P) Interconnecting cable Disc magazine, 8 discs... -
Page 17: Preliminary Instruction
Before installation Preliminary instruction Before CD changer unit installation, be sure to remove CAUTION LABEL and TAPE. Notes In the event that the unit requires shipping, re-insert the shipping screws through the caution tag template to help prevent potential damage that may be caused by shipping. CAUTION LABEL CD CHANGER UNIT TAPE... -
Page 18: Daisy Chain Connection
Before installation Daisy chain connection Another CH3083 CD changer can be connected directly to your CH3083 CD changer in daisy chain. Both of these CD changers can be connected through the control unit. Notes This switch is set to "H" before shipment. Daisy Chain selection switch CD CHANGER... -
Page 19: Mounting Instruction
Mounting instruction Mounting instruction Horizonal instruction Make sure levers on each side of CD changer unit are in the "H" position. NOTE: This levers is set to "H" before shipment. CD CHANGER Fig.2... -
Page 20: Cd Changer Unit
Mounting instruction Secure the side brackets on each side of CD changer unit. HEX BOLTS [x4] (4x8mm) CD CHANGER UNIT SIDE BRACKETS [x2] Fig.3 Notes • Use the "LH" holes (2 places) at the left of the side bracket to install the unit. •... -
Page 21: Base Bracket
Mounting instruction Lift the carpet, and choose the mounting location by placing the base bracket in a safe location. Remove the papers, then press the base bracket on the floor panel securely. LIFT THE CARPET BASE BRACKET REMOVE THE PAPER SELF-ADHESIVE PAD Fig.4 Replace the carpet and cut x pattern thru carpet... - Page 22 Mounting instruction Install CD changer unit to the base bracket with 4 nuts provided. Place caps over the mounting bolts. NUTS [x4] (5mm) CAPS [x4] CD CHANGER BASE BRACKET Fig.7...
-
Page 23: Vertical Instruction
Mounting instruction Vertical instruction Make sure levers on each side of CD changer unit are in the "V" position. NOTE: This levers is set to "H" before shipment. CD CHANGER Fig.8... -
Page 24: Side Bracket
Mounting instruction Secure the side brackets on each side of CD changer unit. HEX BOLTS [x4] (4x8mm) CD CHANGER SIDE BRACKETS [x2] Fig.9 Notes • Use the "V" holes (2 places) of the side bracket to install the unit. COMMON TO RIGHT AND LEFT... -
Page 25: Self-Adhesive Pad
Mounting instruction Lift the carpet, and choose the mounting location by placing the base bracket in a safe location. Remove the papers, then press the base bracket on the floor panel securely. LIFT THE CARPET BASE BRACKET REMOVE THE PAPER SELF-ADHESIVE Fig.10 Replace the carpet and cut x pattern thru carpet... -
Page 26: Connections
Mounting instruction Install CD changer unit to the base bracket with 4 nuts provided. Place caps over the mounting bolts. NUTS [x4] (5mm) CAPS [x4] CD CHANGER BASE BRACKET Fig.13 Connections Caution To prevent electrical damage to audio unit, be sure to ground chassis of external power amplifier to car's body. -
Page 27: System
Mounting instruction System NOTE: Adjust the external amplifier's CD3413 input level. MAIN UNIT CH3083 CD CHANGER CD3413 POWER AMP. MAIN UNIT CH3083 POWER AMP. CD CHANGER CD3413 POWER AMP. MAIN UNIT CH3083 POWER AMP. CD CHANGER CH3083 CD CHANGER... - Page 28 Mounting instruction...
- Page 29 Mounting instruction...
- Page 30 Mounting instruction...
- Page 32 Please retain this booklet and write in the serial number of your CH3083 for identification. The serial number is labeled or stamped on the chassis. Serial No. DIVISION OF FUJITSU TEN CORP. OF AMERICA 090001-1433A700 19600 SOUTH VERMONT AVENUE, TORRANCE, CA 90502 0508(N.O.)
