Your new NEC AccuSync LCD monitor box* should contain the following:
• AccuSync LCD monitor with tilt base
• Audio Cable
• Power Cord
• Video Signal Cable (15-pin mini D-SUB male to 15-pin mini D-SUB male)
• Setup Manual
• Base Stand
Setup Manual Audio Cable
* Remember to save your original box and packing material to transport or ship the monitor.
*1 Type of power cord included will depend on the where the LCD monitor is to be shipped.

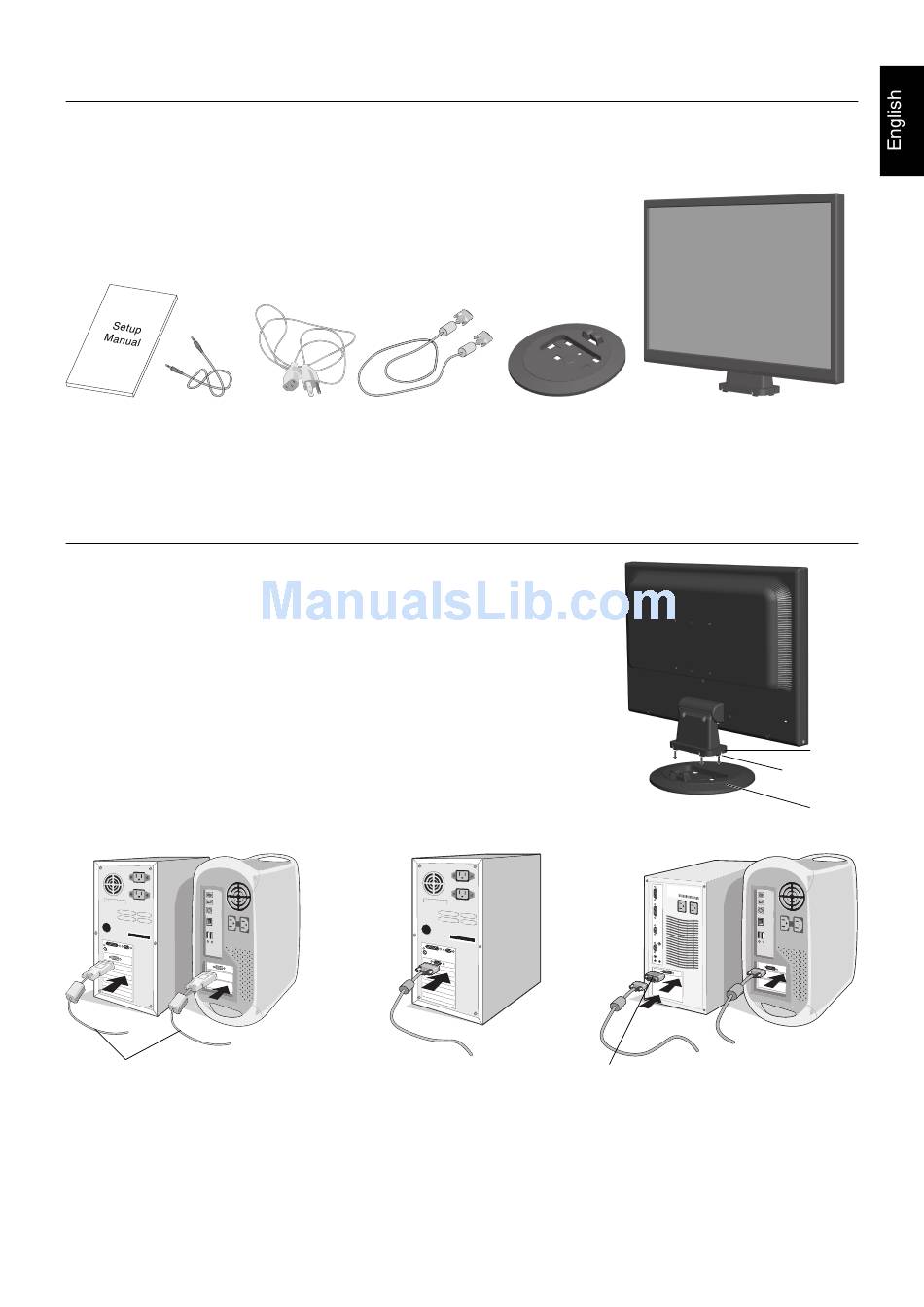

Quick Start

To attach the Base to the LCD Stand:
1. Attach the Base to the Stand. The locking tabs on the Stand should fit into the hole
on the Base (Figure S.1).
To attach the AccuSync LCD monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. For the PC or MAC with DVI digital output: Connect the DVI signal cable (not
included) to the connector of the display card in your system (Figure A.1).
Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to
the connector of the display card in your system (Figure A.2). Tighten all screws.
For the MAC: Connect the Macintosh cable adapter (not included) to the computer
and then attach the 15-pin mini D-SUB signal cable to the Macintosh cable adapter
(Figure A.3). Tighten all screws.
NOTE: Some Macintosh systems do not require a Macintosh cable adapter.
DVI Signal Cable (not included)
Figure A.1
Power Cord* 1 Video Signal Cable
Figure A.2
English-5
Base Stand AccuSync LCD monitor
(base stand not connected)
Figure S.1
Macintosh Cable Adapter
Figure A.3
(not included)
Stand
Locking Tabs
Base
