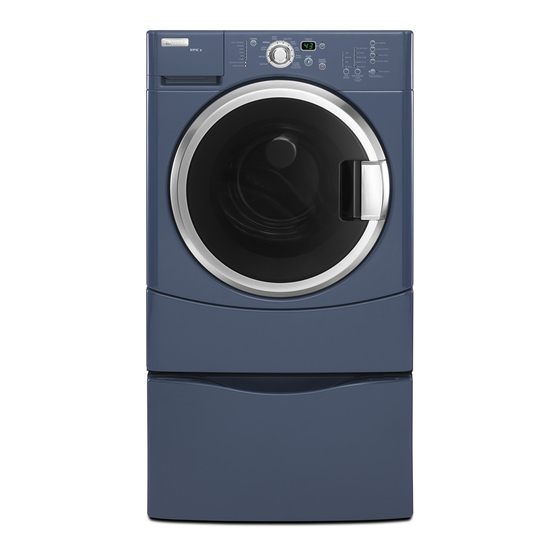

Maytag MHWZ600TK - 27-in Front Load Washer Parts List
Parts diagram
Hide thumbs
Also See for MHWZ600TK - 27-in Front Load Washer:
- Use and care manual (64 pages) ,
- Dimensions (1 page)
Subscribe to Our Youtube Channel
Related Manuals for Maytag MHWZ600TK - 27-in Front Load Washer
Summary of Contents for Maytag MHWZ600TK - 27-in Front Load Washer
-
Page 1: Top And Cabinet Parts
TOP AND CABINET PARTS AUTOMATIC WASHER For Models: MHWZ600TW02, MHWZ600TB02, MHWZ600TK02 (White/Chrome) (Black/Chrome) (Pacific Blue) 12−08 Printed in U.S.A. (drd)(bay) Part No. W10238196 Rev. A... - Page 2 TOP AND CABINET PARTS For Models: MHWZ600TW02, MHWZ600TB02, MHWZ600TK02 (White/Chrome) (Black/Chrome) (Pacific Blue) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 28 W10085220 Microswitch (2) 8518891 Rivet Literature Parts 8540728 Sleeve, 8540580 Panel, Rear W10151563 Use & Care Guide Cord Support (2) 11 W10189657 Brace, Transport W10207733 Tech Sheet...
- Page 3 DOOR AND LATCH PARTS For Models: MHWZ600TW02, MHWZ600TB02, MHWZ600TK02 (White/Chrome) (Black/Chrome) (Pacific Blue) Illus. Part DESCRIPTION 8540952 Bellow 8540108 Clamp, Bellow To Tub 8540772 Lock, Door 8540725 Screw 8540221 Hook, Door 6 W10117475 Handle, Door 7 W10112915 Trim Ring, Outer Door 8540107 Clamp, Bellow To Front Panel 8540115 Clamp, Support...
-
Page 4: Control Panel Parts
CONTROL PANEL PARTS For Models: MHWZ600TW02, MHWZ600TB02, MHWZ600TK02 (White/Chrome) (Black/Chrome) (Pacific Blue) Illus. Part DESCRIPTION Panel, Control W10117409 White W10117413 Black W10119012 Pacific Blue 2 W10119050 Knob, Control 3 W10117419 User Interface 8540558 Brace, Top Front 8540722 Channel, Water 6 W10217425 Microcomputer, Machine Control 7 W10015090 Screw, 8−18 X 5/8 8 W10201876 Harness, Wiring... -
Page 5: Dispenser Parts
DISPENSER PARTS For Models: MHWZ600TW02, MHWZ600TB02, MHWZ600TK02 (White/Chrome) (Black/Chrome) (Pacific Blue) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Handle, Drawer 8540751 Valve, Inlet 8540429 Siphon, W10118955 White Bleach/Softener 8540065 Hose, Valve W10118961 Black To Dispenser 8281276 Clamp, Hose W10119017 Pacific Blue 370450 Clamp, Hose 8540395 Connection, Lever... - Page 6 PUMP AND MOTOR PARTS For Models: MHWZ600TW02, MHWZ600TB02, MHWZ600TK02 (White/Chrome) (Black/Chrome) (Pacific Blue) Illus. Part DESCRIPTION 1 W10171902 Motor, Drive 8540134 Bolt, Motor 8540180 Air Trap 8540013 Ball 8540008 Clamp 8540012 Hose, Tub to Pump 370448 Clamp, Hose 356138 Clamp, Drain Hose 9 W10130913 Pump (Complete) 10 W10034820 Foot, Rubber (Slider)
- Page 7 TUB AND BASKET PARTS For Models: MHWZ600TW02, MHWZ600TB02, MHWZ600TK02 (White/Chrome) (Black/Chrome) (Pacific Blue) W10238196...
- Page 8 TUB AND BASKET PARTS For Models: MHWZ600TW02, MHWZ600TB02, MHWZ600TK02 (White/Chrome) (Black/Chrome) (Pacific Blue) Illus. Part DESCRIPTION 8533999 Nut, Pulley 8540088C Pulley 3 W10116215 Belt, Drive 4 W10151304 Counterweight, Front Lower 5 W10112169 Pipe, Ventilation 8540010 Clamp, Vent Hose 8540019 Hose, Exhaust 8 W10202944 Tub, Rear (Includes Items 10, 21 &...
-
Page 9: Optional Parts (Not Included)
OPTIONAL PARTS (NOT INCLUDED) For Models: MHWZ600TW02, MHWZ600TB02, MHWZ600TK02 (White/Chrome) (Black/Chrome) (Pacific Blue) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black 4396816 Pacific Blue PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White 285006 Black PAINT, BULK (1 qt.) 799344 White (Uncut) 786032 Black (Uncut) ACCESSORY PARTS...
