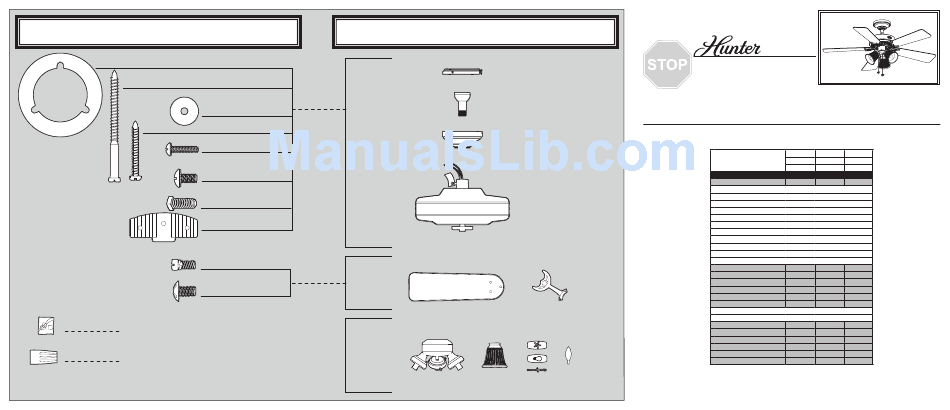

Hunter 21728 Parts Manual

Hardware
(Drawn to Scale)
x 1
x 2
x 4
x 2
x 3
x 3
x 1
x 4
x 11
x 16
Balancing
x 1
Kit
Wire
x 4
Connector
Low Profile
Washer
3" Wood Screw
Flat Washer
Hanger
Bracket
Assembly
1.5" Wood Screw
Locking Screw
Canopy Screw
Setscrew
Mounting Isolator
Screw, Blade
Iron Armature
Blade
Assembly
Screw, Blade
Assembly
Switch
Housing
Assembly
Fan Parts
(Not Drawn to Scale)
PARTS GUIDE
PARTS GUIDE
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Model # 21728

Parts List

Asm. Dwg. # 99104-01
Finish New Bronze
Item Name Qnty Part #
* Hanging System Kit 1 96759-30
Ceiling Plate
Canopy
Canopy Trim Ring
Hanger Ball / Downrod Assembly
Setscrew
Low Profile Washer
Canopy Screw
Wood Screw
Flat Washer
Mounting Isolator
* Screw, Low Profile
Switch Housing, Upper 1 85488-01
Light Kit Assembly 1 99108-03
Blade Iron Set 1 73649-05
Blade Set 1 G0253-01
Screw, Blade Iron Armature 11 63755-05
Hardware Kit 1 99104-00-860 99104-00-861
Blade Assembly Screw
Wire Connector
Balancing Kit 1 65666-01
Light bulb / Bulb 3 77646-04
Pull Chain Pendant 1 G0090-01
Pull Chain Pendant 1 G0091-01
Pull Chain 2 63756-24
Globe/Shade 3 77770-09
