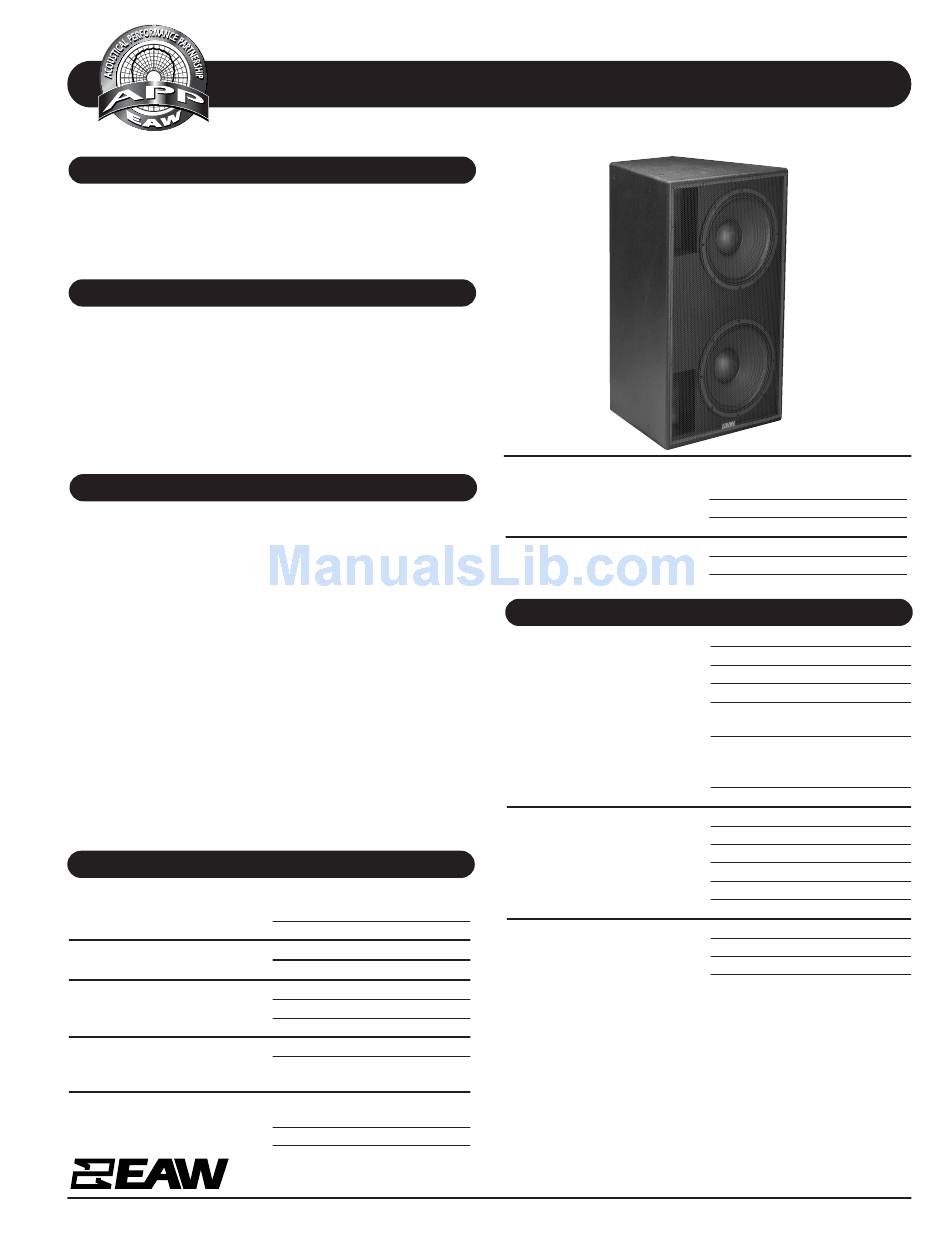

EAW MQ1215 Specifications

FEATURES
• Low frequency array module
• Two 15 inch woofers
• Engineered to array with MQ1300 MF/HF modules
• For permanent installation only
• Digital signal processor required for specified performance
DESCRIPTION

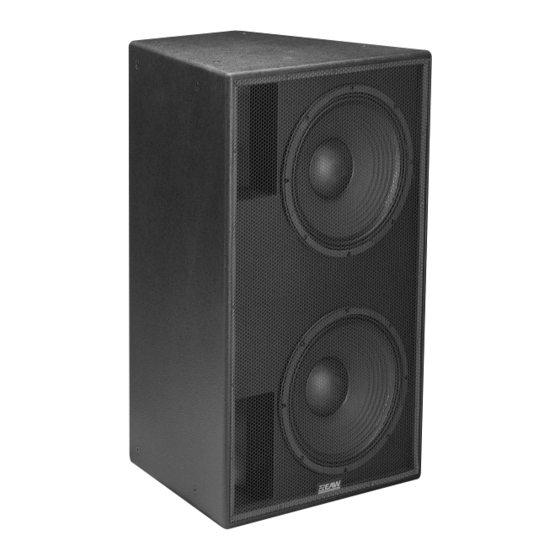

The MQ1215 uses two direct radiating 15 inch cones mounted
in a vented trapezoidal enclosure. Its frequency response has
been optimized for use as a dedicated low frequency system
when used with a companion MQ mid/high loudspeaker. Each
driver has its own connections on the input panel. This allows
the drivers to be connected in parallel to one amplifier chan-
nel or connected individually to separate amplifier channels.
The enclosure features a comprehensive system of 3/8-16
threaded suspension points.
APPLICATION
The MQ Series comprises matched sets of mid/high and low fre-
quency enclosures with complementary dimensions. This facil-
itates creating attractive arrays that provide high definition
sound within tightly controlled coverage areas. The MQ1215 is
designed to work with a complementary MQ1300 Series
mid/high loudspeaker to create a full range audio system. The
enclosure is vertically configured for arraying in horizontal
rows. Horizontal arrays are typically used in venues where the
array must address wide, fan-shaped audiences.
The most common array configuration is two MQ1364e's or
MQ1366e's separated by a single MQ1215. In such an array, the
MQ1364e's or MQ1366e's should be splayed 25° to either side
of the MQ2315, netting a splay angle of 50° between mid/high
modules. When arraying two MQ1394e's separated by a single
MQ1215, all enclosures should be tight-packed to achieve opti-
mal coverage. This configuration will net a splay angle of 80°
between mid/high modules. All splay angles reference the cen-
ter line of the enclosures.
PERFORMANCE
Frequency Response
±3 dB 50 Hz to 1.3 kHz
-10 dB 40 Hz
Axial Sensitivity (dB SPL, 1 W @ 1 m)
Impedance (Ohms)
LF1/LF2 8/8
LF Paralleled 4
Power Handling, AES Standard (Watts)
LF1/LF2 800/800
LF Paralleled 1600
Calculated Maximum Output (dB SPL)
LF Peak 138
LF Long Term 132
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
LF 100
508 234 6158
SPECIFICATIONS MQ1215
Nominal Coverage Angle/-6 dB points (degrees)
Recommended High-Pass Frequency
PHYSICAL
Enclosure Material Exterior grade Baltic birch plywood
Suspension Hardware 16x 3/8"-16 threaded mounting/
Dimensions
Trapezoid Angle 15° per side
Weights
Shipping Weight 140
Toll Free 800 992 5013 FAX 508 234 8251
MQ1215/0004850/001/2 pp
Horizontal 160
Vertical 100
24 dB/Octave 40 Hz
Configuration Dedicated LF module
LF Subsystem 2x 15 in woofers
Finish Wear resistant textured black paint
Connectors 4-contact barrier strip &
1x Neutrik NL4 Speakon
suspension points (4 each top,
bottom and sides)
Grille Powder coated perforated steel
inches
Height 40.00
Width (front) 24.00
Width (rear) 12.75
Depth 21.00
pounds
Net Weight 128
info@eaw.com
September 2002
millimeters
1016
610
324
533
kilograms
58.2
63.6
www.eaw.com
Printed in USA
