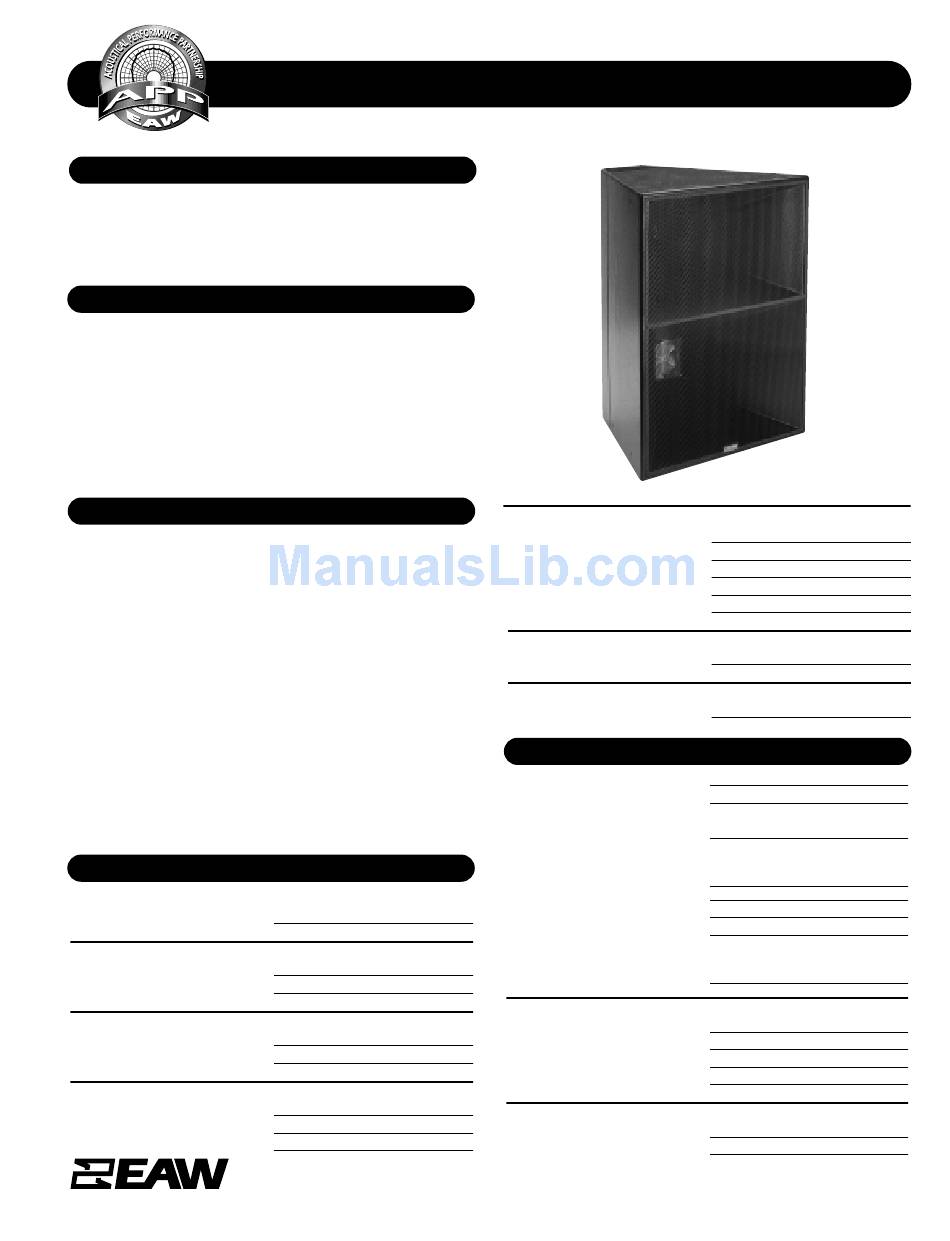

EAW MQ1366e Specifications

FEATURES
• Dedicated horn loaded MF/HF array module
• 10-in MF w/ Radial Phase Plug™; 2-in exit
Neodymium HF
• 60° x 60° beamwidth
• Vertically configured to create horizontal arrays
DESCRIPTION
A dedicated mid/high system in a vented trapezoidal enclo-
sure. Includes a horn-loaded 10-in MF cone with Radial Phase
Plug™ and a 2-in exit/3-in diaphragm Neodymium compres-
sion driver. The MF and HF horns provide a nominal 60° x 60°
beamwidth. An internal passive crossover with jumpers on the
input panel allows user selection of either bi-amplified or
passive operation. In either case digital signal processing is
required to achieve specified performance.
features a comprehensive system of 3/8"-16 threaded sus-
pension points.
APPLICATION
The MQ1366e employs a no-compromise design where the mid
and high frequency horns are truly large enough to provide
optimal pattern control throughout each passband. The horns
feature a rigid but well-damped construction using wood
veneer backed by structural foam. The MQ1366e has been
designed to work with a complementary MQ1300 Series LF
loudspeaker to create a full-range audio system, but may also
be used without a LF complement for voice-only applications.
The enclosure is vertically configured for arraying in horizon-
tal rows. Horizontal arrays are typically used in venues, such
as houses of worship, where the array must address wide, fan-
shaped audiences.
Application Usage: Install
Houses of Worship
Theatres
Performing Arts Centers
PERFORMANCE
Frequency Response (1 W @ 1m)
±3 dB
-10 dB
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
Passive
MF
HF
Impedance (Ohms)
Passive
MF
HF
Power Handling, AES Standard (Watts)
Passive
MF
HF
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
The enclosure
Auditoriums
Arenas
Stadiums
250 Hz to 12 kHz
200 Hz
107
109
107
8
8
8
325
400
150
508 234 6158 Toll Free 800 992 5013
SPECIFICATIONS MQ1366e
Calculated Maximum Output (dB SPL)
Passive Peak 138
MF Peak 141
HF Peak 135
Passive Long Term 132
MF Long Term 135
HF Long Term 129
Nominal Coverage Angle/-6 dB points (degrees)
Horizontal 60
Vertical 60
Recommended High-Pass Frequency
24 dB/Octave 200 Hz
PHYSICAL
Configuration Mid/High
Powering Passive or Bi-amplified
MF Subsystem 1x 10-in horn-loaded cone,
HF Subsystem 1x 2-in exit/3-in voice voil com-
Enclosure Materials Exterior grade Baltic birch plywood
Finish Wear resistant textured black paint
Connectors Terminal barrier strip
Suspension Hardware 16x 3/8"-16 threaded mounting
Grille Powder coated perforated steel
Dimensions
Height 40.00
Width (front) 32.00
Width (rear) 8.12
Depth 25.61
Trapezoid Angle 25° per side
Weights
Net Weight 148
Shipping Weight 156
FAX 508 234 8251
MQ1366e/0002679/2 pp April 2002
Radial Phase Plug™
pression driver on constant
directivity horn
suspension points (4 each top,
bottom and sides)
inches millimeters
1016
813
206
650
pounds kilograms
67.3
71.0
