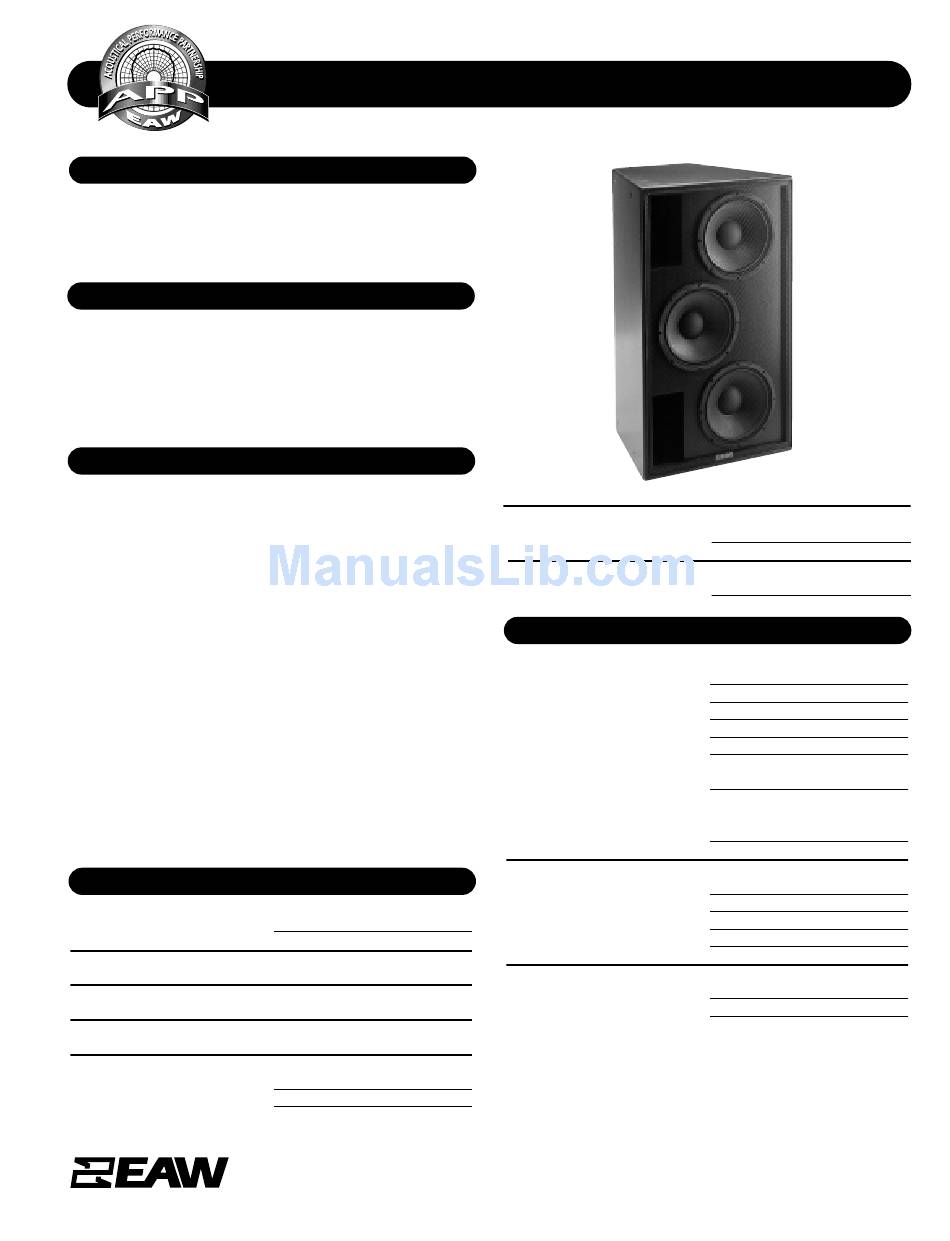

EAW MQ1312 Specifications

FEATURES
• Low frequency loudspeaker system
• Optimized for permanent installation only
• 3x direct radiating 12-in woofers
• Optimized to array with MQ1364, MQ1366 and
MQ1394
DESCRIPTION
The new MQ Series represents the next generation of perma-
nent installation loudspeaker systems. The Series comprises
matched sets of mid/high and low frequency enclosures that
enjoy complementary dimensions and trapeziod angles to
facilitate the creation of optimized-coverage arrays. The
MQ1312 uses three direct radiating 12-in woofer cones in an
optimally tuned, vented enclosure.
APPLICATION
The MQ1312 low frequency module works with the MQ1364,
MQ1366 and MQ1394 mid/high modules to create arrays for
use in a wide variety of permanently installed applications.
The most common array configuration is 2x MQ1364's or
MQ1366's separated by a single MQ1312. In such an array, a
certain amount of splay must be provided to achieve optimal
coverage.
When arraying 2x MQ1394's separated by a single MQ1312,
the modules should be tight packed to achieve optimal cov-
erage. This provides an excellent center channel array for
large, fan-shaped venues that use an L/C/R configuration.
All MQ Series enclosures feature a comprehensive system of
3/8"-16 threaded mounting points for maximum flexibility
when suspending arrays overhead.
Applications include:
Large Houses of Worship
Stadiums Theater
PERFORMANCE
Frequency Response (1 W @ 1m)
±3 dB
-10 dB
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
LF
Impedance (Ohms)
LF
Power Handling, AES Standard (Watts)
LF
Calculated Maximum Output (dB SPL)
LF Peak
LF Long Term
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
Arena
Performing Arts Center
50 Hz to 1.6 kHz
40 Hz
100
3x 8
1500
137.8
131.8
508 234 6158 Toll Free 800 992 5013
SPECIFICATIONS MQ1312
Nominal Coverage Angle/-6 dB points (degrees)
Recommended High-Pass Frequency
PHYSICAL
Configuration Dedicated low frequency loud
LF Subsystem 3x 12-in woofers
Cabinet Type (shape) Trapezoid
Enclosure Materials Baltic birch plywood
Finish Black polyurethane
Connectors 6-terminal barrier strip & 2x
Suspension Hardware (16) 3/8"-16 threaded mounting
Grille Powder coated perforated steel
Dimensions
Height 40
Width (front) 24
Width (rear) 12.75
Depth 21
Trapezoid Angle 30°
Weights
Net Weight 125
Shipping Weight 131
FAX 508 234 8251
MQ1312/888140/2 pp
Horizontal 160
Vertical 60
24 dB/Octave 40 Hz
speaker
Neutrik NL4 Speakon
suspension points (4 each top,
bottom and sides)
inches millimeters
1016
610
324
533
pounds kilograms
56.9
56.6
info@eaw.com www.eaw.com
4/1/00 Printed in USA
