Figure 2 illustrates the balanced system architecture of the ProLiant ML530 G2 server. At
the heart of the server architecture is the enterprise-class ServerWorks GC HE chipset,
which controls 3.2 GB/s of data transfer between the processor, memory, and
input/output (I/O) subsystems. The processor subsystem contains up to two 2.8-GHz Intel
Xeon Processors with 512-KB L2 cache and new features such as Intel NetBurst™
microarchitecture and Hyper-Threading technology. The memory subsystem features
200-MHz DDR SDRAM with 2-way memory interleaving that doubles the performance of
the PC133 SDRAM used in the first generation of the server. The I/O subsystem features
a quad-peer PCI-X architecture that boosts I/O peak bandwidth to four times that of
conventional PCI. The following sections describe the performance features of the three
major subsystems in more detail.

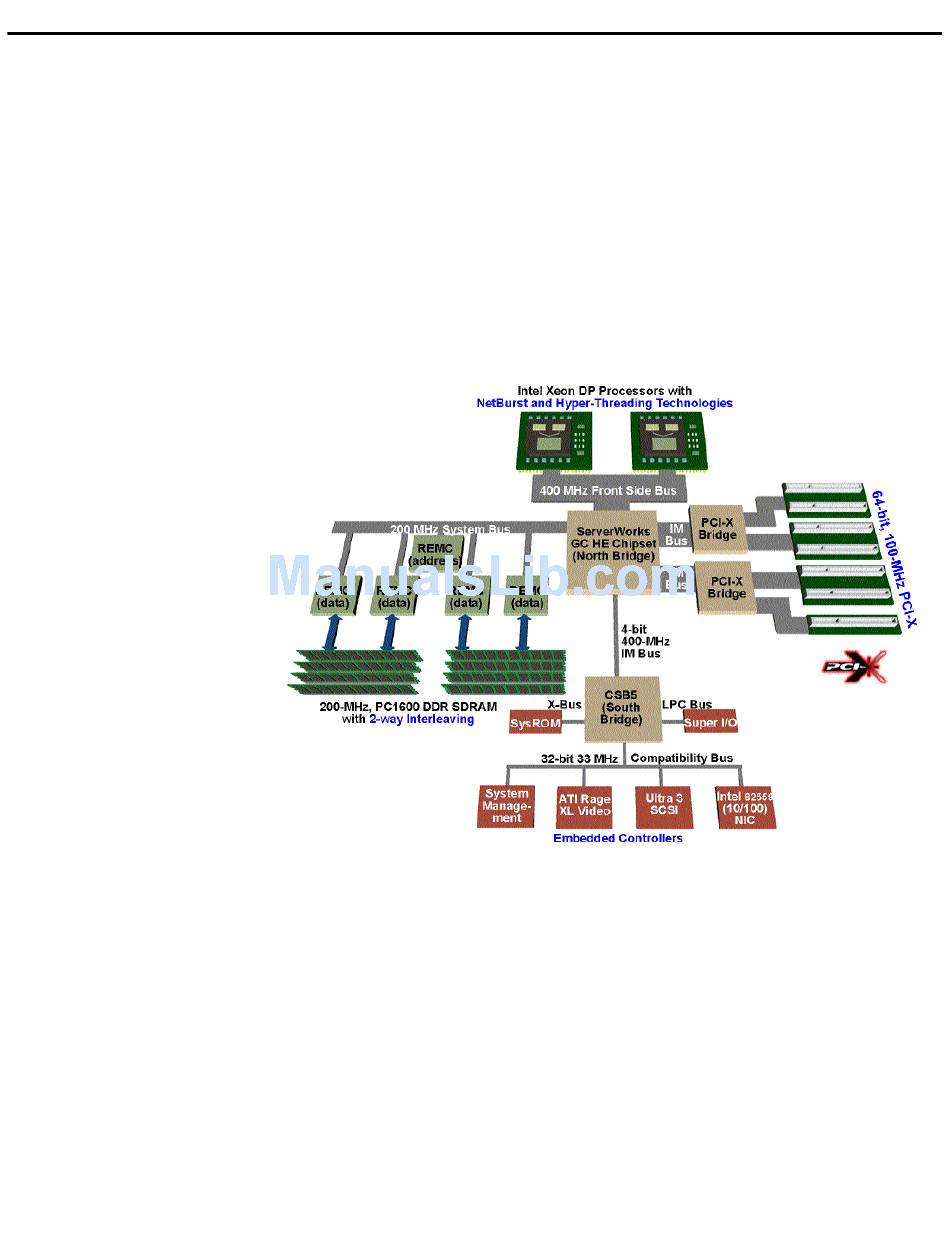

figure 2. ProLiant ML530 system architecture
In the ProLiant ML530 G2 server, the 2.8-GHz Intel Xeon (Prestonia) processor replaces
the 1-GHz Pentium® III Xeon processor that was used in the first generation of the server.
Tower and rack models of the ProLiant ML530 G2 server come with one or two 2.8-GHz
Intel Xeon processors and a 400-MHz front side bus (FSB). The higher core frequency is
made possible with the Intel NetBurst microarchitecture, which doubles the pipeline
depth in the processor.
Other new processor features include:
rapid execution engine — The two integer Arithmetic Logic Units (ALUs) in the
•
processor run at twice the core frequency, which increases performance by allowing
many integer instructions to execute in one half of the internal core clock period.
• execution trace cache — Reduced decoder latency speeds up instruction throughput,
which improves response times.
