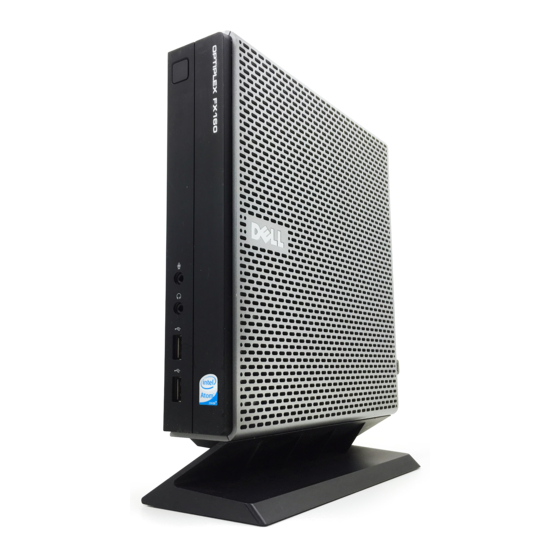

Dell OptiPlex 160 Setup And Features Information

Setup and features information tech sheet
Hide thumbs Also See for OptiPlex 160:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual See also: Service Manual, Manual
About Warning
WARNING:
Dell™ OptiPlex™ 160
Setup and Features Information
1
2
3
4
1
power button
3
USB 2.0 connectors (2)
5
headphone connector
7
diagnostic lights
9
hard drive activity indicator
October 2008
A WARNING indicates a potential for property damage, personal injury, or death.
2
side cover
4
stand
6
microphone connector
8
Wi-Fi indicator
10
network activity indicator
10
9
8
7
6
5
Model DC01T

Advertisement

loading

Related Manuals for Dell OptiPlex 160

Summary of Contents for Dell OptiPlex 160

  • Page 1 About Warning WARNING: A WARNING indicates a potential for property damage, personal injury, or death. Dell™ OptiPlex™ 160 Setup and Features Information power button side cover USB 2.0 connectors (2) stand headphone connector microphone connector diagnostic lights Wi-Fi indicator hard drive activity indicator...
  • Page 2 wireless antenna (optional) serial connector DVI connector VGA connector USB 2.0 connectors (4) PS/2 keyboard connector power connector PS/2 mouse connector network connector...

  • Page 3: Before Setting Up Your Computer

    Before you begin any of the procedures in this section, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance. NOTE: Some devices may not be included if you did not order them.
  • Page 4 Connect a USB device such as a keyboard or mouse. Connect the network cable. Connect the power cable.

  • Page 5: Specifications

    Press the power buttons on the monitor and the computer. Specifications NOTE: The following specifications are only those required by law to ship with your computer. For a complete and current listing of the specifications for your computer, go to support.dell.com. Video Type: Integrated video...
  • Page 6 Controls and Lights (continued) Hard drive activity light blue light — A blinking blue light indicates the computer is reading data from or writing data to the SATA hard drive or CD/DVD. Network activity light blue light — A solid blue light indicates network connectivity.
  • Page 7 Environmental Temperature: Operating 10° to 35° C (50° to 95° F) Storage –40° to 65° C (–40° to 149° F) Relative humidity 20% to 80% (noncondensing) Altitude: Operating –15.2 to 3048 m (–50 to 10,000 ft) Storage –15.2 to 10,668 m (–50 to 35,000 ft) Airborne contaminant level G2 or lower as defined by ISA-S71.04-1985...
  • Page 8 Information in this document is subject to change without notice. © 2008 Dell Inc. All rights reserved. Printed in the U.S.A. Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden. Trademarks used in this text: Dell, OptiPlex, and the DELL logo are trademarks of Dell Inc.
